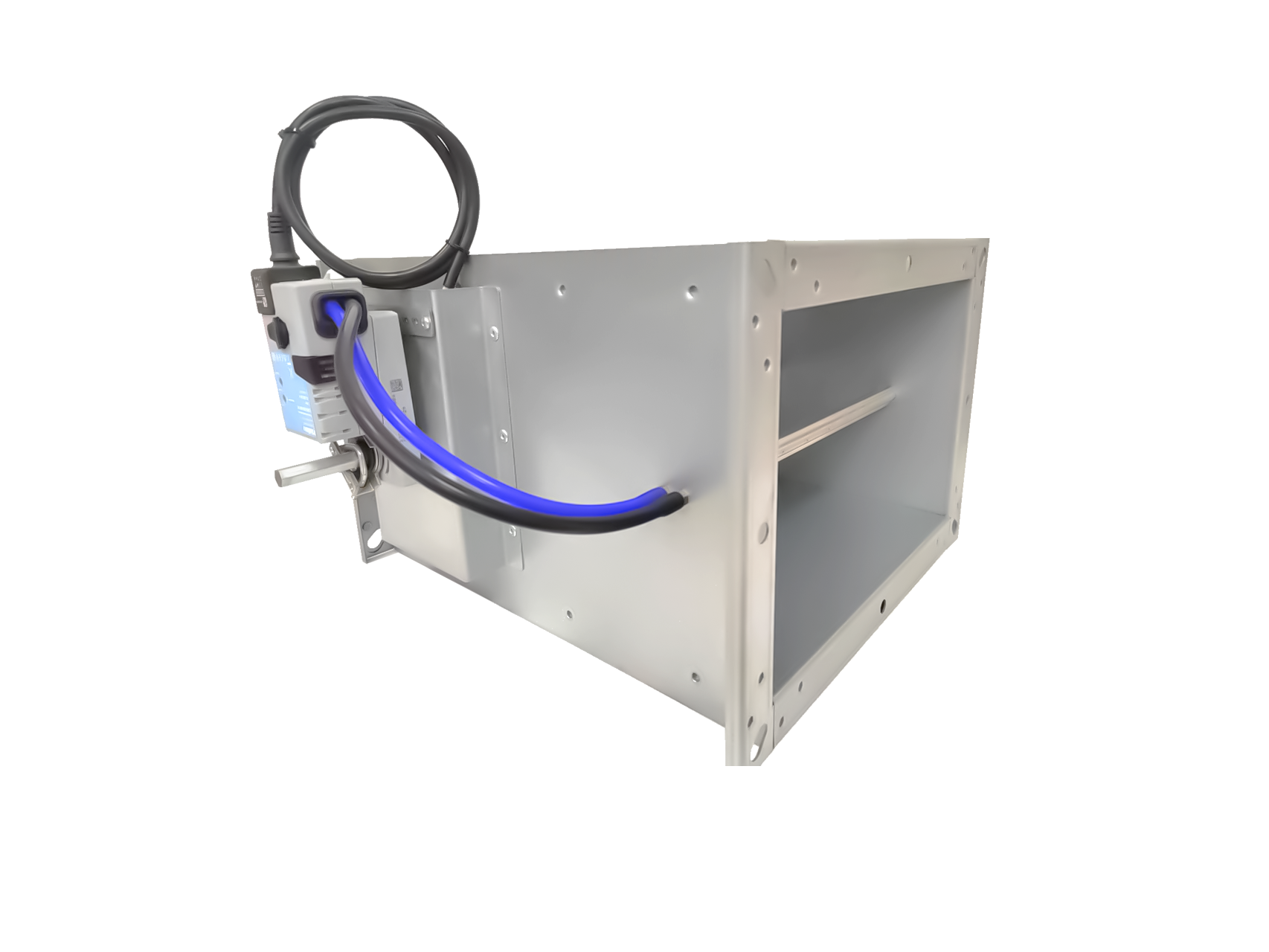

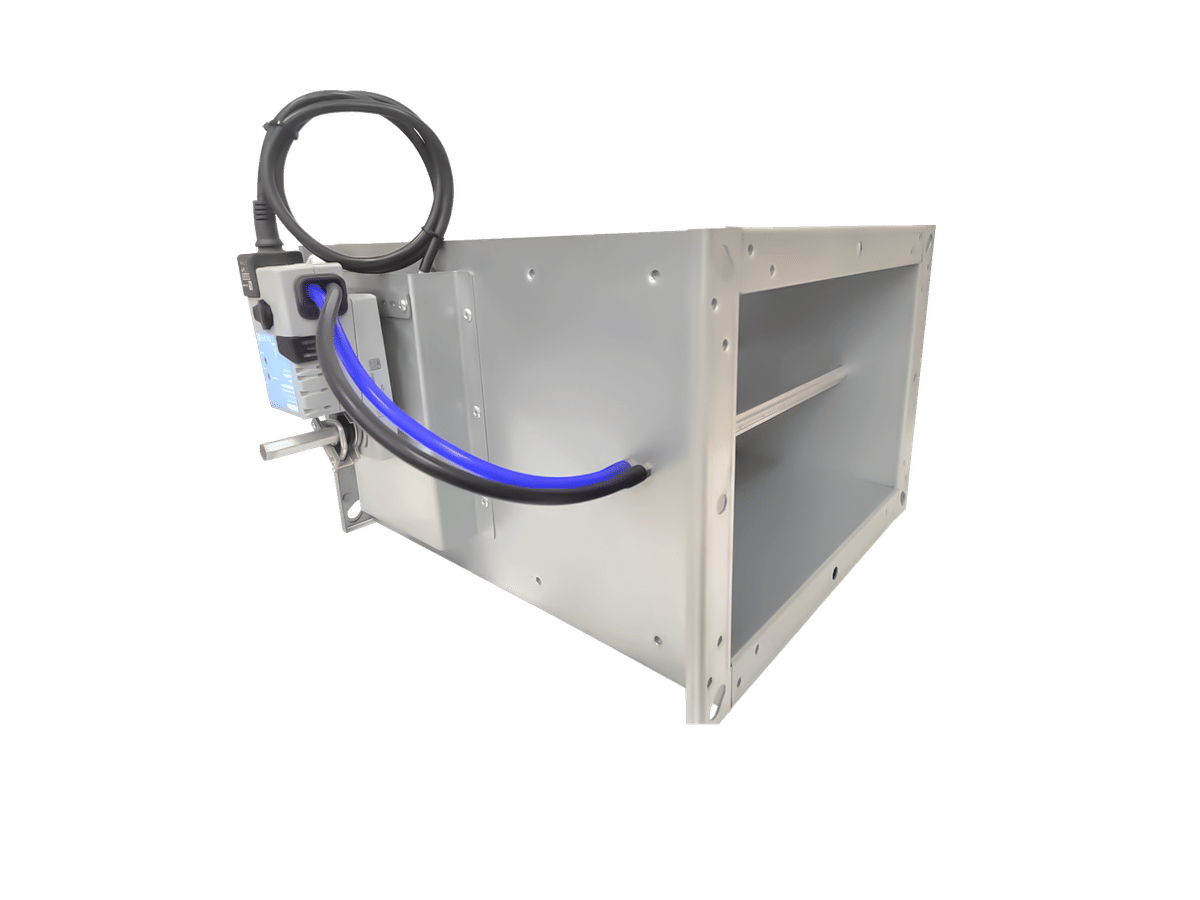

Halton UKV-C-方形变风量阀

概览Overview

• • 变风量阀通过选择不同的应用模式，实现风量或者压力控制。
    With different running modes, UKV can achieve airflow volume or pressure control.
  • 运行时与风管压力无关，系统闭环控制。出厂前已标定参数
    Duct pressure-independent running, system with close-cycle control, factory-calibration before delivery.
  • 阀体密封等级符合EN1751 B级要求
    Casing tightness fulfils EN 1751, class B requirements
  • 材质：镀锌钢板/可选择表面喷涂
    Material: Galvanized Steel /can choose surface painting
  • 适用于较大的风速范围：1m/s-11m/s, 通常推荐2m/s-8m/s的最佳运行区域
    Suitable for large air-speed scope:1m/s-11m/s, recommend optimum scope is 2m/s-8m/s.
  • 可选附件:压力控制模式/流量控制模式/Modbus通讯模块
    Optional accessories: pressure control mode/airflow control mode/Modbus communication

尺寸Dimensions

W= 宽度，风管连接尺寸Width, diameter of duct connection

100, 150, 200…1000, 1100, 1200 尺寸可定制 size can be customized

L=长度，风管连接尺寸 Length, diameter of duct connection

100, 150, 200…1000, 1100, 1200 尺寸可定制 size can be customized

安装Installation

产品安装 Product Installation

使用螺栓与风管连接，确保有足够的直风管段用于稳定气流，提高测量精度。推荐大于3倍等效直径,不小于0.5米。

Connection to duct with screw, ensure enough straight duct to stabilize airflow for measurement accuracy.

Recommend >3D (diameter or equivalent diameter, no less than 0.5m)

接线wiring

接线可以参照不同运行模式下对应的控制器手册。

Wiring can refer to concerned running modes controller manual
