Halton ZPC – 圆形消声器

概览Overview

• 适用环境温度-20℃-50℃。
  Suite for the environment temperature -20℃-50℃

• 适用于介质温度低于150℃并且无腐蚀，类似于空气的流体介质。
  Suite for the gas medium low than 150℃ without  causticity and property similar with natural air

• 适用于中低压场合。
  Suite for medium and low pressure condition.

• 外层镀锌钢板为8-1mm厚度，内层穿孔板为0.5mm, 开孔5mm，开孔率≥20%
  Out frame material is 0.8-1.0 thickness GI material. Inner perforated plate is 0.5mm thickness with perforated hole diameter 5mm and perforated rate ≥20%.

• 板式岩棉容重24KG/M3-48KG/M3。
  Rock wool with film weight 24KG/M3-48KG/M3

• 吸声材料厚度T=100mm,T=200mm可选择。标准消声有效长度
  Noise absorption material thickness T=100mm, T=200mm is an option, and standard effective length is 1000mm

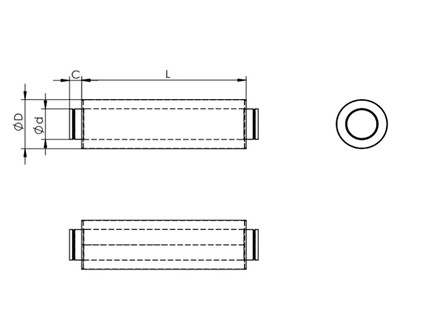

尺寸Dimension

安装Installation

消声器与风机之间应安装柔性接头，消声器后的风管不建议再穿过高噪音区，如无法避免，需要做消声器和风管外表面隔音处理。
消声器两端应设置独立的支吊架，如安装在室外，还需要做防雨处理。
在阀门、三通和弯头之后安装消声器时，应该增加一段不小于0.5米的风管用于稳流。两台消声器串接时，页建议增加稳流过段风管段。
Adding flexible joint between fan and silencer, suggest avoiding passing through high noise level area after the silence. If cannot, need to add surface insulation treatment.
Adding separate hanger & supporter at both side of silencer. If install outside, water-resistance need to be considered.
If damper& Tee joint & elbow joint before silencer, at least 0.5m duct should be considered to achieve steady airflow. When two pieces silencer serially connected, one additional duct need to be considered.
