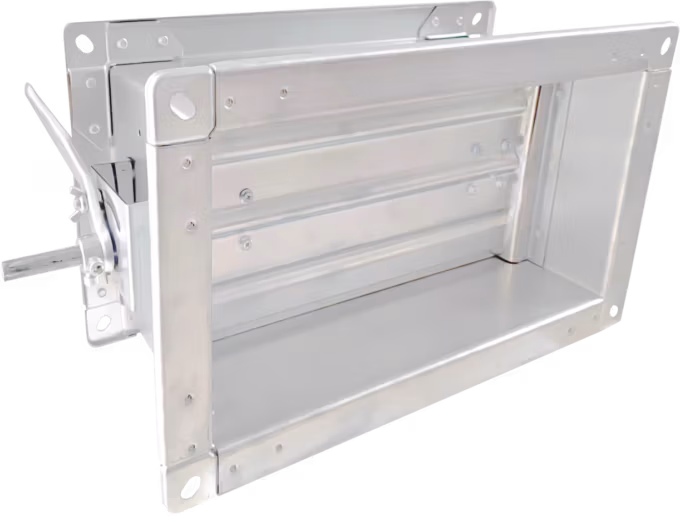

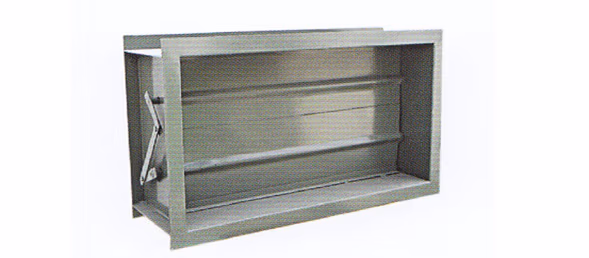

Halton UTK – Multi-blade damper

可用于各种方形模块尺寸。 根据 EN 1751 规定,关断密封性为 1 级。

概述

  • Shut-off, adjustment, balancing or control damper with opposed blade construction
  • Tightness in closed position fulfills EN 1751 class 1 requirements
  • Classification of casing leakage EN 1751 class B
  • Temperature operation range up to +100°C, optionally up to +200°C
  • Galvanised steel design

Product models and accessories

  • Model with stainless steel (AISI 316L) design
  • Model with insulated casing
  • Model with heat-proof design
  • Circular duct connections
  • Several actuator options

Dimensions

Models with rectangular connections

UTK_Dimensions

W H
 100, 200, …, 2400  100, 200, …, 2400



Models with circular connections (CT=D1 or CT=D2)

ØD WxH
100 150×150
125 150×150
160 200×200
200 200×200
250 250×250
315 300×300
400 400×400
500 500×500
630 600×600
710 800×800
800 800×800
1000 1000×1000
1250 1300X1300

Material

UTK_Material

No.  Part  Material  Note
1  Casing  Galvanised steel  Stainless steel (AISI 316)
also available
2  Blade
bearings
Alloy of polyamide and molybdenum suphide (plastic). Also available:
Stainless steel (AISI 304) (BM=SS)
Acid proof steel (AISI 316) (BM=AS)
3 Blade
gaskets
 Silicone (sandwich design). Acid proof steel (AISI 316L) also available
4 Blades Galvanised steel  Circular connections
5  Rectangular drive shaft
(15x15mm)
 Galvanised steel  In conjunction with
standard plastic bearings
(BM=ST)
Acid proof steel (AISI 316) also available (BM=ST)
6  Round drive shaft
(Ø15mm)
Acid proof steel  In conjunction with
AISI 316 or bronze bearings
(BM=AS/SS/BR)
7 Lever mechanism Galvanised steel Acid proof steel (AISI 316L) also available

Shaft types and dimensions

Depending on the choice of bearing material, the damper will be equipped with a round or square axle.

On Halton UTK/C dampers with standard bearings (BE=ST) , the damper will be equipped with a square 15×15 mm galvanised steel axle.

On heatproof design Halton UTK/C dampers, and on all dampers with AISI 316/304 or bronze JN5 bearings (BM=AS, BM=SS or BM=BR) a round Ø15mm AISI 316 stainless steel axle will be used.

Accessories

The product models MD=I and MD=J have a double sheet casing with mineral wool insulation. The insulation thickness is 20 mm.

The Halton UTK damper is available equipped with either manual adjustment or actuator operation.
The adjustment and control arrangement options are:

 Adjustment and  control options Code  Note
 Manual handle adjustment MO = MA
 Manual extension bar adjustment AC = BA  Handle extension arrangement
 Actuator operation MO=  See tables below

The damper actuator is selected from the list below according to the
operating voltage, control arrangement and the required torque of the damper.
The torque of the selected actuator can be higher than the required torque of the damper.

Actuator options

NM-models   Torque, damper size … 10 Nm A<1.2 m 2
Manual override operation,mechanical position limit

 Actuator type Code
MO
 Control arrangement Operating
voltage
Power
consumption
 NM24A C1  On-off, 3-point AC/DC 24 V 3,5 VA
 NM230A C2  On-off, 3-point AC 230 V 5,5 VA
 NM24A-SR C3  Control signal DC 0…10 V AC 24 V 4 VA

BF-models   Torque, damper size …18 Nm / 12 Nm (A<2.5 m2)
Spring return, manual operation, position limit

 Actuator type Code
MO
 Control arrangement Operating
voltage
Power
consumption
 BF24 E1 On-off, 2 auxiliary switches AC/DC 24 V 10 VA
 BF230 E3 On-off, 2 auxiliary switches AC 230 V 12.5 VA
 BF120 E7 On-off, 2 auxiliary switches AC 120 V 12.5 VA

SF-models   Torque, damper size … 20 Nm (A<4 m2)
Spring return, manual operation, position limit

 Actuator type Code
MO
 Control arrangement Operating
voltage
Power
consumption
SF24A A6 On-off AC/DC 24 V 7,5 VA
SF24A-S2 A7 On-off, 2 auxiliary switches AC/DC 24 V 7,5 VA
 SFA A8 On-off AC 24…240V / DC 24….125 V 18 VA
 SFA-S2 A9 On-off, 2 auxiliary switches AC 24…240V / DC 24….125 V 18 VA
 SF24A-SR A0 Control modulating DC 2…10 V,  Position feedback 2…10 V AC/DC 24 V 7 VA
SF24A-MP A11 Control modulating, communicative 2…10 V, Position feedback 2…10 V variable AC/DC 24 V 11 VA

SM-models   Torque, damper size … 18 Nm A<3.3 m2
Manual override operation, mechanical position limit

 Actuator type Code
MO
 Control arrangement Operating
voltage
Power
consumption
 SM24A A1  On-off, 3-point AC/DC 24 V 4 VA
 SM24A-S A2 On-off,
3-point,
1 auxiliary switch
AC/DC 24 V 4 VA
 SM230A A3 On-off, 3-point AC 230 V 6 VA
SM230A-S A4 On-off, 1-wire control, 3-point, 1 auxiliary switch AC 230 V 6 VA
 SM24A-SR A5 Control signal DC 2…10 V, Position feedback 2…10V AC/DC 24 V 4 VA
SM24A-MA M3 Control modulating 4…20 mA, Position feedback 2…10 V AC/DC 24 V 9 VA

GM-models   Torque, damper size …40 Nm (A<6 m2)
Manual override operation

 Actuator type Code
MO
 Control  arrangement Operating
voltage
Power
consumption
 GM24A G1  On-off,
3-point
AC/DC 24 V 6 VA
 GM230A G2  On-off,
3-point
AC 230 V 9 VA

Required torque for Halton UTK-damper actuator

Function

UTK_Function

The Halton UTK dampers are used to shut off, adjust or control airflow in ductwork in applications where damper leakage does not have significant importance.
In the closed position the Halton UTK damper leakage class is 1 in accordance with the EN1751 standard.
In the open position the blades are turned in the direction of flow and do not cause significant pressure loss.

Damper sizes conform with the international standards EN 1505, EN1506 and ISO 1707 for rectangular and circular ducts.

The maximum operation temperature of a standard damper is +100°C (for optional models +200°C).

Installation

Install the damper in the ductwork with the blades in horizontal or vertical position.
Fasten the damper in the ductwork using slip joints.

Optional models enable fastening the damper to duct flange by using bolts.
Drill holes in the damper flange if necessary (options L1 & L2).
Use a seal between the flanges in order to tighten the seam.

Fasten the circular connections by riveting or screwing.

Specification

The casing and blades are made from galvanised steel (or stainless steel AISI 316).
The blade gaskets are of silicon (or EPDM- rubber).
The drive shaft socket is of galvanised steel with self-lubricating slide bearings.
The bearing shall is from an alloy of polyamide and molybdenum sulphide (or stainless steel AISI 316 or stainless steel AISI 304 or bronze).

The damper is installed into rectangular ductwork in compliance with EN 1751, or in circular ducts D=100 … 1250 mm in accordance with EN 1751.

The damper meets the tightness requirements of EN 1751 class 1.
The casing of the damper meets the tightness requirements of EN 1751 class B.

The damper is suitable for either manual adjustment or actuator operation.

Order Code

UTK/S-W-H-D, CT-SF-MA-MD-BM-MO-AC-ZT

S = Type of duct connections
R    Rectangular connections
C    Circular connections

W = Width (mm)
100,+1,..,2400

H = Height (mm)
100,+1,..,2400

D = Connection size (for circlular model, C)
100, 125, 160, 200, 250, 315, 400, 500, 630, 710, 800, 1000, 1250

Other options and accessories

CT = Type of circular connection
D2    2 circular connections
D1    1 circular connection

SF = Flange option
NA    Slip joints
L1     Slip joints + flange connection
L2     Flange connection, both sides
R2    Flange connection, both sides with holes

MA = Material
CS     Steel
AS     Stainless steel (EN 1.4404/AISI 316L)

MD = Model
N       Standard
H       Heat-proof
I         Insulated
J        Heat-proof and insulated

BM = Bearing material
ST     Plastic
AS     Stainless steel (AISI 316)
SS     Stainless steel (AISI 304)
BR     Bronze (JN5)

MO = Actuator type
NA     Not assigned
MA     Manual handle
E1      BF24 (no fuse), 24V, 18 Nm
E3      BF230 (no fuse), 230V, 18 Nm
E7      BF120 (no fuse), 120V, 18 Nm
P0     Pneumatic, Rot.AT101
A1     SM24A (on-off), 24V, 20 Nm
A2     SM24A-S (on-off), 24V, 20 Nm
A3     SM230A (on-off), 230V, 20 Nm
A4     SM230A-S (on-off), 230V, 20 Nm
A5     SM24A-SR (modulating), 24V, 20 Nm
M3    SM24A-MA (modulating), 24V, 20 Nm
A6     SF24A (on-off), 24V, 20 Nm
A7     SF24A-S2 (on-off), 24V, 20 Nm
A8     SFA (on-off), 24-230V, 20 Nm
A9     SFA-S2 (on-off), 24-230V, 20 Nm
A0     SF24A-SR (modulating), 24V, 20 Nm
A11   SF24A-MP (modulating), 24V, 20 Nm
C1     NM24A (on-off), 24V, 10 Nm
C2     NM230A (on-off), 230V, 10 Nm
C3     NM24A-SR (modulating), 24V, 10 Nm
G1    GM24A (on-off), 24V, 40 Nm
G2    GM230A (on-off), 230V, 40 Nm

AC = Accessories
BA    Bar adjustment
S4     S2A Auxiliary switch
L1     Limit switch, 1 pc (IP65)
L2     Limit switch, 2 pcs (IP65)
AR    Position indication arrow

ZT  = Tailored product
N       No
Y       Yes (ETO)

Code example

UTT/R-100-100, SF=NA, MA=CS, MD=N, BM=ST, MO=MA, ZT=N
