Halton TSB – Swirl diffuser
Draught free square diffuser for ceiling installation.
- Supply air jet velocity is effectively reduced due to high mixing effect
- Suited for installation in a modular 600×600 mm suspended ceiling
Overview
- Horizontal air supply
- Suitable for supply and exhaust
- Ceiling integration installation
- Supply air jet velocity is effectively reduced due to high mixing effect
- Suited for installation in a modular 600×600 mm suspended ceiling
- Circular duct connection with rubber gasket
- Openable front panel enables cleaning of the terminal unit and supply ductwork.
Accessories
- Balancing plenum with measurement and adjustment functions
Quick selection

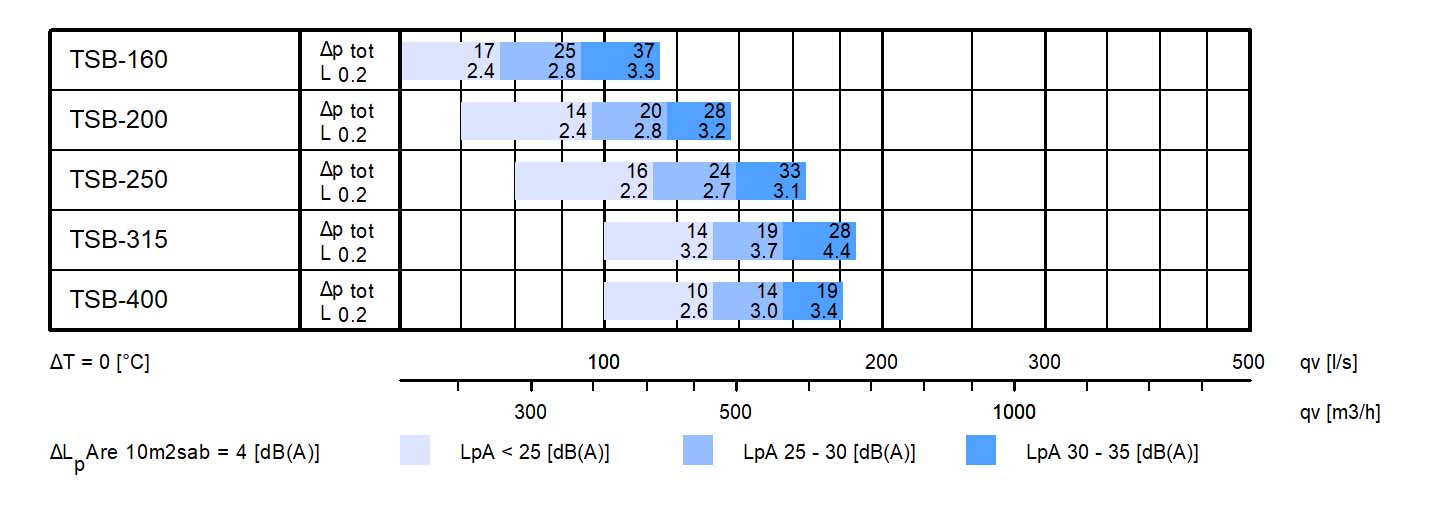

Fig.1. Halton TSB

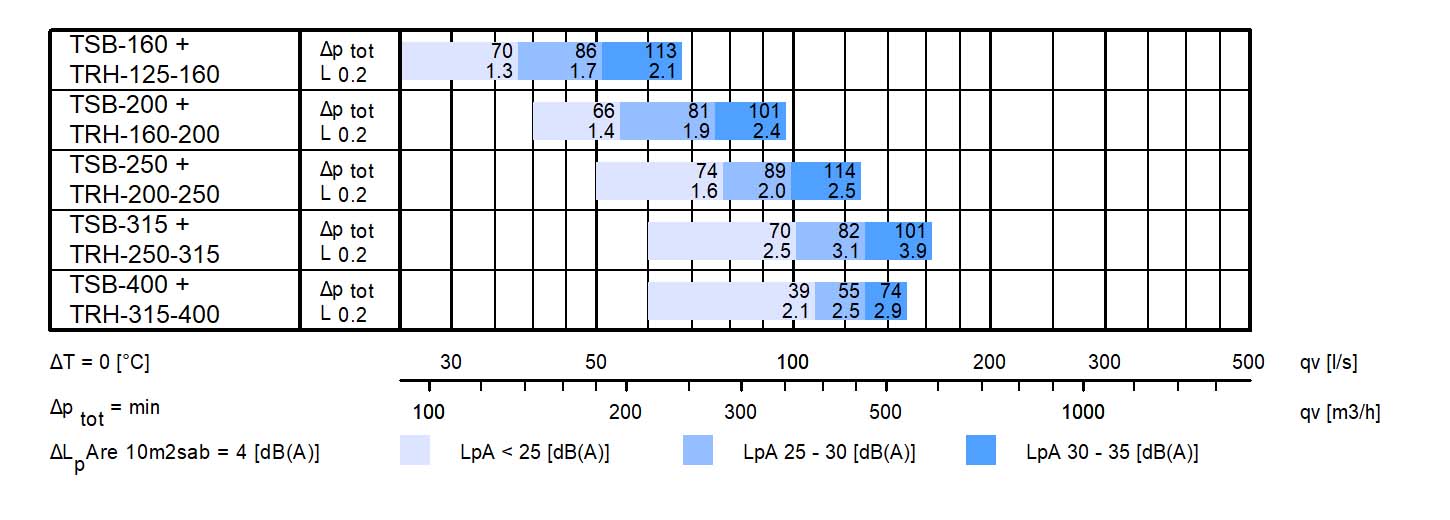

Fig.2. Halton TSB with Halton TRH plenum
Dimensions
| NS | ØD |
| 160 | 159 |
| 200 | 199 |
| 250 | 249 |
| 315 | 314 |
| 400 | 399 |
Material
| Part | Material | Note |
| Casing | Galvanised steel | |
| Front panel | Steel | |
| Coupling sleeve | Galvanised steel | |
| Duct gasket | Rubber compound | |
| Finishing | Epoxy-painted / White (RAL 9003) |
Special colours available |
Accessories
| Accessory | Code | Description |
| Balancing plenum | TRI | For balancing, equalising the airflow and attenuating the duct noise |
| Balancing plenum | TRH | For balancing, equalising the airflow and attenuating the duct noise |
Function
Horizontal radial swirl jet air is supplied into the space through the profiled spiral blades of the diffuser. Supply air jet velocity is effectively reduced due to the high mixing effect.
Halton TSB can also be used as an exhaust unit.
Installation

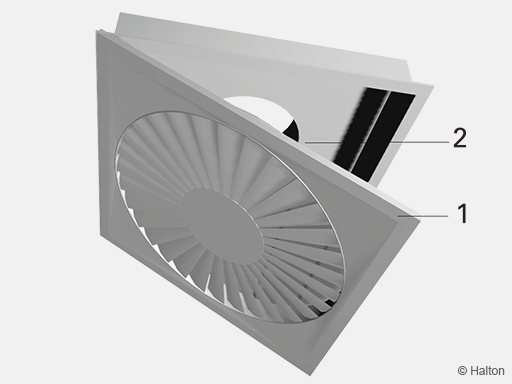

Code Description
1. Front panel
2. Casing
The Halton TSB diffuser is connected either directly to the duct by screwing or by riveting or alternatively to the Halton TRI balancing plenum.
Detach the front panel by pulling it gently down and let it hang by its hinges.
Direct the flow pattern in the desired directions by installing deflector panel on the perforated front panel.
Reattach the front panel by swinging up and pushing until the springs lock.
The recommended minimum safety distance upstream of the diffuser is 3xD.
Installation with plenum
The collar of the Halton TRI plenum can be installed either internally in the plenum or externally onto the bottom of the plenum. The height of the unit is presented in the table below for the external installation. When the collar sleeve is installed internally, the total height H is reduced by 60 mm.
Note: The technical performance for the combination of supply air diffuser and plenum is presented separately for the two different installations.
| TSB,(ØD) | ØD1 | TRI | H |
| 160-600 | 160 | TRI-160-160 | 383 – 433 |
| 200-600 | 160 | TRI-160-200 | 383 – 433 |
| 200-600 | 200 | TRI-200-200 | 433 – 483 |
| 250-600 | 200 | TRI-200-250 | 433 – 483 |
| 250-600 | 250 | TRI-250-250 | 497 – 547 |
| 315-600 | 250 | TRI-250-315 | 497 – 547 |
| 315-600 | 315 | TRI-315-315 | 543 – 593 |
| 400-600 | 250 | TRI-250-400 | 497 – 547 |
| 400-600 | 315 | TRI-315-400 | 543 – 593 |
Adjustment
The Halton TSB itself has no means for airflow adjustment.
In order to enable airflow adjustment and measurement of airflow rate it is recommended that the diffuser be connected to the Halton TRI balancing plenum.
The supply flow rate is determined by using the MSM measurement and adjustment module.
Open the front panel and pass the tubes and control spindle through the diffuser front panel. Replace the front panel.
Measure the differential pressure using a manometer. The flow rate is calculated using the formula below.
Adjust the airflow rate by rotating the control spindle until the desired setting is achieved.
Lock the damper position with a screw.
Replace the tubes and spindle in the plenum and replace the diffuser front panel.
The k- factor for installations with different safety distances (D= duct diameter)
| TRI | > 8 x D | min 3 x D |
| 160 | 16.9 | 21.9 |
| 200 | 28.3 | 31.0 |
| 250 | 47.9 | 51.5 |
| 315 | 78.6 | – |
Servicing
Detach the front panel of the diffuser by gently pulling it down and let it hang by its hinges.
Wipe the parts with a damp cloth.
Push the front panel back into place so that the springs lock.
Option with balancing plenum
Remove the measurement and adjustment module by gently pulling out the shaft (NB. not the control spindle or measurement tubes!).
Wipe the parts with a damp cloth instead of immersing in water.
Remount the measurement and adjustment module by pushing in the shaft until the module meets the stopper.
Push the front panel back into place so that the springs lock.
Specification
The swirl diffuser is made of epoxy-painted steel with a white (RAL 9003) colour.
The swirl diffuser comprises fixed spiral blades to ensure high mixing rate.
Alternative 1; no balancing plenum
The diffuser has a galvanised steel casing with a spigot with integral gasket for connection to the circular duct.
The diffuser has a detachable perforated front panel to provide access to the duct.
Alternative 2; option with balancing plenum
The diffuser is connected to a balancing plenum equipped with a measurement and adjustment module.
The diffuser has a detachable perforated front panel to provide access to the measurement and adjustment module in the plenum.
The balancing plenum has a spigot with integral gasket for airtight duct connection.
The balancing plenum comprises sound attenuation material made of polyester fibre with a washable surface.
Order Code
TSB-D; CO-ZT
D = Connection size
160, 200, 250, 315, 400
Other Options and Accessories
CO = Colour
SW White (RAL 9003)
X Special colour
ZT = Tailored product
N No
Y Yes (ETO)
Sub products
TRI Plenum (Diffusers)
Code example
TSB-160, CO=SW, ZT=N
