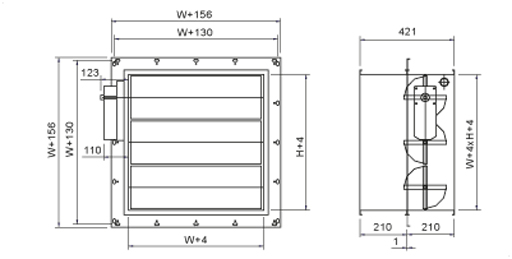

Dimensions

Rectangulärä anslutningar

H/W 200 – 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500
200 X H H H H H H H H H H H H H H
300 X H H H H H H H H H H H H H H
350 X H H H H H H H H H H H H H H
400 X H H H H H H H H H H H H H H
450 X H H H H H H H H H H H H H H
500 X H H H H H H H H H H H H H H
550 X H H H H H H H H H H H H H H
600 X H H H H H H H H H H H H H H
650 X H H H H H H H H H H H H H H
700 X H H H H H H H H H H H H H H
750 X H H H H H H H H H H H H H H
800 X H H H H H H H H H H H H H H
850 V
900 V
950 V
1000 V
1050 V
1100 V
1150 V
1200 V
1250 V
1300 V
1350 V
1400 V
1450 V
1500 V

V     Enbart vertikala blad
H     Enbart horisontella blad
X      Både horisontella och vertikala blad tillåts


Runda anslutningar

D H W
630 600 600
800 800 800
