TDM 圆形顶棚散流器

浩盾 TDM 是一款具有无孔前挡板的圆形顶棚散流器,适用于圆形管道接口。



概述

  • 可水平放散性供风,同时也可用于排气
  • With solid front panel
  • 可安装在管道、静压箱或布风器上
  • 前挡板可拆卸,便于清洁
  • 带密封圈的圆形管道接口
  • 可安装在浩盾布风器上
  • 浩盾手动布风器可选配控制旋钮

Dimensions

TDM general drawings

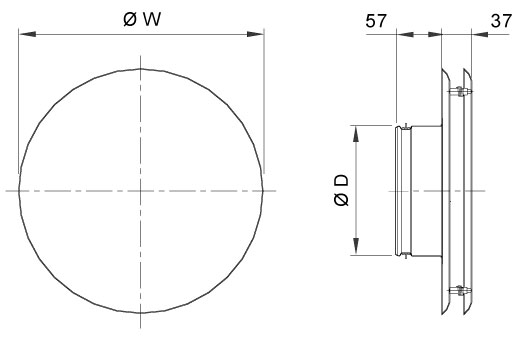

TDM/N



NS W ØD Weight
160 300 159 1,6 KG
200 450 199 2,8 KG
250 450 249 2,8 KG

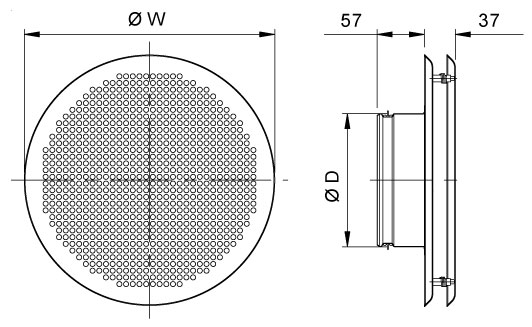

TDM/P



NS W ØD Weight
160 300 159 1,4 KG
200 450 199 2,6 KG
250 450 249 2,6 KG

Material and Finishing

PART MATERIAL NOTE
Upper plate Steel
Front panel Steel TDM/N solid
TDM/P perforated
Coupling sleeve Galvanized steel Gasket
Duct gasket Rubber compound
Finishing Painted /
White RAL 9010
Special colours available on request

Product Models and Accessories

Product models

TDM/N  Solid front panel (without perforation)
TDM/P  Perforated front panel

ACCESSORY  CODE  DESCRIPTION
Control knob K Control knob for Halton manual cabin unit



Function

TDM/N

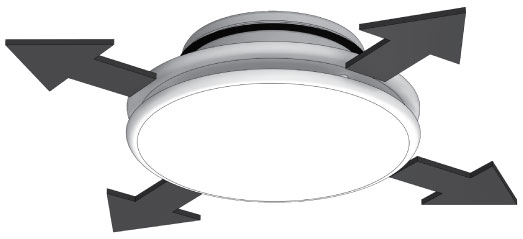

Air is supplied horizontally into the space through the side slots of the diffuser and induces the room air in the vicinity of the diffuser. The recommended maximum air temperature difference between supply and room air is 10 °C degrees.

TDM/P

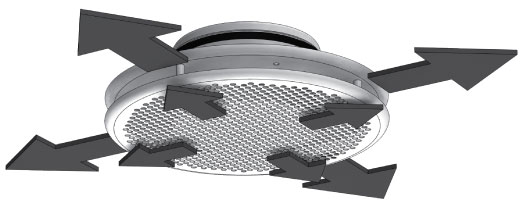

Air is supplied horizontally into the space through the side slots and perforated front panel of the diffuser and mixes with room air in the vicinity of the diffuser. The air jet supplied horizontally through the side slots induces room air and mixed supply air.  The recommended maximum air temperature difference between supply and room air is 10 °C degrees.

Installation

The diffuser can be connected to the Halton cabin unit by using duct between cabin unit outlet and diffuser in order to reach the false ceiling level. Diffuser can be also connected directly in cabin unit outlet. In this case cabin unit outlet has to be female connection. Diffuser can as well be connected directly to the duct or plenum box.

Servicing

Open the front panel of the diffuser and clean the parts by wiping with a damp cloth. Push the front panel back into place so that the springs lock.

Product Code
