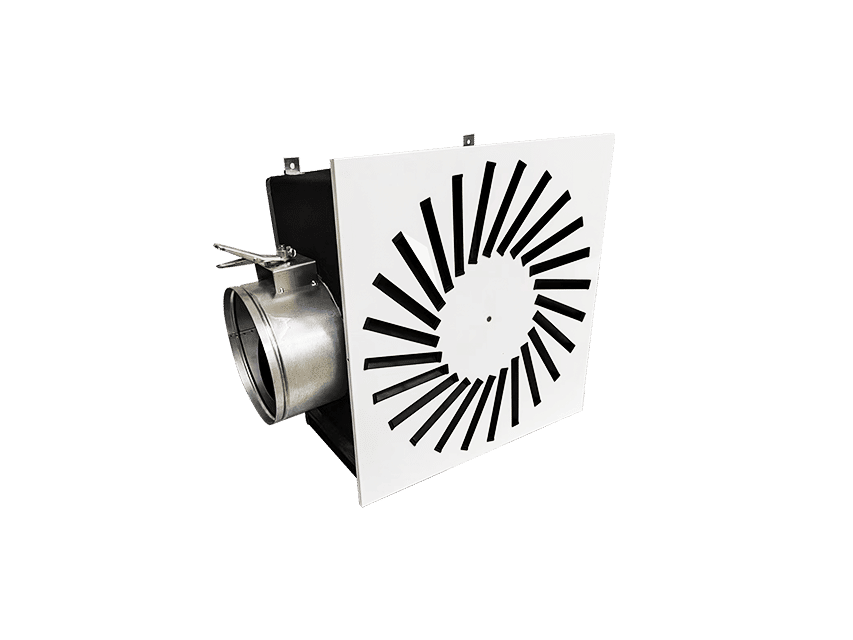

Halton JTH-C 方形旋流风口
与静压箱使用可拆卸方式连接，静压箱具有调节阀控制气流。
Removable connection with plenum, add manual damper for plenum to adjust airflow.
概览Overview
- 与静压箱使用可拆卸方式连接，静压箱具有调节阀控制气流。
Removable connection with plenum, add manual damper for plenum to adjust airflow.
- 使用了旋流结构，可以使得送风和周围空气高效地混合。
With swirl structure, can achieve high mixing effect with room airflow.
- 高效的旋流效果，更适用于送风/房间温度差异较大的应用场合。
With high mixing efficiency, perfectly suitable for big temperature difference of supply /room airflow.
- 表面处理：粉末喷涂
Surface treatment: Power painting
- 可选附件:调节阀
Optional accessories: manual adjustment damper
尺寸Dimensions
| 规格Size W | W1 | 可选静压箱Plenum option | 静压箱进风口Plenum inlet size |
| 300×300 | 295 | (W-50) x (W-50) x 300 | Φ100 |
| 400×400 | 395 | (W-50) x (W-50) x 300 | Φ150 |
| 500×500 | 495 | (W-50) x (W-50) x 300 | Φ200 |
| 600×600 | 595 | (W-50) x (W-50) x 300 |
Φ250 |
安装Installation
静压箱丝杆和螺栓吊装，面板和静压箱为可拆卸结构。
Plenum installation with screw rod and nut. Swirl panel is removeable for easy maintenance.
