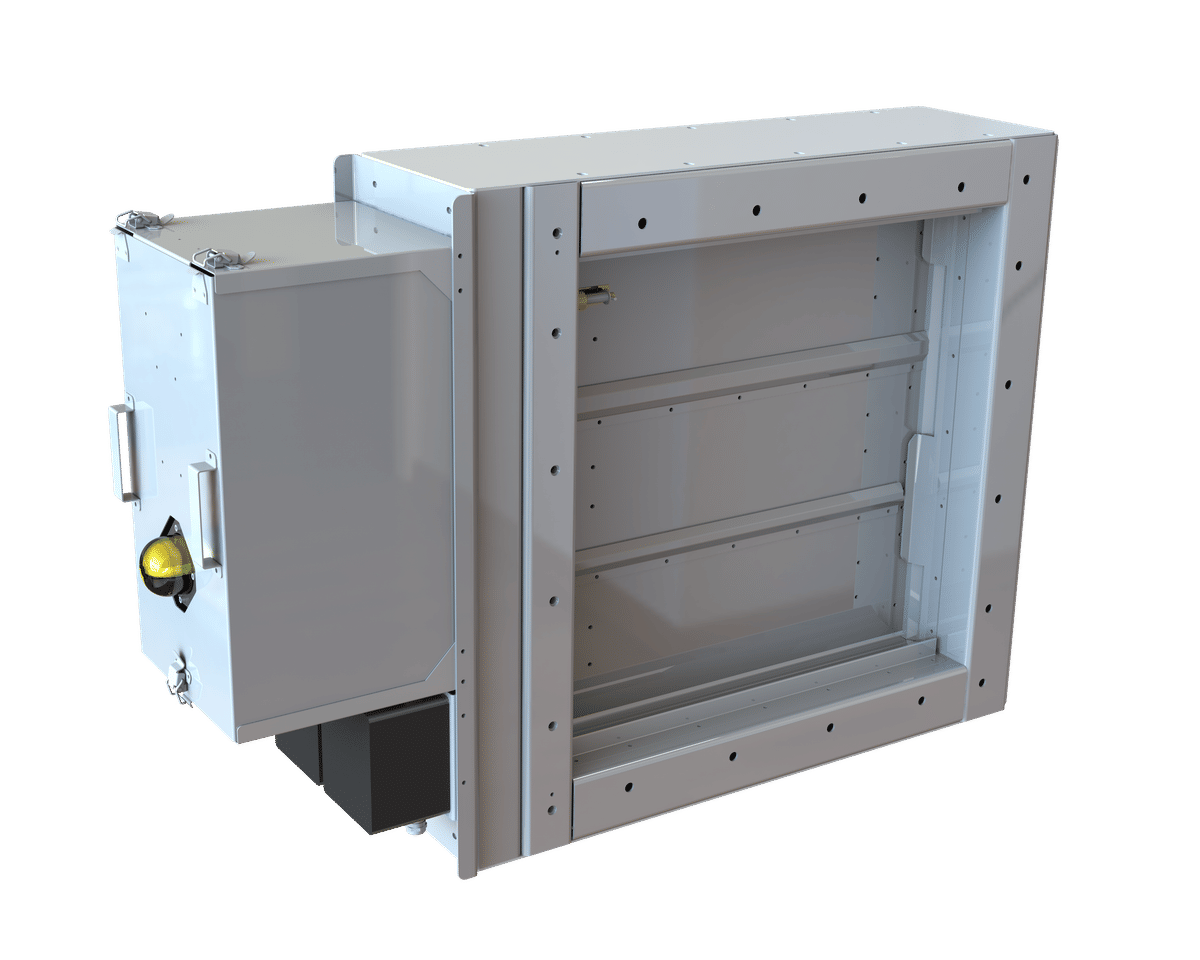

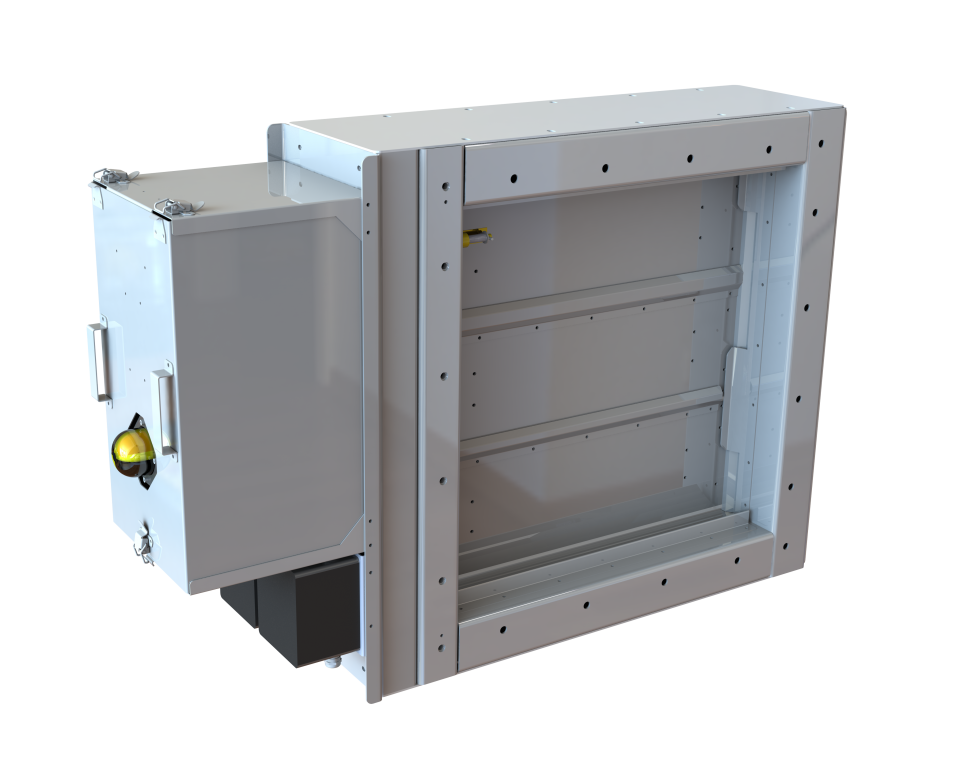

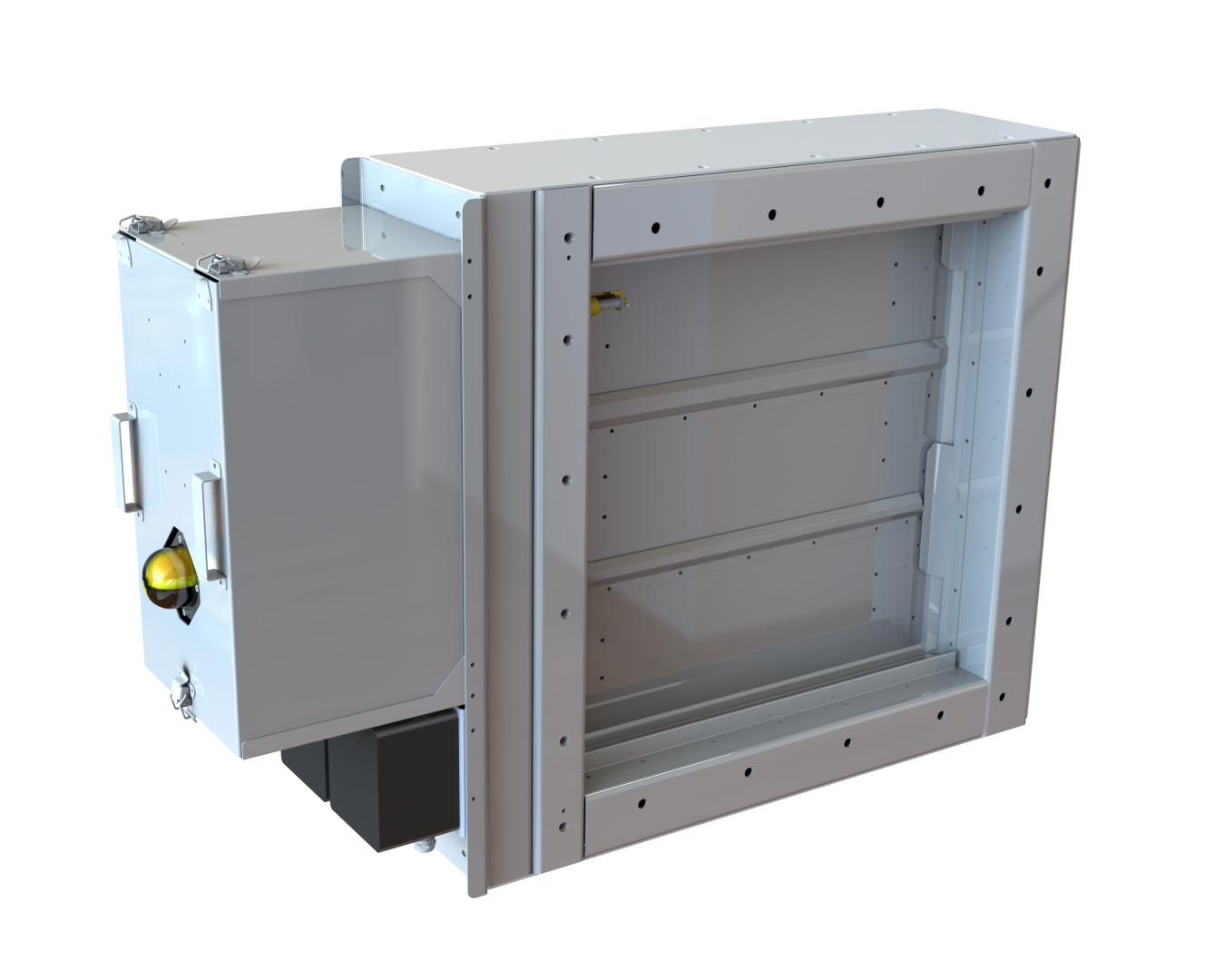

FDH – H0(H120) Fire and gas damper

Halton FDH fire and gas damper – a tighter fire and gas damper.

Request a Quote

Overview

  • Type-approved by the most recognized classification societies: class H0(H120) fire damper when suitably insulated. Pre-insulated H0(H60) with ceramic wool at the factory. H0(H120) with additional insulation on site. Blades insulated with ceramic wool
  • Blades contain stainless spring steel seals for low leakage in normal conditions and thermal expansion graphite seals (effective from 150 ºC) to seal the damper in case of fire
  • A closed damper fulfils the requirement of leakage class 3 (EN1751:2014) for size > 300×300 mm. Casing leakage class C
  • Fixed frame and blades of stainless steel
  • The nominal fuse release temperatures are 50 ºC or 74 ºC
  • With automatic electrical or pneumatic operation system
  • Maximum duct pressure for damper construction 5000 Pa and maximum air velocity 15 m/s
  • Available as ATEX certified
  • SIL 2 safety assessment certificate available for the damper on specific terms

Specification

Halton FDH fire and gas dampers are type-approved class H0(H120) fire and gas dampers for use in offshore and onshore ventilation systems to protect the integrity of bulkheads and decks where they are penetrated by ventilation ducts. The FDH fire and gas dampers can be installed in rectangular or circular ducts. The dampers have a fusible link and they prevent the spread of fire and gases within the ventilation ductwork. When the blades are in an open position, the device does not cause significant pressure loss, noise or flow disturbance. An open-closed beacon is visible on the outside of the damper.

Dimensions and Material Thickness

The FDH fire dampers are manufactured for both rectangular (width B 250-1200 mm with 25 mm division and height H 250-1200 mm with 50 mm division) and circular ducts (Ø250-1250 mm).
Non-standard dimensions and flange drilling available on request. Standard flange drilling pattern according to ISO 15138.
Standard frame material thickness 3 mm for size < 600 mm and 5 mm for sizes over 600 mm. Blades are made of two sheets each of them being 1 mm thick. Blades are pre-insulated with ceramic wool.

Standard FDH dimensions (BxH)

B H HF
250 250 250
300 300 250
350 350 250
400 400 400
450 450 400
500 500 400
550 550 550
600 600 600
650 650 650
700 700 700
750 750 750
800 800 800
850 850 850
900 900 900
950 950 950
1000 1000 1000
1050 1050 1050
1100 1100 1100
1200 1200 1200

H = nominal height, HF = free height
Blades sizes 150/200/250, 1-6 pcs depending on the size

Flange drilling dimensions according to ISO 15138

DIMENSIONS ØC F P1 P2 BM
If longest side < 350 10 80 75…150 75…150 20
If longest side 351…1000 12 80 75…150 75…150 30
If longest side > 1001 14 80 75…150 75…150 40

Circular flange dimensions and drilling pattern according to ISO 15138

DIMENSIONS ØC F
If Ø D < 355 10 40
If Ø D 356…1000 12 50
If Ø D > 1001 14 80

General FDH drawings

FDH circular connections

Material and Finishing

PART MATERIAL FINISHING
Frame Stainless steel
EN 1.4404 (AISI316L),
EN 1.4432 (AISI316L)
Blades Stainless steel
EN 1.4404 (AISI316L),
EN 1.4432 (AISI316L)
Maintenance-free bearings Stainless steel
EN 1.4404 (AISI316L)
 –
Shafts Stainless steel
EN 1.4404 (AISI316L)
 –

Product Models and Accessories

Halton FDH is available with following actuators:

  • FDH-EL: Electrical spring return motor; standard actuators being 24 VAC/DC or 230 VAC or 120 VAC. Depending of the choice of actuator, the actuator might contain built-in open-closed limit switches. Separate junction box included in the EL-model. A wide range of ex-proof actuators available, including a one second closing time function as an option.
  • FDH-PNR: Pneumatic rotating actuator. Junction box available as an option.

HSO: Halton Smart Override function for HVAC damper black-start available for PNR and EL models. With automatic reset function when power and/or pneumatic air supply is reinstated.

A wide range of accessories available.

Operation principles

In the event of a temperature rise in ductwork:

  • FDH-EL: fusible link releases and cuts off operating voltage to the spring return motor, allowing the spring to close the damper blades. The fire damper opens automatically when the fuse has been changed and the operating voltage to the motor is re-established.
  • FDH-PNR: fusible link releases and cuts off operating pressure to the spring return actuator, allowing springs to close the damper blades. The fire damper opens automatically when the fuse has been changed and the pneumatic air supply is re-established.

Weights

STANDARD HALTON MARINE FDH DAMPERS (KG) without an actuator*

H/HEIGHT (mm) B/WIDTH (mm)
300 400 500 600 700 800 900 1000 1100 1200
300 46 51 57 62 83 90 97 103 110 117
400 54 59 65 71 94 102 109 116 124 131
500 61 68 74 81 105 113 121 129 137 145
600 67 73 80 86 112 120 128 136 144 152
700 90 98 107 115 123 132 140 149 157 165
800 97 105 113 122 130 139 147 155 164 172
900 105 114 123 132 141 150 159 168 177 186
1000 112 121 130 139 148 157 166 175 184 193
1100 121 131 140 150 159 169 178 188 197 207
1200 128 138 147 157 166 176 185 195 204 214

*Approximate weights without an actuator.

  • Flange height is always 80 mm, flange drilling pattern is according to ISO 15138
  • Frame thickness is 3 mm (longest side up to 600 mm) and 5 mm (longest side 601 mm or more)

Approximate weights of pneumatic rotary actuator Air Torque FDH-PNR:

  • AT101 as aluminium: +1.8 kg
  • AT104 as stainless steel: +4.0 kg
  • AT201 as aluminium: +3.2kg
  • AT204 as stainless steel: +6.4 kg
  • AT301 as aluminium: +6.0 kg
  • AT304 as stainless steel: +13.3 kg

Other actuators available on request.

Electric rotary actuator Schischek ExMax or InMax

ACTUATOR OPTIONS CLOSING TIME MATERIAL WEIGHT (APPR.)
Ex/InMax-15-SF 3 seconds Aluminium 3,5 kg
Ex/InMax-15-SF 3 seconds Stainless steel 7,0 kg
Ex/InMax-15-SF1 1 second Aluminium 3,5 kg
Ex/InMax-15-SF1 1 second Stainless steel 7,0 kg
Ex/InMax-30-SF3 3 second Aluminium 9,5 kg
Ex/InMax-50-SF3 3 second Aluminium 9,5 kg

Installation

Installation on wall or roof.
At wall installation the blade orientation must always be in horizontal plane.

Copies of Installation, Operation and maintenance manuals are available from Halton Marine Sales offices and distributors.
