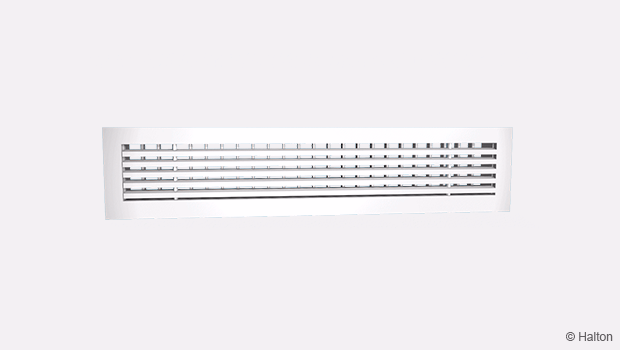

Halton WDD-C 双层百叶风口
水平或者竖直安装，用于送风或者排风
Horizontal or vertical installation, for air supply or exhaust.
概览Overview
- 风口叶片在0°~180°范围内任意调节，将水平和竖直方向的叶片调节成不同偏转角度，可以得到四个方向不同的送风距离和扩散角
GRILL vanes adjusted between0°~180°,with horizontal and vertical deflection angle to achieve four direction concerned airflow direction and distance.
- 水平或者竖直安装，用于送风或者排风
Horizontal or Vertical installation, for air supply or exhaust.
- 材料：铝合金型材
Material: Alloy aluminium profile.
- 表面处理：粉末喷涂
Surface treatment: Power painting
- 可选附件:过滤网/铝制调节阀/静压箱
Optional accessories: polyester filter/aluminium adjustment damper/Plenum
尺寸Dimensions
Halton WDD, 圆角框架 (R)
| LxH | L1 | L2 | H1 | H2 |
| 200×100 | 226 | 176 | 126 | 76 |
| 250×100 | 276 | 226 | 126 | 76 |
| 300×100 | 326 | 276 | 126 | 76 |
| 300×150 | 326 | 276 | 176 | 126 |
| 400×150 | 426 | 376 | 176 | 126 |
| 400×200 | 426 | 376 | 226 | 176 |
| 500×200 | 526 | 476 | 226 | 176 |
| 600×200 | 626 | 576 | 226 | 176 |
| 800×200 | 826 | 776 | 226 | 176 |
| 1000×200 | 1026 | 976 | 226 | 176 |
| 600×300 | 626 | 576 | 326 | 276 |
| 800×300 | 826 | 776 | 326 | 276 |
| 1000×300 | 1026 | 976 | 326 | 276 |
| 1000×400 | 1026 | 976 | 426 | 376 |
| 1200×400 | 1226 | 1176 | 426 | 376 |
Halton WDD, 平板框架 22 mm (F)
| LxH | L1 | L2 | H1 | H2 |
| 200×100 | 220 | 176 | 120 | 76 |
| 250×100 | 270 | 226 | 120 | 76 |
| 300×100 | 320 | 276 | 120 | 76 |
| 300×150 | 320 | 276 | 170 | 126 |
| 400×150 | 420 | 376 | 170 | 126 |
| 400×200 | 420 | 376 | 220 | 176 |
| 500×200 | 520 | 476 | 220 | 176 |
| 600×200 | 620 | 576 | 220 | 176 |
| 800×200 | 820 | 776 | 220 | 176 |
| 1000×200 | 1020 | 976 | 220 | 176 |
| 600×300 | 620 | 576 | 320 | 276 |
| 800×300 | 820 | 776 | 320 | 276 |
| 1000×300 | 1020 | 976 | 320 | 276 |
| 1000×400 | 1020 | 976 | 420 | 376 |
| 1200×400 | 1220 | 1176 | 420 | 376 |
Halton WDD, 平板框架 30 mm (F2)
| LxH | L1 | L2 | H1 | H2 |
| 200×100 | 236 | 136 | 176 | 76 |
| 250×100 | 286 | 136 | 226 | 76 |
| 300×100 | 336 | 136 | 276 | 76 |
| 300×150 | 336 | 186 | 276 | 126 |
| 400×150 | 436 | 186 | 376 | 126 |
| 400×200 | 436 | 236 | 376 | 176 |
| 500×200 | 536 | 236 | 476 | 176 |
| 600×200 | 636 | 236 | 576 | 176 |
| 800×200 | 836 | 236 | 776 | 176 |
| 1000×200 | 1036 | 236 | 976 | 176 |
| 600×300 | 636 | 336 | 576 | 276 |
| 800×300 | 836 | 336 | 776 | 276 |
| 1000×300 | 1036 | 336 | 976 | 276 |
| 1000×400 | 1036 | 436 | 976 | 376 |
| 1200×400 | 1236 | 436 | 1176 | 376 |
安装Installation
确保安装孔尺寸大于等于L x H, 铝合金调节阀可以从正面仰视方向扳动手柄，实现风量调节。与静压箱相连使用可拆卸方式。
Ensure the installation hole size not less than L x H, aluminium adjustment damper can be adjusted from downside to achieve concerned airflow.
Plenum and grill connection is removeable for easy maintenance.
