Product / CPT

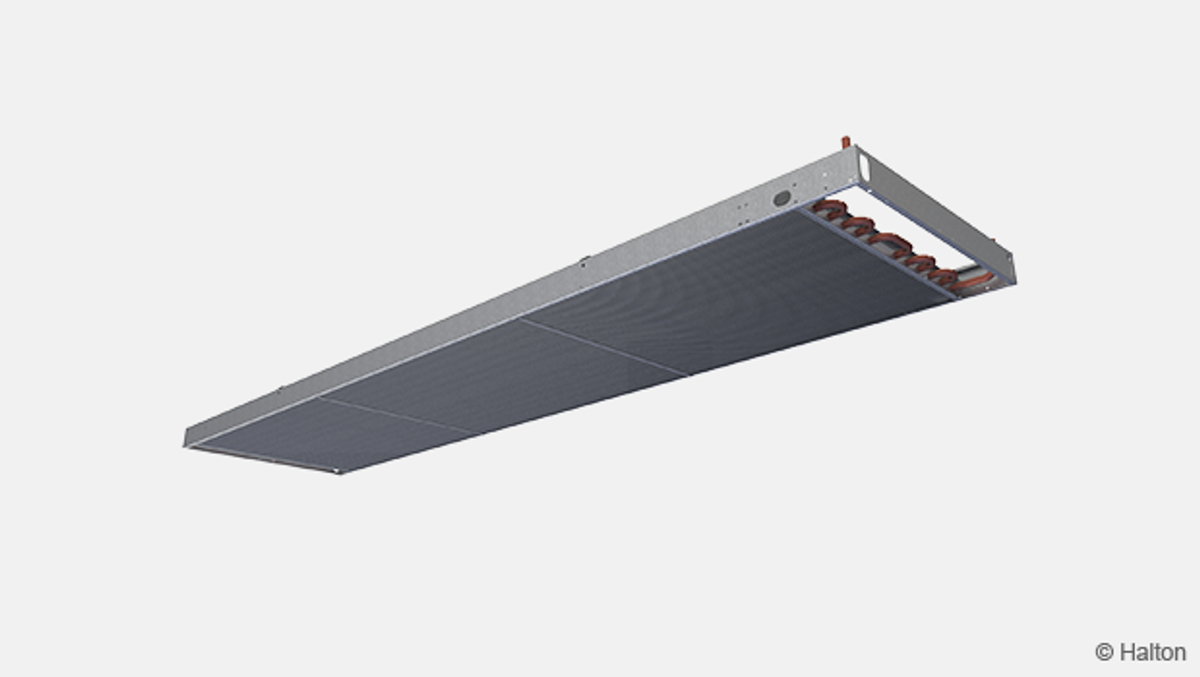

CPT 用于横向送风的方形送风装置


Request a Quote


  • 安装在吊顶上的被动式冷梁
  • 安装在网眼或穿孔吊顶的上方
  • 工作状态安静
  • 无运动部件
  • 对于要求高冷负荷、低度负荷和低通风的空间而言,是最佳选择
  • 对于要求高品质环境条件和独立房间控制的各种建筑而言,是理想选择
  • 典型应用环境:办公室、会议室和零售商店
  • 装置的三种不同高度可满足不同的制冷能力要求


Dimensions and weight

WD = Location of pipe connections
           U    Front end
           S    On top

W H w L l (without valves) l (with valves)
315 100 136 1200-5000 L-200 L-300
450 100 204 1200-5000 L-200 L-300
585 100 271 1200-5000 L-200 L-300
315 200 136 1200-5000 L-200 L-300
450 200 204 1200-5000 L-200 L-300
585 200 271 1200-5000 L-200 L-300
315 300 136 1200-5000 L-200 L-300
450 300 204 1200-5000 L-200 L-300
585 300 271 1200-5000 L-200 L-300

A coil with 1 loop has a connection pipe ØD 15 mm and 2 loops has a connection pipe ØD 22 mm.

Fig.1.  Optionality factory-fitted valve


Weights kg/m (including water)

Width (mm) Heigth (100-300)
315 8,3 (8,5)
450 10.8 (11.9)
585 12.7 (14.1)

Due to fabric skirts the weight difference between different heights is not remarcable.


 Part  Material  Note
 Side panels  Sheet metal  Unpainted
 Cooling pipes  Copper  Diameter 15 mm
 Cooling fins  Aluminium
 Skirt textile  Fireproof polyester  Fulfils PES FR


 Accessory Code  Note
 Pipe connection, straight in the end WD=S
 Pipe connection, at the top WD=U
 Factory-fitted control valve
CV =
 See Product Code page

Other options by requesting Halton customer service.


The beam operates by natural convection, removing the heat load from the room and replacing it with a cooling airflow. The convective airflow (output) increases or decreases in proportion with the heat load within the occupied zone, securing an optimal thermal comfort.

Varying sensible cooling output requirements are met by regulating the flow of chilled water through the beam heat exchanger. This is controlled by a combination of room thermostat and water valve. Operating at elevated chilled water temperatures (to avoid latent cooling), the opportunities for free-cooling are significant.

Halton CPT can be supplied with skirts where are 3 different heights to meet cooling capacity requirements.


The chilled beam Halton CPT is installed above an open grid or perforated ceiling.
In order to ensure effective convection, the beam should be mounted at a minimum distance from the ceiling equal to 0.25 x the width of the beam, when installed away from wall surfaces, or 0.5 x beam width when installed close to partition walls.

Each chilled beam is fixed to the ceiling with expansion anchors and threaded drop rods (not included in the delivery). Four assembly brackets are fixed one fifth of the unit length (L/5) away from the end of the beam. There will be six assembly brackets with beam length ³ 3500.

The exact positions of the brackets are adjusted according to the rod position.
The chilled beam position can be easily adjusted both horizontally and vertically. Assembly brackets are supplied as standard in the package.

The contractor shall supply threaded rods and expansion anchors.

Distance between suspension rods



Distance from the ceiling


D = distance wall; up to 1 x W


Commissioning of the chilled beam system is carried out following standard practice:

  • Fill up and flush the main pipelines
  • Fill up and vent the beam circuits
  • Adjust the flow water temperature set point
  • Adjust the water flow rates with the balancing valves for all main pipelines
  • Adjust the water flow rates in all chilled beams to correct values.


The Halton CPT chilled beam requires little maintenance.

It may be necessary to clean the cooling coils in every three to five years, depending on room conditions and air quality. The cooling coils can normally be cleaned using a vacuum cleaner.


Output/capacity     90 – 550 W/m
Length                  1000, +100, .., 5000 mm
Width                    315, 450 and 585 mm

The heat exchanger is constructed from aluminium fins and copper pipes with a nominal outside diameter of 15 mm.

The maximum chilled water pipe work operating pressure is 1.0 MPa. All joints are fully soldered and factory pressure tested.

Order Code


L = Length
       1200,+100,…, 5000

W = Width
         315, 450, 585

NW = Number of water loops
1, 2

H = Height
      100, 200, 300

Other Options and Accessories

CO = Colou
          N        No painting
          B        Black (RAL 9005, 20%)

WD = Location of pipe connection
S        Front end
          U        On top

CV = Control valve
          N         No
          A1       Adjust. kv value, factory mounted, no actuator
          A3       Adjust. kv value, factory mounted, 24-V actuator
          A5       Adjust. kv value, factory mounted, 230-V actuator
          A7       Constant-flow-mounted, no actuator
          A9       Constant-flow-mounted, 24-V actuator
          A11     Constant-flow-mounted,  230-V actuator

ZT = Tailored product
          N         No
          Y         Yes

Code example

          CPT-2200-585-1-100, CO=N, WD=S, CV=N, ZT=N
