TDMS 厨房圆形顶棚散流器

浩盾 TDM 是适用于直径为 100 至 315 mm 圆形管道接口的圆形顶棚散流器，其材质为不锈钢。



  • 概述

  • Dimensions

  • Material and Finishing

  • Function

  • Installation

  • Servicing

  • Downloads

Request a Quote

概述

  • 可水平放散性供风，同时也可用于排气
  • 由不锈钢制成
  • 安装在通风管道或静压箱上
  • 前挡板可拆卸，便于清洁
  • 带密封圈的圆形管道接口

设计符合 USPHS 要求

Dimensions

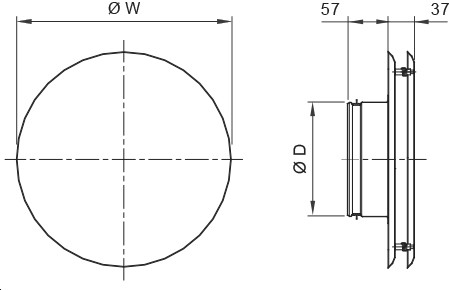

TDMS dimensions and weights

NS W ØD WEIGHT
100 300 99 1,3 kg
125 300 124 1,3 kg
160 300 159 1,6 kg
200 450 199 2,8 kg
250 450 249 2,8 kg
315 600 314 4,5 kg



Material and Finishing

PART MATERIAL NOTE
Upper plate Stainless steel EN 1.4404 (AISI316) –
Front panel Stainless steel EN 1.4404 (AISI316) Solid front panel
Coupling sleeve Stainless steel EN 1.4404 (AISI316) Gasket
Duct gasket Rubber compound –
Finishing – –



Function

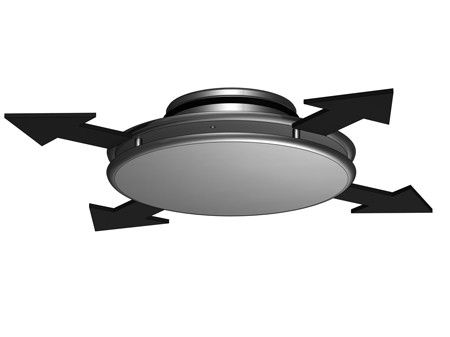

Air is supplied horizontally into the space through the side slots of the diffuser and induces the room air outside the diffuser. The recommended maximum air temperature difference between supply and room air is 10 ºC degrees.

Installation

Diffuser can be connected directly to the duct or plenum box.

Servicing

Open the front panel of the diffuser and clean the parts by wiping with a damp cloth. Push the front panel back into place so that the springs lock.

Downloads

  • Private: TDMS Circular ceiling diffuser for galleys – manufacturing stopped.
