防火风闸和防火阀

CFD-02TM 高温管道风闸

CFD-02TM高温管道风闸可直接用螺栓固定/夹紧在墙壁和地板上，或用螺栓固定在钢支撑框架/管道系统上。

FDO A0(A60) 防火阀适合要求苛刻的应用

适合要求苛刻的应用

• 圆形构造 – 可选配法兰
• 根据 SOLAS，可选 3-4 mm 的外框厚度。直径为 100 – 500 mm 的尺寸。
• 可以使用 1 mm 作为分度来制造直径大于等于 160 的尺寸。

FDL A0(A60) 防火阀

用于高要求应用

• 采用方形构造 – 可使用圆形连接件
• 外框厚度为 3 mm – 也可根据需要选用 3-5 mm 的外框厚度
• 阀门最大尺寸为 1300×1200 mm（宽x高）- 可用于模块化构造
• 风叶不含密封条

FDB2 用于高要求应用的 A0(A60) 防火隔烟阀

用于高要求应用

• 采用方形构造 – 可使用圆形连接件
• 外框厚度为 3 mm 或根据 SOLAS 为 3-5 mm
• 阀门最大尺寸为 1200×1600 mm（宽x高）- 可用于模块化构造
• 风叶包含特殊密封条和热膨胀密封条作为标配

浩盾FDA 防火隔烟风闸规格

浩盾 FDA 防火隔烟风闸是具有型式认证的 A0(A60) 级防火隔烟阀，广泛适用于钻井平台、船舶和舰艇上的通风系统。

• FDA 防火风闸符合方形管道（宽度 B 200-1200 mm，分度值为 25 mm，高度 H 200-1600 mm，分度值为 50 mm）和圆形管道（直径 200-1250 mm）的国际标准。模块构造尺寸可达 2500×2600 mm。
  可根据要求提供非标尺寸和法兰钻孔。标准法兰或钻孔符合 ISO 15138 标准。根据 SOLAS，可选 3-5 mm 的外框厚度。

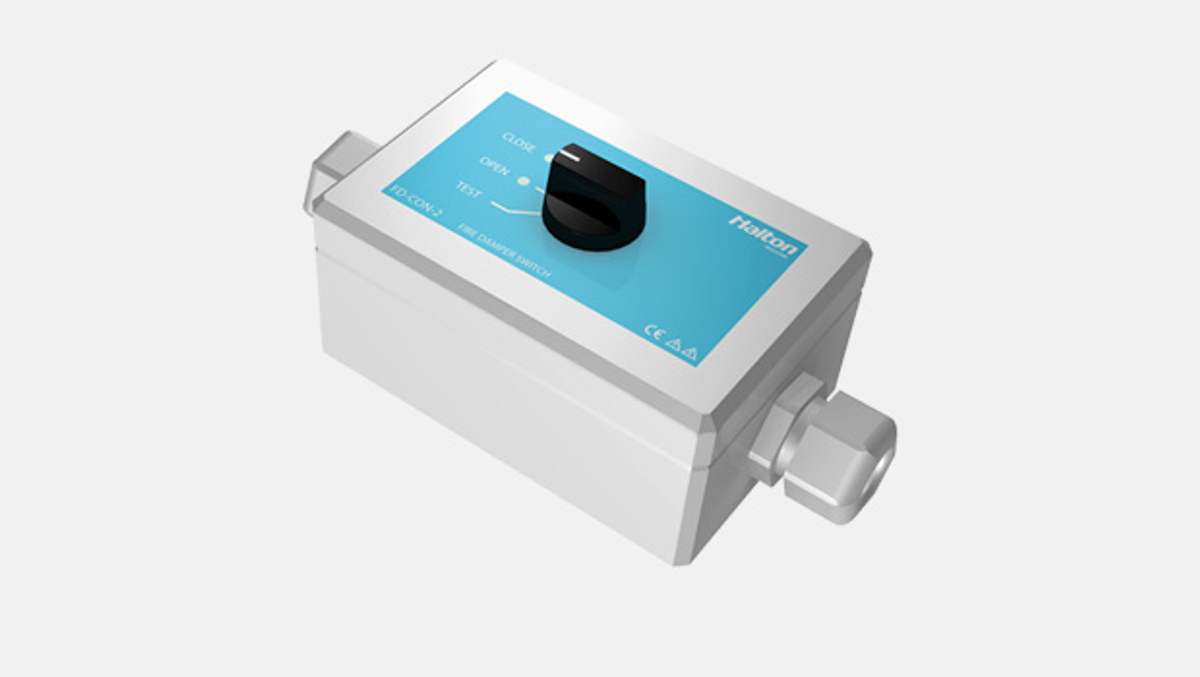

FD-CON-2 防火阀控制器

用于浩盾船舶防火阀

• 每个防火阀上的单个或多个控制器均具有主/从配置
• LED 灯可指示防火阀的开/关位置

CFD-01-ICB – EI120S Insulated fire damper

The CFD-01-ICB Fire Damper is a High Integrity insulated Fire Damper used to prevent the spread of flame, smoke and heat through a HVAC system, in the event of a fire.

CFD-01 – A0 (A60) E120S Fire damper

Designed to operate in the most arduous conditions and extremes of climate and temperature, Flamgard Calidair dampers have a proven record of reliability and high performance across multiple industries.

FDK – A0(A60) Fire damper

Halton FDK A0(A60) fire dampers are developed to be used in ferries and yachts where lightweight equipment are preferred.

Halton FDV – Fire valve (E 120 S)

Basic valve look, effective function. Easy to install.

Halton FDT – Fire damper (EI 60 S)

This CE marked fire damper (EI 60 S) needs no spare parts or additional installation frames, regardless of the wall type.

Halton FDI – Fire damper (EI 60 S)

This CE marked, already well known fire damper is a familiar member of our Fire safety family.

FDH – H0(H120) Fire and gas damper

Excellent choice for offshore, marine and navy ventilation systems. Available also as ATEX approved as an option.

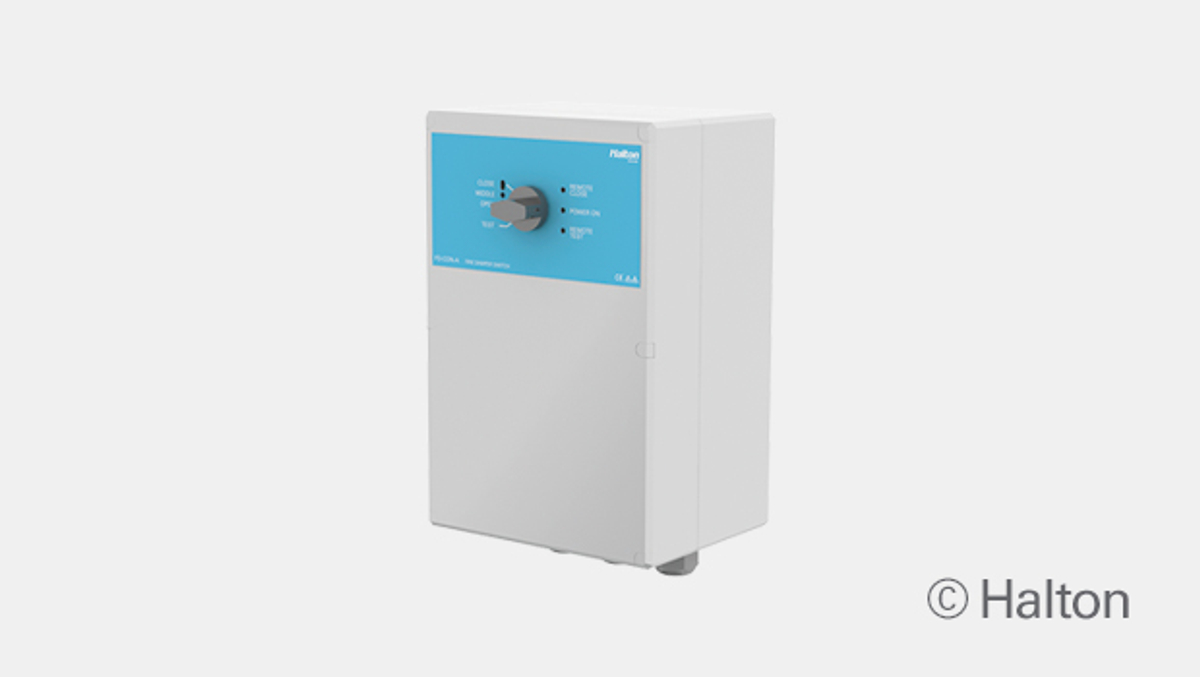

FD-CON-A – Fire damper control unit

For Halton Marine fire dampers

• Single or multiple controllers per damper with easy jumper based master/slave configuration
• LED lights indicate the damper open, middle and closed positions

FCE – Fire damper (EI 60 S)

Excellent choice for industrial ventilation systems. Halton FCE fire dampers are CE-marked according EN 15650:2010 and tested according to EN 1366-2 standard. Available also as ATEX approved as an option.

Halton Exe ETR – Fire damper (EI 120 S)

This is one of the largest rectangular CE marked fire damper in the market. Minimum free space around its body is needed in case of installation.

Halton Exe ETC – Fire damper (EI 120 S)

Installation option up to 1.0 meter away from the structure (EI 90 S) has been certified.

Halton Exe ESR – Fire damper (EI 120 S)

Installation option up to 1.0 meter away from the structure (up to EI 90 S) has been certified.

Halton Exe ESC – Fire damper (EI 120 S)

Installation option up to 1.0 meter away from the structure (EI 90 S) has been certified.

Halton Exe ELR – Fire damper (E 120 S)

This non-insulated CE marked blade type of fire damper model is one of the shortest in the market.

Halton Exe ELC – Fire damper (E 120 S)

This non-insulated CE marked fire damper is one of the shortest in the market and so utilising minimal space.

Halton Exe EFC – Fire damper (EI 120 S)

This fire damper can be installed inside the duct near with e.g. supply or exhaust valve.

Halton Exe EDC – Fire damper (EI 120 S)

Installation option up to 1.0 metre away from the structure (up to EI 90 S) has been certified.
