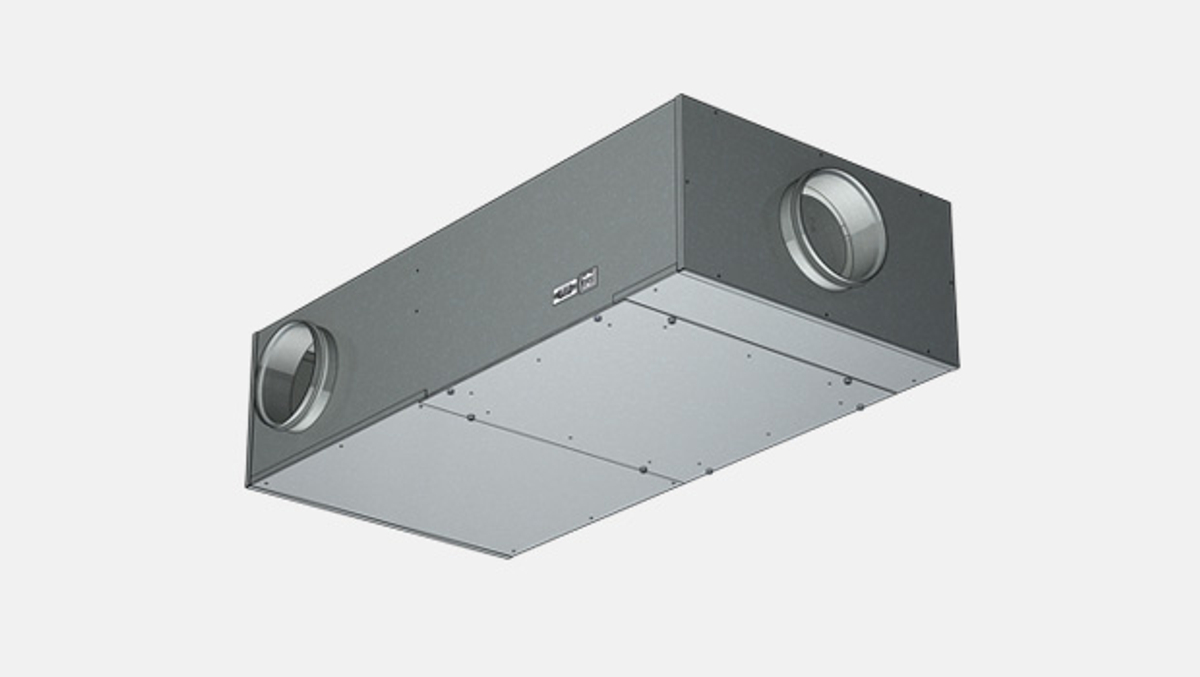

Product / HFRM
Overview
- Pressure range from 200 Pa up to 1000 Pa
- Airflow range 175 m3/h…1000 m3/h
- 230 VAC ±10%, 50/60 Hz
- Inbuilt airflow measurement (pressure independent models)
- Damper min. / max. position settings (pressure dependent models)
- Triac controlled reheating coil(s), adjustable heating power (PWM) 0…100%
- Master/slave functionality: several cabin units can be controlled by one control panel
- Internal fuses included
- All parameters can be set onsite during commissioning by external device or preset at the factory
- All cable connections with fast connectors
- Easily tailored for different types of installations
- 90 °C safety switch with state detection and manual reset
- Minimum flow alarm (pressure independent model) and inbox temperature measurement with overheat limit to cut-off reheater power
- HFR/M cabin unit is supplied with control panel and interconnection cable
Specification
Halton HFR/M is pressure independent or pressure dependent single duct cabin unit with 1-3 outlet connections for terminal units. Pressure independent VAV or CAV operation is facilitated by continuous airflow measurement and damper regulation by intelligent controller. Pressure independent HMF adapts to variations in supply ductwork pressure levels and maintains individual fresh supply airflow rate to each cabin. Pressure dependent VAV operation is facilitated only by damper regulation by intelligent controller. Pressure dependent HMF adapts to room temperature changes by regulating airflow between pre-set minimum and maximum damper positions. Halton HFR/M is an excellent choice for suites, deluxe cabins and office areas where the total airflow needs to be distributed to several points, but controlled centrally with one control panel.
Dimensions
D1/D2 (DN) | L | W | H | F | |
HFR/M-125 | 125 | 1000 | 500 | 225 | 99 |
HFR/M-160 | 160 | 1000 | 500 | 250 | 121 |
HFR/M-200 | 200 | 1000 | 500 | 300 | 136 |
General drawings
Material and Finishing
PART | MATERIAL |
Casing | Hot galvanized steel or EN 1.4404 (AISI316L) as an option |
Spigots | Hot galvanized steel and EPDM rubber or EN 1.4404 (AISI316L) as an option |
Insulation | Mineral wool, s = 25 mm, MED approved |
Input/output unit | Aluminium/plastic/electronics |
Reheat coil | EN 1.4301 (AISI304) |
Cables | Halogen-free |
Airflow measurement probes and tubes | Aluminium/polyurethane |
Product Models
Product options
- Pressure independent model (VAV/CAV)
- Pressure dependent model (VAV)
- Inputs for external switches such as balcony door and key card switches available as an option
- Network compatible with adapter for advanced energy efficiency and supervision system available as an option
- Energy efficiency functions to reduce unnecessary cooling / heating costs available as an option
Control panel features
Halton Marine HMF cabin units are available with three different control panel models; with rotating knob, push buttons with LED bar graph (available as option: IP54) and push buttons with LCD-display (available as option: IP54).
Common features
- Cabin temperature measurement
- Connector for bluetooth / communication adapter to set cabin parameters
- Software for parameter setting and trouble shooting
- Different colour options and custom labeling available as an option
- Delivered with IC-Cable (interconnection cable)
- For control panel – cabin unit connection
- Prefabricated with plugs on both ends
- Cable plug on panel side is designed to be pulled through standard installation pipe
- Halogen free and flame-retardant
- Standard length 7 meters. Other lengths available.
Control panel with rotating knob
- Temperature adjustment by rotating knob
Control panel with push buttons and LED bar graph
- Temperature adjustment by push buttons
- Self diognose function
- LED intensity control and auto dimming
Control panel with push buttons and LCD-display
- Temperature adjustment by buttons
- Self diagnose function
- LCD intensity control and auto dimming
- Display for actual and set point temperatures available as an option
- Time display available as an option
- A customized background picture available as an option
- Several frame options available
Control panel models; push buttons and rotating knob
LCD control panel
Cabin ventilation configuration table
Please note: HMM and HME units are also available without a control package.
Manually controlled airflows
Single duct units; HMM, HME
Pressure dependent units
Single duct units: HMF, HFR/M
Pressure independent units
Single duct units; HMF, HFR/M, HML
Dual duct units; HMR
Accessories
MS-Cable (master-slave cable)
- For master cabin unit – slave cabin unit/units connection
- Prefabricated with plugs on both sides
- Halogen free and flame-retardant
- Standard length is 7 meters. Other lengths available as an option.
Communication adapter
- Bluetooth communication to external device
- For wireless connection to set cabin unit parameters and trouble shooting
Network adapters
- Network adapter (also available as WiFi) expands a stand-alone unit to network compatible unit (LON or Ethernet network)
- Enables supervision and advanced energy efficiency functions
- For more information, see Halton Networks for cabin ventilation -brochure or contact Halton Marine Sales office.
Reheaters available
- Standard reheaters: 400W, 800W, 400+800W, 1200W, 1500W, 1800W
- Offshore reheaters: 400W, 800W, 1200W, 1600W (surface temperature below 90ºC on operating airflow)
Practical power level may be software adjusted cabin by cabin. Cable and power supply design has to be done according to maximum available heating power.
Function
Control panel includes also a number of special features such as diagnostics function, room brightness measurement and re-programmability. The power supply and data transfer between cabin unit and control panel is carried out via interconnection cable.Temperature range is software adjustable between 10 and 30°C.
Function of VAV unit
When passenger demands lower temperature by using control panel unit, the damper opens in order to increase the flow of cold air towards the maximum value. When the required temperature in the cabin is achieved, the damper reference is held until the temperature demand changes. In heating mode, the damper restricts the airflow towards its minimum rate, and if the required temperature in the cabin is not thus achieved, the controller activates the electric reheater inside the unit in a stepless manner.
Regulation diagram, VAV
Function of CAV unit
Airflow is kept in pre-set level in any condition. When passenger demands for a higher temperature by using control panel, the electric reheater inside the cabin unit will be activated in a stepless manner towards to maximum heating capacity or until desired temperature is achieved. When passenger demands for a lower temperature by using control panel, the electric reheater inside the unit will be deactivated in a stepless manner towards to zero heating capacity or until desired temperature is achieved.
Regulation diagram, CAV
Operating range
HFR/M-125 | HFR/M-160 | HFR/M-200 |
175 m3/h – 500 m3/h | 250 m3/h – 800 m3/h | 350 m3/h – 1000 m3/h |
Airflow measurement accuracy
AIRFLOW (m3/h) | |||
175-300 | 300-600 | 600-1000 | |
Accuracy* | ±15% | ±10% | ±8% |
* ductwork pressure 200-1000 Pa (optimal)
Note: When comparing airflow measurements between cabin unit and other device, cabin unit’s airflow regulation dead-band has to be taken into account (± 10 m3/h).
