XEU – Extenso exhaust and supply Air Handling Unit (CE)
With pollution control and UVGI treatment – Eurovent accredited
CE marked (UKCA pending) – The EUROVENT accredited Extenso XEU “combined” air-handling units are a solution for those projects requiring PolluStop pollution control and Aerolys supply air-handling to be provided as a single, compact integrated unit.
They combine all the benefits of the PolluStop and Aerolys ranges. Respect for the neighborhood, healthiest fresh air for the chefs and their teams, and unrivaled energy savings are just a glimpse of these benefits.
Overview
Extenso, 2 high-end products in a single package!
The Extenso XEU range is a solution for those projects requiring PolluStop and Aerolys supply and exhaust air handling units to be provided as a single, compact and integrated unit. The single “footprint” of the unit is then half that of the separate units. This can be of particular benefit on those projects where Plant Room, or rooftop, space is at a premium. Extenso units also simplify the combination of both air-to-air and air-to-water heat recovery within a single compact unit.
Extenso units provide all the features and options that are available from the individual PolluStop and Aerolys ranges. They allow safely establishing the restaurants wherever you chose i.e. where they are of most value. Chefs and their teams benefit from the healthiest fresh air and the ventilation fulfils the strongest hygiene requirements. When combined with M.A.R.V.E.L. the energy savings are unrivalled.
- Specially developed to establish restaurants in dense urban areas or when the quality of the incoming air must be to an extremely high standard (hospitals, care homes, public buildings etc).
- Wide range of units, from 3,240 to 38,880 m³/h.

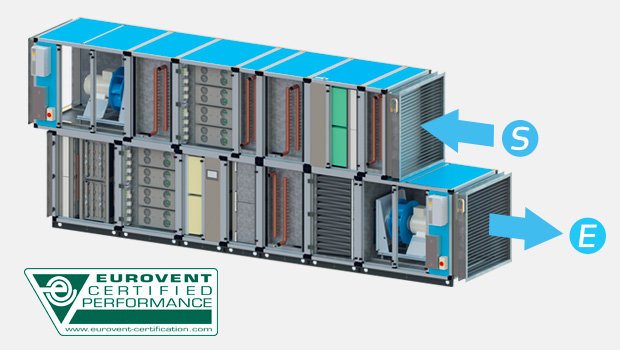

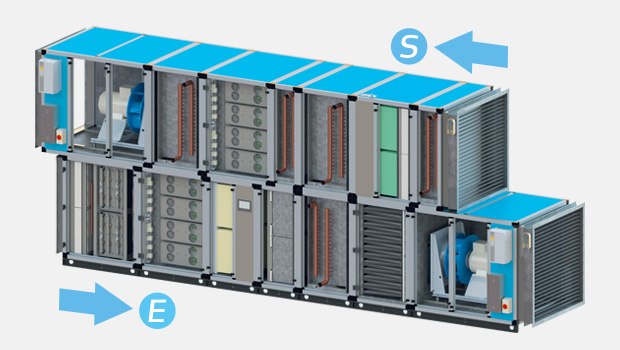

- Can be configured as either “stacked” (one on top of the other), or “alongside” (side-by-side).
- Can incorporate matched energy recovery coils offering either air-to-air or air-to-water heat transfer, or a combination of both.
- Other characteristics and benefits similar to PolluStop PEU and Aerolys AEU air handling units.
More about the main embedded technologies
Halton Connect
Capture Ray™
Halton SafeGuard Risk UVGI
Tietoja Halton Connect & Caresta
Halton Connect on pilvipohjainen IoT-alusta, joka mahdollistaa Haltonin suunnittelemien ratkaisujen etävalvonnan ja -käytön. Etävalvonnan ansiosta mahdolliset vikatilanteet voidaan ratkaista kustannustehokkaasti ja nopeasti. Myös vuosihuoltojen ja tarkastusten suunnittelu ja toteuttaminen on yksinkertaista, ja asiakas voi olla varma että hänen järjestelmänsä on aina oikein huollettu.
Olosuhteet kohteissa muuttuvat, joten myös järjestelmien on pysyttävä muutoksessa mukana. Haltonin huoltosopimusasiakkaat saavat käyttöönsä etävalvonnan lisäksi tehostustyökalut ja monipuolisen raportoinnin. Näin järjestelmää voidaan helposti muokata ja optimoida koko sen elinkaaren ajan.
About Eurovent certificate
Halton Foodservice participates in the Eurovent Certified Programme for Halton AHU range of exhaust and supply units (PolluStop PEU, Aerolys AEU and Extenso XEU). Diploma: 17.02.277.
Check on-going validity of certificate: www.eurovent-certification.com
Ranking of Halton Aerolys (AEU), PolluStop (PEU) and Extenso (XEU) units
As part of this programme, the model box of Halton Air Handling Units has been tested according to 6 targets.
The scores Halton AHUs reached on each target are detailed below.
Max Deflection CS ≤ 4 mm
Max transmittance 1,4 < TT ≤ 2,0 W/m2 K
Max Bridging 0,30 < TBF ≤ 0,45
Max leakage 0,44 < CAL400 ≤ 1,32 l/s m2
Max leakage 0,63 < CAL700 ≤ 1,9 l/s m2
Max bypass FBL ≤ 0,5%
More about the targets and what they mean.
* R stands for Real Unit (M stands for Model Box).
Acoustical insulation [dB]
