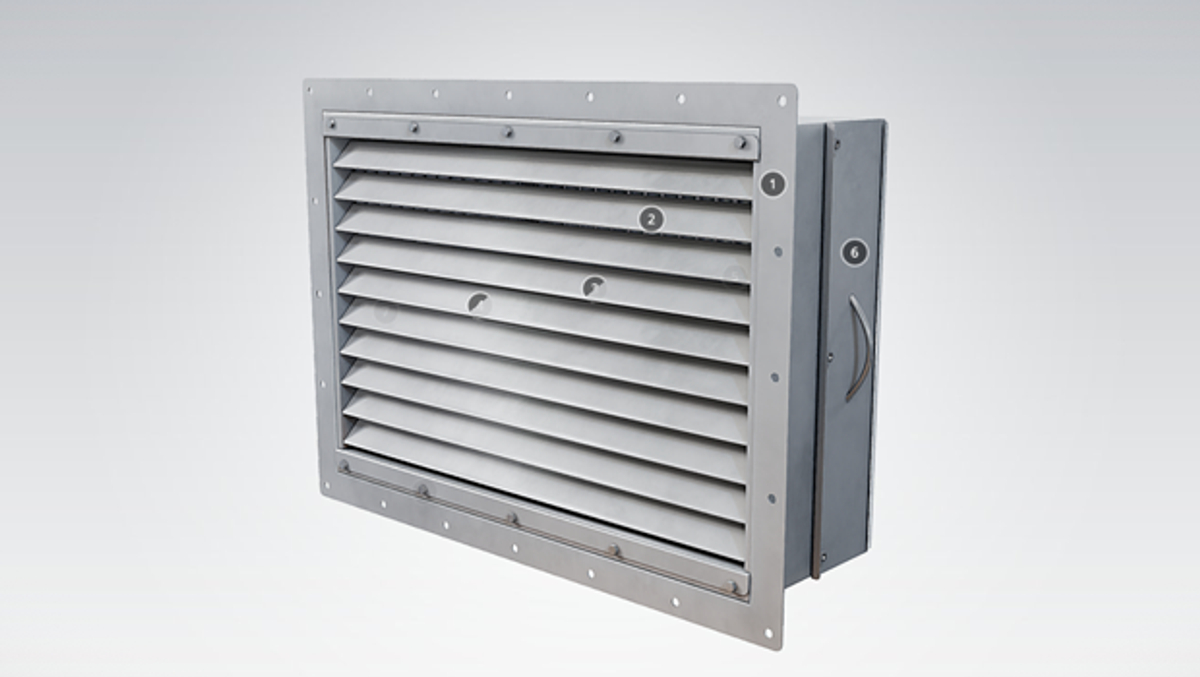

Halton’s DSH high-efficiency droplet separators (water sepator, mist eliminator) are designed for demanding applications such as marine, oil & gas, chemical, energy industries where reliability, easy installation and special design play an important role.

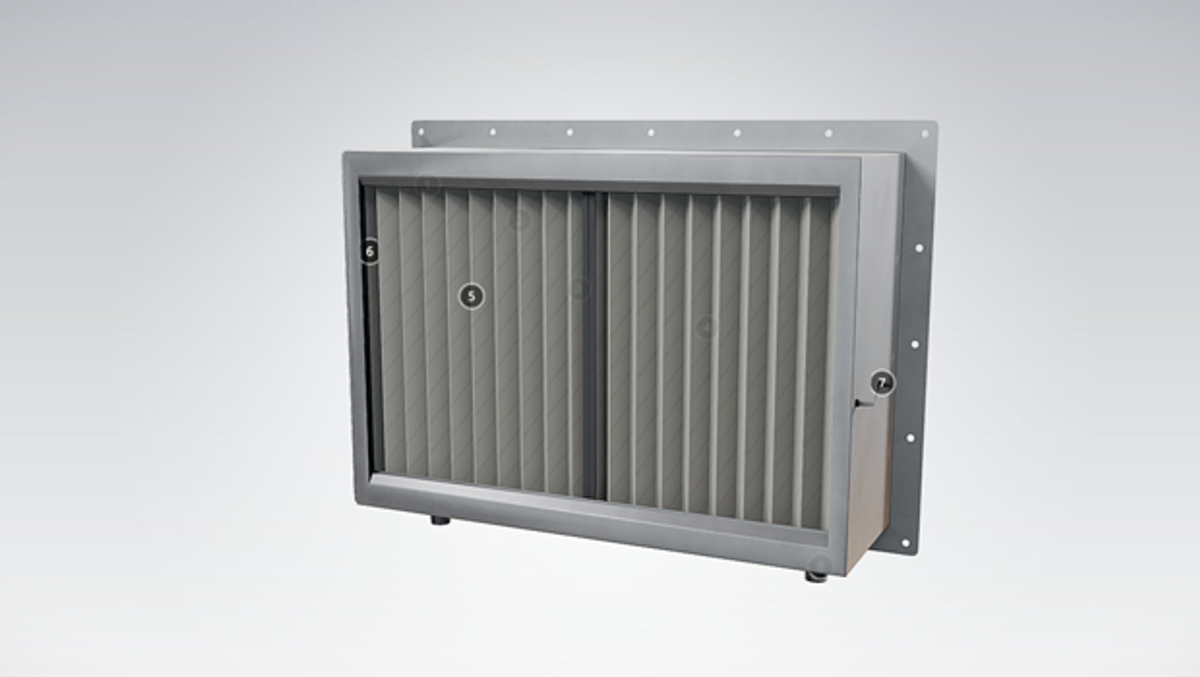

Halton’s DSH high efficiency droplet separators are designed for demanding applications such as marine, oil & gas, chemical, energy industries, where reliability, easy installation and special design play an important role. Droplet separators operate on the principle of inertial vane separation and are designed to restrict the penetration of moisture, salt spray, rainwater and airborne aerosol particles into HVAC systems, engine room intakes, machinery spaces, and diesel and gas turbine engine air intakes.

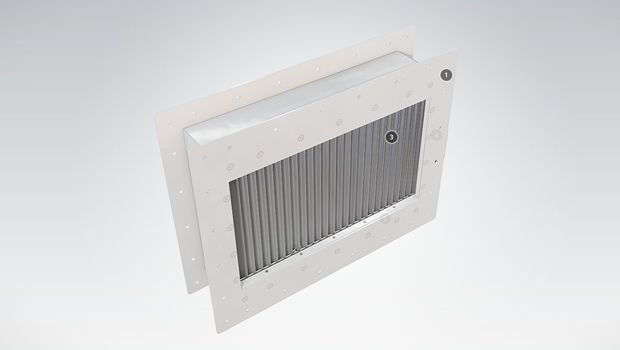

Three configurations are commonly used according to the level of droplet removal efficiency required, single stage, two stage, and three stage, but special configurations are available. Two and three stage units will include a coalescing and particulate filter. Halton is able to assist in the design and selection of the droplet separator according to the application with special consideration to the pressure drop, velocity, wind speed and direction, turbulence, and drainage.
Please note that flanges in accordance with Norsok / ISO15138 are available as an option.
Special flange configurations available on request.

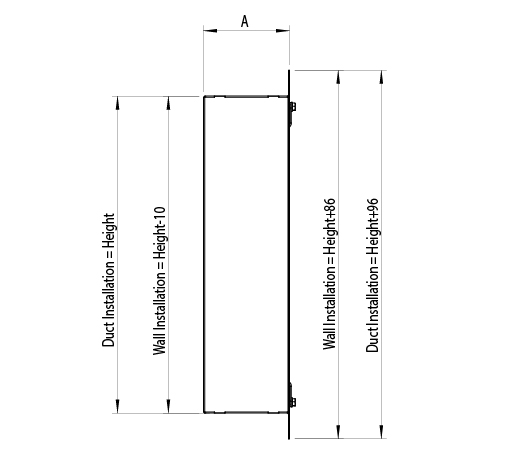

TYPE | A WALL INSTALLATION |
A DUCT INSTALLATION |
DSH | 160 | 170 |
DSH+ML | 210 | – |
DSH+panel filter | 225 | 235 |
DSH+panel filter+ML | 275 | – |
DSH+bag filter | 595 | 605 |
DSH+ML+bag filter | 645 | – |
DSH = droplet separator
DSH+ML = droplet separator + mask louvre
DSH+panel filter = droplet separator + ISO Coarse 70% panel filter
DSH+panel filter+ML = droplet separator + ISO Coarse 70% panel filter with depth 360mm + mask louvre
DSH+bag filter = droplet separator + ePM2,5 65% bag filter with depth of 300 mm
DSH+ML+bag filter = droplet separator + mask louvre + ePM2,5 65% bag filter with depth of 360 mm
Net available as an option.
Standard frame thickness of 2 mm. 3 mm available as an option.
For example wall installation DSH
Size: width 600 mm, height 600 mm
= face area: width 586 mm, height 470 mm
PART | MATERIAL | FINISHING |
Droplet separator | Aluminium EN AW 6060 | Painted RAL9010, C3 acc. standard* ISO 12944-2 as standard |
Droplet separator | Stainless steel EN 1.4404 (AISI 316L) | Painted as an option |
Mask louvre | Aluminium EN AW 5754 / AW 6060 | Painted RAL9010, C3 acc. standard* ISO 12944-2 as standard |
Mask louvre | Stainless steel EN 1.4404 (AISI 316L) | Painted as an option |
Frame | Aluminium EN AW 5754 | Painted RAL9010, C3 acc. standard* ISO 12944-2 as standard |
Frame | Stainless steel EN 1.4404 (AISI 316L) | Painted as an option |
Net | Stainless steel EN 1.4404 (AISI 316L) | – |
Filter | ISO Coarse 70% panel filter or ePM2,5 65% bag filter, other types available on request |
– |
*) C3 durability of 7-15 years. C5-M with the durability of 15-25 years durability, available as an option.

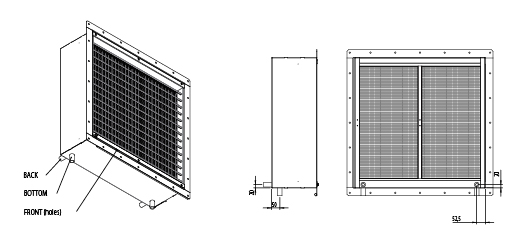

Single-stage units are supplied with front drain holes or with drainage pipes. Two and three-stage units are normally supplied with a EN 1.4404 manometric drain trap to prevent unfiltered air by-passing the droplet separator.
Weld-on nipple | L | A | d1 | d2 | |
Size | mm | mm | mm | mm | |
Aluminium | 1/2 | 50 | 20 | 15 | 22 |
3/4 | 50 | 20 | 20 | 28 | |
1 | 60 | 25 | 25 | 35 | |
Stainless steel AISI 316 | 1/2 | 35 | 15 | 16 | 21 |
3/4 | 40 | 15 | 22 | 27 | |
1 | 40 | 20 | 26.5 | 34 |
Standard size is 3/4 “. 1/2″ and 1” are available as an option. Thread type BSPT (male).

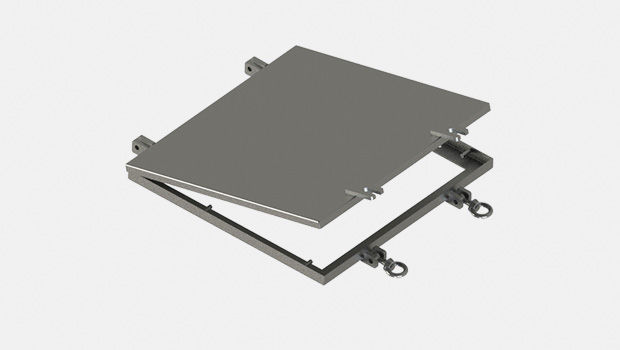

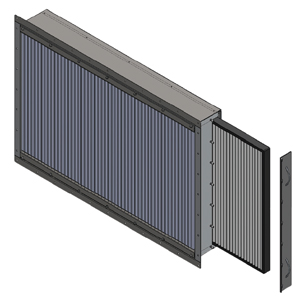

Enables easy access to the filter from the side of the unit. Hatch can be placed to the left side (HL) or the right side (HR) of the DSH. (ISO Coarse 70% panel filter in the picture).
Panel filters are manufactured of progressive thermally smoothened synthetic polyester having high dust holding capacity and constancy for humidity. The filters are used in general ventilation system for air purification.
The materials of the synthetic fine filters are high-quality and durable, progressive mounted synthetic fibres. The filters can be used in example for air purification of intake air.
Halton Marine also offers ATEX approved filters for droplet separators.
Halton droplet separator can be connected to a Halton Marine fire damper with or without a connection piece. In both cases the construction is modified to fit the damper. Connecting DSH together with a damper must be mentioned when ordering products. Special flanges and drilling patterns are available for all models on request. The structural flexibility of dampers and high-quality combined with a wide range of accessories (including ex-actuators) and special steels, enable Halton Marine to offer tailored solutions for its customers. Combining Halton Marine droplet separator to damper offers customers a compact solution for air intake that also saves space. The products are recommended to be connected together at Halton Marine factory.
Weathertight hatch is used e.g. to shut down the intake close to the waterline in the event of rough seas.

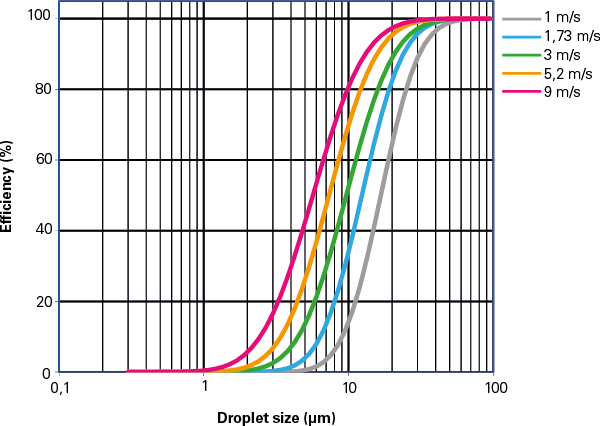

Effectiveness for removal of simulated rain
EN 13030:2001
Rainfall rate: 75 (l/h/m2), (75 mm/h)
Vertical installation
H/HEIGHT (mm) | B/WIDTH (mm) | |||||||||||||
200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
200 | 1,7 | 2,1 | 3,1 | 3,9 | 4,8 | 5,8 | 6,7 | 7,6 | 8,6 | 9,4 | 10,3 | 11,3 | 12,2 | 13,0 |
300 | 2,4 | 2,9 | 4,4 | 5,6 | 6,8 | 8,3 | 9,5 | 10,8 | 12,2 | 13,5 | 14,7 | 16,2 | 17,4 | 18,6 |
400 | 3,1 | 3,7 | 5,7 | 7,3 | 8,9 | 10,8 | 12,4 | 14,0 | 15,9 | 17,5 | 19,1 | 21,0 | 22,6 | 24,2 |
500 | 3,9 | 4,6 | 7,0 | 8,9 | 10,9 | 13,3 | 15,2 | 17,2 | 19,6 | 21,5 | 23,5 | 25,9 | 27,8 | 29,8 |
600 | 4,6 | 5,4 | 8,3 | 10,6 | 12,9 | 15,8 | 18,1 | 20,4 | 23,3 | 25,6 | 27,9 | 30,8 | 33,0 | 35,3 |
700 | 5,3 | 6,3 | 9,6 | 12,3 | 14,9 | 18,3 | 20,9 | 23,6 | 27,0 | 29,6 | 32,2 | 35,6 | 38,3 | 40,9 |
800 | 6,0 | 7,1 | 10,9 | 13,9 | 16,9 | 20,8 | 23,8 | 26,8 | 30,6 | 33,6 | 36,6 | 40,5 | 43,5 | 46,5 |
900 | 6,7 | 7,9 | 12,3 | 15,6 | 19,0 | 23,3 | 26,6 | 30,0 | 34,3 | 37,7 | 41,0 | 45,4 | 48,7 | 52,1 |
1000 | 7,5 | 8,8 | 13,6 | 17,3 | 21,0 | 25,8 | 29,5 | 33,2 | 38,0 | 41,7 | 45,4 | 50,2 | 53,9 | 57,6 |
1100 | 8,2 | 9,6 | 14,9 | 19,0 | 23,0 | 28,3 | 32,4 | 36,4 | 41,7 | 45,7 | 49,8 | 55,1 | 59,1 | 63,2 |
1200 | 8,9 | 10,5 | 16,2 | 20,6 | 25,0 | 30,8 | 35,2 | 39,6 | 45,4 | 49,8 | 54,2 | 59,9 | 64,4 | 68,8 |
The weights on the table are indicative and do not include the filter.
H/HEIGHT (mm) | B/WIDTH (mm) | |||||||||||||
200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
200 | 2,3 | 3,3 | 4,5 | 5,5 | 6,5 | 7,5 | 8,6 | 9,6 | 10,6 | 11,6 | 12,8 | 13,8 | 14,8 | 15,8 |
300 | 3,4 | 4,9 | 6,6 | 8,1 | 9,6 | 11,1 | 12,8 | 14,3 | 15,7 | 17,2 | 18,9 | 20,4 | 21,9 | 23,4 |
400 | 4,5 | 6,4 | 8,8 | 10,7 | 12,7 | 14,6 | 16,9 | 18,9 | 20,8 | 22,8 | 25,1 | 27,1 | 29,0 | 31,0 |
500 | 5,6 | 8,0 | 10,9 | 13,3 | 15,8 | 18,2 | 21,1 | 23,5 | 25,9 | 28,4 | 31,3 | 33,7 | 36,1 | 38,6 |
600 | 6,6 | 9,5 | 13,0 | 15,9 | 18,8 | 21,7 | 25,2 | 28,1 | 31,0 | 33,9 | 37,5 | 40,3 | 43,2 | 46,1 |
700 | 7,7 | 11,1 | 15,2 | 18,6 | 21,9 | 25,3 | 29,4 | 32,8 | 36,1 | 39,5 | 43,6 | 47,0 | 50,4 | 53,7 |
800 | 8,8 | 12,6 | 17,3 | 21,2 | 25,0 | 28,9 | 33,6 | 37,4 | 41,2 | 45,1 | 49,8 | 53,6 | 57,5 | 61,3 |
900 | 9,9 | 14,2 | 19,5 | 23,8 | 28,1 | 32,4 | 37,7 | 42,0 | 46,4 | 50,7 | 56,0 | 60,3 | 64,6 | 68,9 |
1000 | 10,9 | 15,7 | 21,6 | 26,4 | 31,2 | 36,0 | 41,9 | 46,7 | 51,5 | 56,2 | 62,1 | 66,9 | 71,7 | 76,5 |
1100 | 12,0 | 17,3 | 23,8 | 29,0 | 34,3 | 39,6 | 46,0 | 51,3 | 56,6 | 61,8 | 68,3 | 73,6 | 78,8 | 84,1 |
1200 | 13,1 | 18,8 | 25,9 | 31,6 | 37,4 | 43,1 | 50,2 | 55,9 | 61,7 | 67,4 | 74,5 | 80,2 | 85,9 | 91,7 |
The weights on the table are indicative and do not include the filter.
H/HEIGHT (mm) | B/WIDTH (mm) | |||||||||||||
200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
200 | 2,6 | 3,7 | 4,9 | 6,0 | 7,2 | 8,3 | 9,4 | 10,6 | 11,7 | 12,9 | 14,0 | 15,1 | 16,3 | 17,4 |
300 | 3,9 | 5,7 | 7,4 | 9,1 | 10,8 | 12,6 | 14,3 | 16,0 | 17,8 | 19,5 | 21,2 | 23,0 | 24,7 | 26,4 |
400 | 5,2 | 7,6 | 9,9 | 12,2 | 14,5 | 16,8 | 19,2 | 21,5 | 23,8 | 26,1 | 28,5 | 30,8 | 33,1 | 35,4 |
500 | 6,5 | 9,5 | 12,4 | 15,3 | 18,2 | 21,1 | 24,0 | 27,0 | 29,9 | 32,8 | 35,7 | 38,6 | 41,5 | 44,4 |
600 | 7,9 | 11,4 | 14,9 | 18,4 | 21,9 | 25,4 | 28,9 | 32,4 | 35,9 | 39,4 | 42,9 | 46,4 | 49,9 | 53,4 |
700 | 9,2 | 13,3 | 17,4 | 21,5 | 25,6 | 29,7 | 33,8 | 37,9 | 42,0 | 46,1 | 50,2 | 54,3 | 58,4 | 62,5 |
800 | 10,5 | 15,2 | 19,9 | 24,6 | 29,2 | 33,9 | 38,6 | 43,3 | 48,0 | 52,7 | 57,4 | 62,1 | 66,8 | 71,5 |
900 | 11,8 | 17,1 | 22,4 | 27,6 | 32,9 | 38,2 | 43,5 | 48,8 | 54,1 | 59,3 | 64,6 | 69,9 | 75,2 | 80,5 |
1000 | 13,1 | 19,0 | 24,9 | 30,7 | 36,6 | 42,5 | 48,4 | 54,2 | 60,1 | 66,0 | 71,9 | 77,7 | 83,6 | 89,5 |
1100 | 14,4 | 20,9 | 27,4 | 33,8 | 40,3 | 46,8 | 53,2 | 59,7 | 66,2 | 72,6 | 79,1 | 85,6 | 92,0 | 98,5 |
1200 | 15,7 | 22,8 | 29,9 | 36,9 | 44,0 | 51,0 | 58,1 | 65,1 | 72,2 | 79,3 | 86,3 | 93,4 | 100,4 | 107,5 |
The weights on the table are indicative and do not include the filter.
H/HEIGHT (mm) | B/WIDTH (mm) | |||||||||||||
200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
200 | 2,8 | 4,1 | 5,2 | 6,3 | 7,6 | 8,7 | 9,9 | 11,1 | 12,2 | 13,4 | 14,6 | 15,8 | 16,9 | 18,2 |
300 | 3,8 | 5,6 | 7,2 | 8,8 | 10,6 | 12,1 | 13,7 | 15,5 | 17,1 | 18,6 | 20,4 | 22,0 | 23,6 | 25,4 |
400 | 4,8 | 7,2 | 9,2 | 11,2 | 13,5 | 15,5 | 17,5 | 19,9 | 21,9 | 23,9 | 26,2 | 28,2 | 30,2 | 32,6 |
500 | 5,9 | 8,8 | 11,2 | 13,6 | 16,5 | 19,0 | 21,4 | 24,3 | 26,7 | 29,1 | 32,1 | 34,5 | 36,9 | 39,8 |
600 | 6,9 | 10,3 | 13,2 | 16,0 | 19,5 | 22,4 | 25,2 | 28,7 | 31,5 | 34,4 | 37,9 | 40,7 | 43,6 | 47,0 |
700 | 7,9 | 11,9 | 15,2 | 18,5 | 22,5 | 25,8 | 29,1 | 33,1 | 36,4 | 39,6 | 43,7 | 46,9 | 50,2 | 54,2 |
800 | 8,9 | 13,5 | 17,2 | 20,9 | 25,5 | 29,2 | 32,9 | 37,5 | 41,2 | 44,9 | 49,5 | 53,2 | 56,9 | 61,5 |
900 | 9,9 | 15,0 | 19,2 | 23,3 | 28,4 | 32,6 | 36,7 | 41,9 | 46,0 | 50,2 | 55,3 | 59,4 | 63,6 | 68,7 |
1000 | 10,9 | 16,6 | 21,2 | 25,8 | 31,4 | 36,0 | 40,6 | 46,2 | 50,8 | 55,4 | 61,1 | 65,6 | 70,2 | 75,9 |
1100 | 12,0 | 18,2 | 23,2 | 28,2 | 34,4 | 39,4 | 44,4 | 50,6 | 55,6 | 60,7 | 66,9 | 71,9 | 76,9 | 83,1 |
1200 | 13,0 | 19,7 | 25,2 | 30,6 | 37,4 | 42,8 | 48,3 | 55,0 | 60,5 | 65,9 | 72,7 | 78,1 | 83,6 | 90,3 |
The weights on the table are indicative and do not include the filter.
H/HEIGHT (mm) | B/WIDTH (mm) | |||||||||||||
200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
200 | 3,1 | 4,3 | 5,7 | 7,0 | 8,3 | 9,5 | 10,9 | 12,2 | 13,5 | 14,7 | 16,1 | 17,4 | 18,7 | 19,9 |
300 | 4,3 | 6,1 | 8,2 | 10,0 | 11,8 | 13,7 | 15,7 | 17,5 | 19,4 | 21,2 | 23,2 | 25,0 | 26,9 | 28,7 |
400 | 5,6 | 7,9 | 10,7 | 13,0 | 15,4 | 17,8 | 20,5 | 22,9 | 25,2 | 27,6 | 30,3 | 32,7 | 35,1 | 37,4 |
500 | 6,8 | 9,7 | 13,2 | 16,1 | 19,0 | 21,9 | 25,3 | 28,2 | 31,1 | 34,0 | 37,4 | 40,4 | 43,3 | 46,2 |
600 | 8,1 | 11,6 | 15,6 | 19,1 | 22,6 | 26,0 | 30,1 | 33,6 | 37,0 | 40,5 | 44,5 | 48,0 | 51,5 | 54,9 |
700 | 9,3 | 13,4 | 18,1 | 22,1 | 26,1 | 30,1 | 34,9 | 38,9 | 42,9 | 46,9 | 51,7 | 55,7 | 59,7 | 63,7 |
800 | 10,6 | 15,2 | 20,6 | 25,1 | 29,7 | 34,3 | 39,7 | 44,2 | 48,8 | 53,4 | 58,8 | 63,3 | 67,9 | 72,4 |
900 | 11,9 | 17,0 | 23,0 | 28,2 | 33,3 | 38,4 | 44,5 | 49,6 | 54,7 | 59,8 | 65,9 | 71,0 | 76,1 | 81,2 |
1000 | 13,1 | 18,8 | 25,5 | 31,2 | 36,8 | 42,5 | 49,2 | 54,9 | 60,6 | 66,2 | 73,0 | 78,6 | 84,3 | 90,0 |
1100 | 14,4 | 20,6 | 28,0 | 34,2 | 40,4 | 46,6 | 54,0 | 60,2 | 66,5 | 72,7 | 80,1 | 86,3 | 92,5 | 98,7 |
1200 | 15,6 | 22,4 | 30,5 | 37,2 | 44,0 | 50,7 | 58,8 | 65,6 | 72,3 | 79,1 | 87,2 | 93,9 | 100,7 | 107,5 |
The weights on the table are indicative and do not include the filter.
H/HEIGHT (mm) | B/WIDTH (mm) | |||||||||||||
200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |
200 | 3,3 | 4,7 | 6,1 | 7,5 | 8,9 | 10,3 | 11,7 | 13,1 | 14,5 | 15,9 | 17,3 | 18,7 | 20,1 | 21,5 |
300 | 4,8 | 6,9 | 9,0 | 11,0 | 13,1 | 15,2 | 17,2 | 19,3 | 21,4 | 23,4 | 25,5 | 27,6 | 29,7 | 31,7 |
400 | 6,3 | 9,1 | 11,8 | 14,5 | 17,3 | 20,0 | 22,7 | 25,5 | 28,2 | 30,9 | 33,7 | 36,4 | 39,2 | 41,9 |
500 | 7,8 | 11,2 | 14,6 | 18,0 | 21,4 | 24,8 | 28,2 | 31,6 | 35,0 | 38,5 | 41,9 | 45,3 | 48,7 | 52,1 |
600 | 9,3 | 13,4 | 17,5 | 21,5 | 25,6 | 29,7 | 33,7 | 37,8 | 41,9 | 46,0 | 50,0 | 54,1 | 58,2 | 62,2 |
700 | 10,8 | 15,5 | 20,3 | 25,0 | 29,8 | 34,5 | 39,2 | 44,0 | 48,7 | 53,5 | 58,2 | 62,9 | 67,7 | 72,4 |
800 | 12,3 | 17,7 | 23,1 | 28,5 | 33,9 | 39,3 | 44,7 | 50,1 | 55,6 | 61,0 | 66,4 | 71,8 | 77,2 | 82,6 |
900 | 13,8 | 19,9 | 25,9 | 32,0 | 38,1 | 44,2 | 50,2 | 56,3 | 62,4 | 68,5 | 74,5 | 80,6 | 86,7 | 92,8 |
1000 | 15,3 | 22,0 | 28,8 | 35,5 | 42,3 | 49,0 | 55,7 | 62,5 | 69,2 | 76,0 | 82,7 | 89,5 | 96,2 | 102,9 |
1100 | 16,8 | 24,2 | 31,6 | 39,0 | 46,4 | 53,8 | 61,2 | 68,6 | 76,1 | 83,5 | 90,9 | 98,3 | 105,7 | 113,1 |
1200 | 18,3 | 26,3 | 34,4 | 42,5 | 50,6 | 58,7 | 66,7 | 74,8 | 82,9 | 91,0 | 99,1 | 107,1 | 115,2 | 123,3 |
The weights on the table are indicative and do not include the filter.
Weight tables of DSH and DSH with a mask louvre (ML) in stainless steel with pitch spacing of 18, 23 and 28 mm are available in the datasheet.
(S)=Model
(A) One stage
(B) Two stages with ISO Coarse 70% panel filter
(W)=Width
200…1500 (1mm step)
(H)=Height
200…1500 (1mm step)
200…1200 (one stage model)
(MA)=Material
(AS) Stainless steel (EN 1.4404)
(AL) Aluminium (Default paint RAL9010)
(FT)=Frame Type
(S) Standard
(D) Duct installation
(ML)=Mask Louver
(N) No
(Y) Yes
(PS)=Profile Spacing
(A) 28mm
(B) 23mm
(C) 18mm
(WA)=Water Drainage
(A) Front
(B) Bottom
(SH)=Service Hatch
(NA) No hatch
(HL) Hatch on left
(HR) Hatch on right
(AC)=Accessories
(ME) Mesh
(MD) Manometric drain trap
(PG) Differential pressure gauge
Code example
DSH/A-1000-1000,MA=AS,FT=S,ML=N,PS=A,WA=A,SH=NA,ZT=N,AC=ME,PG
