A New Tighter Fire Damper for Oil & Gas Applications

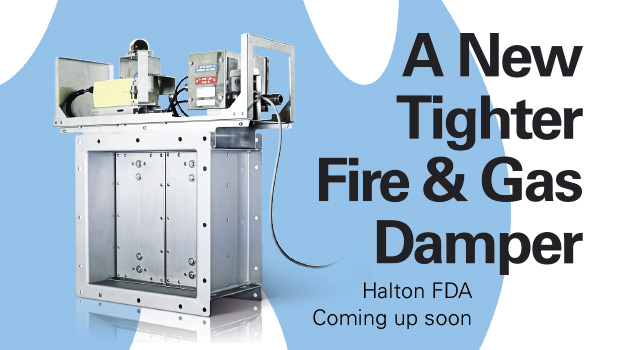

The rectangular fire and gas damper, known as FDA, is a type-approved class A0(A60) fire damper designed for use in oil & gas ventilation systems to prevent the spread of fire inside ductwork.
01.12.2015

Fire dampers play an important role in improving safety on board offshore platforms and vessels. Halton Marine believes in high-quality fire dampers and introduces a brand new A0(A60) class fire damper in early 2016. The rectangular fire and gas damper, known as FDA, is a type-approved class A0(A60) fire damper designed for use in oil & gas ventilation systems to prevent the spread of fire inside ductwork. When tightness is an issue, FDA is also a perfect choice for different types of ships.

In the event of a temperature rise in a ductwork system, the fuse trips and cuts off either the voltage to the spring return actuator (electrical model) or the operating pressure to the spring return actuator (pneumatic model), allowing the spring to close the damper blades. The fire damper opens automatically when the fuse has been changed and the voltage to the motor (Halton fire damper type FDA-EL) or pneumatic air supply (Halton fire damper type FDA-PNR) is re-established.

FDA briefly

  • A closed Halton FDA fulfills the requirements of leakage class 2 (sizes <300x300mm) to class 3 (sizes > 300×300 mm (EN1751:1998). Casing leakage class C.
  • Stronger blade structure than ever before
  • Blades with stainless spring steel seals for low leakage in normal conditions and thermal expansion graphite seals (effective from 150 degrees Celsius) to seal the damper in case of fire
  • Oil bronze bearings and ISO flanges as standard
