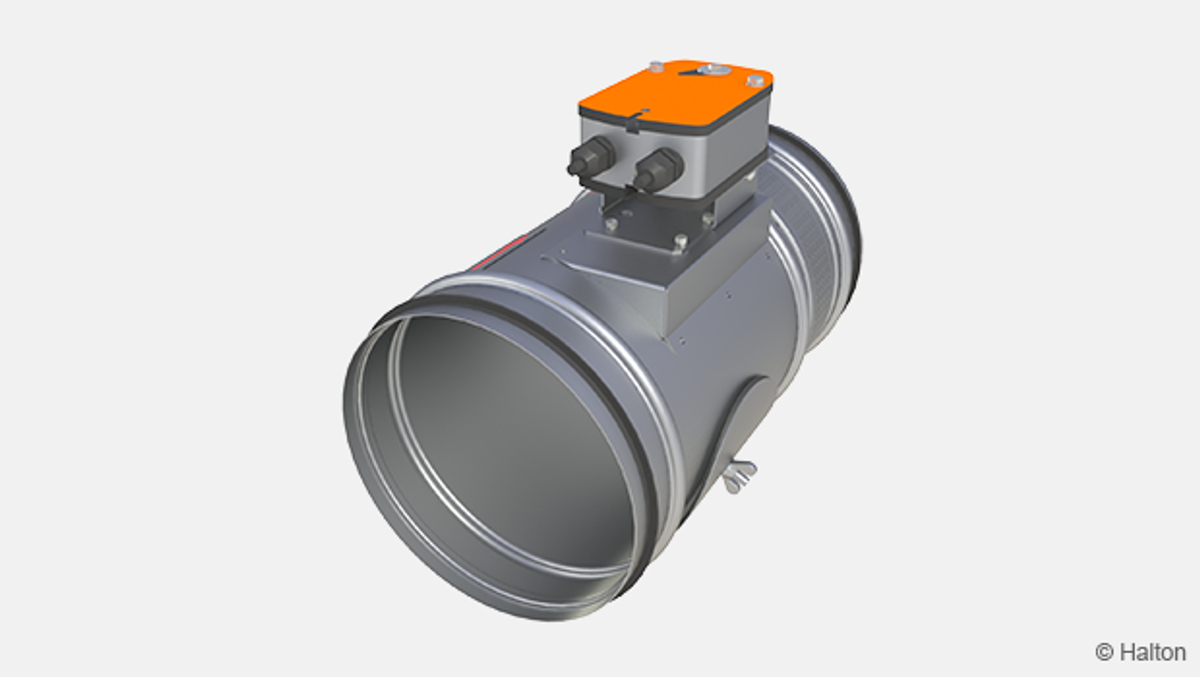

Halton Sec SSC – Smoke control damper (AAmulti)

Overview

This multi compartment smoke control damper for automatically (AA) activated systems is one of the lightest in the market. Light construction makes installation easy. The smoke control damper is suitable for vertical and horizontal duct installation in concrete, masonry or lightweight structure. Can also be installed direct to the surface of the structure at the end of the smoke extract duct. Fire resistance class is provided up to EI 120 S requirements

Features

• Supplied with electrical non-spring return actuator (24 V or 230 V)
• Installation to multi zone fire compartment with automatically activated systems (AA)
• Sizes from Ø200 mm up to 630 mm are available
• Maximum air speed through smoke control damper in open position is 15 m/s
• Suitability for use in smoke extraction ducts with a maximum of 1500 Pa under pressure
• Frame construction is galvanised steel as standard. Stainless options available on request.
• No spare parts or additional installation frames needed, regardless of installation method

Installation options

• Suitability for wall or floor/ceiling installation in vertical or horizontal position
• CE marked for installation in concrete, masonry or lightweight structures with fire resistance classes of EI 120, EI 90, EI 60

Standards

This product complies with the following standards:

• CE certified according to product standard EN 12101-8
• Fire classification according to EN 13501-4 standard
  EI 120 (v_ew– h_ow– i↔o) S 1500C₁₀₀₀₀ AAMulti
• Fire testing according to EN 1366-10
• CE certificate of constancy of performance, No: P-1391-CPR-2018/0208
• Declaration of Performance, No: 10038-SSC-2019/01/01
• Smoke control damper casing tightness class C according to EN 1751
• Leakage through closed damper blade fulfils class 2 according to EN 1751

Dimensions and weight

Material

Operating models

Electric actuator

The Halton Sec SSC smoke control damper is equipped with an electric actuator, 24 V or 230 V (no spring return or fuse aloud). The actuator is equipped with built-in limit switches for indicating both open and closed positions.

The smoke control damper must be connected to a common fire alarm or building automation system. It can be used in automatically (AA) activated systems.

Function

The Halton Sec SSC multi compartment smoke control damper is CE certified for vertical (v_e) and horizontal (h_o) installation in concrete, masonry or lightweight structures. It fulfils the fire resistance class up to EI 120 (v_ew -h_ow – i↔o) S 1500C₁₀₀₀₀ AAmulti requirements

Smoke control dampers allow smoke to be extracted from the multi compartment smoke zone by dedicated smoke extraction systems. In case of fire sequence of operation is important, smoke extract fans should not be started before the smoke control dampers are opened.

The smoke control damper must be connected to a common fire alarm or building automation system. It can be used in automatically (AA) activated systems.

The smoke control damper is equipped with an electric actuator 24 V or 230 V (no spring return or fuse aloud). The actuator is equipped with built-in limit switches for both open and closed position.

Installation

Please see/download Installation Guide for this smoke control damper from section Downloads.

Servicing

No regular maintenance is required for the product.

To ensure proper operation of smoke control dampers, an inspection must be carried out regularly according to local building codes. The minimum recommended inspection period is every 6 months. Documentation of testing must be saved for future needs.

The smoke control damper is equipped with one inspection hatch, enabling the possibility to check the position of the damper blade.

Upon failure during testing of the fire damper, maintenance service shall be ordered from an authorised Halton representative to ensure appropriate operation of the product.

Specification

The multi compartment smoke control damper is CE certified and marked according to the standard EN 12101-8 and fire tested according to the EN 1366-10 standard.

A smoke control damper of maximum fire resistence class EI 120 (v_ew– h_ow– i↔o) S 1500C₁₀₀₀₀ AAMulti requirements.

The smoke control damper casing complies with the tightness requirements for EN 1751 class C. Leakage through closed damper blade fulfils class 2 according to EN 1751.

The casing of the smoke control damper is made of galvanised or stainless steel.
The blade of the smoke control damper is made of fire resistant asbestos free board (mineral fibre).

The smoke control damper can be installed in either horizontal or vertical position to wall or floor/ceiling.

The actuator is equipped with built-in limit switches for both open and closed position.

The smoke control damper is equipped with one inspection hatch.

Order code

SSC/D; MA-OP-ZT

D  = Size of duct connection [mm]
200, 250, 315, 355, 400, 500, 630

Other options and accessories

MA = Material
GS    Galvanised Steel

OP = Operating model
R1     BEN24, 24 V, 15 Nm
R2     BEN230, 230 V, 15 Nm

ZT  = Tailored product
N       No
Y       Yes (ETO)

Order code example

SSC-200, MA=GS, OP=R1, ZT=N
