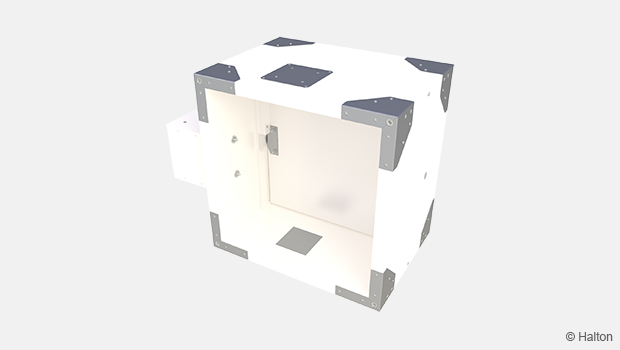

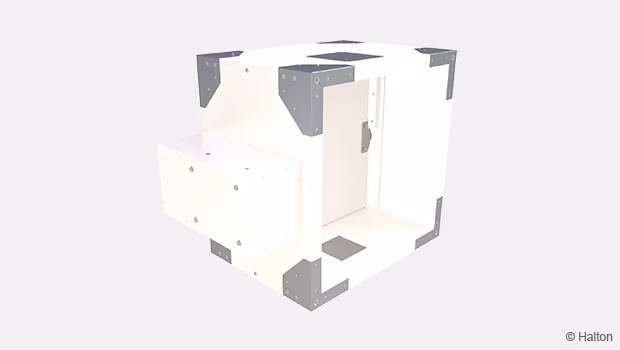

Halton Sec SMR – Smoke control damper (MAmulti, AAmulti)
This CE marked multi compartment smoke control damper is the most trusted choice in the market for demanding enviroments. It is manufactured of mineral fibre and this fire proof material enables the opening of blade during fire.
The smoke control damper is suitable for vertical and horizontal installation on smoke extract ducts and concrete, masonry or lightweight structures. Can also be installed direct to the surface of the structure.
Fire resistance class for all installation options is provided up to EI 120 S requirements.
- For automatically (AA) or manually (MA) activated systems
- Suitability for all installation methods
- Sizes from 200×200 mm up to 1600×1000 mm are available
Overview
This multi compartment smoke control damper is the most trusted choice in the market for demanding enviroments. It is manufactured of mineral fibre and this fire proof material enables the opening of blade during fire. The smoke control damper is suitable for vertical and horizontal installation on smoke extract ducts and concrete, masonry or lightweight structures. Can also be installed direct to the surface of the structure. Fire resistance class for all installation options is provided up to EI 120 S requirements.
Features
- Installation to multi zone fire compartment for automatically (AA) or manually (MA) activated systems
- Supplied with electrical non-spring return actuator (24 V or 230 V)
- Sizes from 200×200 mm up to 1600×1000 mm are available
- Maximum air speed through smoke control damper in open position is 12 m/s
- Suitability for use in smoke extraction ducts with a maximum of 1500 Pa under pressure
- Damper casings and blades are made of fire resistant asbestos free boards (mineral fibres), fasteners are galvanized steel
- No spare parts or additional installation frames needed, regardless of installation method
Installation options
- Suitability for all installation methods
- CE marked for installation in concrete, masonry or lightweight sructure with fire resistance classes of EI 120, EI 90 or EI 60
Standards
This product complies with the following standards:
- CE certified according to product standard EN 12101-8
- Fire classification according to EN 13501-4 standard:
- Horizontal duct
- EI 120 (ved– i↔o) S 1000C10000 AAmulti
- EI 120 (ved– i↔o) S 1000C10000 MAmulti
- Vertical duct
- EI 120 (hod– i↔o) S 1000C10000 AAmulti
- EI 120 (hod– i↔o) S 1000C10000 MAmulti
- Walls
- EI 120 (vew– i↔o) S 1000C10000 AAmulti
- EI 90 (vew– i↔o) S 1500C10000 AAmulti
- Floor/ceiling
- EI 120 (how– i↔o) S 1000C10000 AAmulti
- EI 90 (how– i↔o) S 1500C10000 AAmulti
- Horizontal duct
- Fire testing according to EN 1366-10
- CE certificate of constancy of performance, No P-1391-CPR-2018/0206
- Declaration of Performance, No: 10037-SMR-2019/01/01
- Smoke control damper casing tightness class C according to EN 1751
- Leakage through closed damper blade fulfils class 2 according to EN 1751
Dimensions and weight
| W = Width [mm] | H = Height [mm] |
| 200, 250, 300, 350, 400, 450, 500, 550, 600, 700, 800, +100, … 1600 | 200, 250, 300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000 |
Weight [kg]
With flanges
| H [mm] | W [mm] | |||||||||||
| 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 900 | |
| 200 | 44.1 | 47.5 | 49.0 | 51.7 | 55.5 | 58.8 | 58.7 | 62.8 | 65.9 | 68.0 | 76.4 | 81.1 |
| 250 | 47.5 | 51.2 | 52.7 | 55.6 | 59.5 | 62.9 | 62.7 | 67.0 | 70.4 | 72.5 | 81.5 | 86.4 |
| 300 | 51.0 | 54.8 | 56.3 | 59.4 | 63.4 | 67.1 | 66.9 | 71.4 | 74.9 | 77.2 | 86.5 | 91.7 |
| 350 | 54.8 | 58.7 | 60.3 | 63.5 | 68.0 | 71.8 | 71.5 | 76.3 | 79.9 | 82.2 | 92.1 | 97.6 |
| 400 | 58.1 | 62.1 | 63.7 | 66.9 | 71.5 | 75.5 | 75.2 | 80.1 | 83.9 | 86.4 | 96.6 | 102.2 |
| 450 | 61.4 | 65.7 | 67.3 | 70.8 | 75.5 | 79.7 | 79.2 | 84.5 | 88.4 | 90.9 | 101.6 | 107.5 |
| 500 | 64.9 | 69.4 | 71.1 | 74.6 | 79.6 | 83.9 | 83.4 | 88.9 | 92.9 | 95.5 | 106.8 | 112.8 |
| 550 | 68.4 | 73.0 | 74.8 | 78.5 | 86.6 | 88.0 | 87.5 | 93.3 | 97.5 | 100.1 | 111.8 | 118.1 |
| 600 | 72.0 | 76.7 | 78.4 | 82.2 | 87.6 | 92.3 | 91.6 | 97.5 | 102.0 | 104.7 | 116.8 | 123.4 |
| 700 | – | – | – | – | – | – | – | – | 111.0 | 113.8 | 126.9 | 135.1 |
| 800 | – | – | – | – | – | – | – | – | 120.0 | 124.1 | 138.2 | 145.7 |
| 900 | – | – | – | – | – | – | – | – | 130.4 | 133.2 | 148.4 | 156.2 |
| 1000 | – | – | – | – | – | – | – | – | 139.4 | 142.4 | 158.5 | 166.8 |
| H [mm] | W [mm] | ||||||
| 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | |
| 200 | 85.7 | – | – | – | – | – | – |
| 250 | 91.2 | – | – | – | – | – | – |
| 300 | 96.8 | – | – | – | – | – | – |
| 350 | 102.8 | – | – | – | – | – | – |
| 400 | 107.7 | – | – | – | – | – | – |
| 450 | 113.2 | – | – | – | – | – | – |
| 500 | 118.7 | – | – | – | – | – | – |
| 550 | 124.1 | – | – | – | – | – | – |
| 600 | 129.7 | – | – | – | – | – | – |
| 700 | 141.8 | 147.0 | 164.3 | 168.7 | 173.2 | 181.9 | 190.7 |
| 800 | 152.8 | 158.4 | 176.8 | 181.5 | 186.3 | 195.6 | 205.0 |
| 900 | 163.9 | 169.6 | 189.4 | 198.2 | 207.2 | 217.2 | 227.1 |
| 1000 | 174.9 | 180.9 | 204.6 | 212.4 | 220.3 | 230.9 | 241.4 |
– = Size not available as standard. Please contact Halton Sales.
Without flanges
| H [mm] | W [mm] | |||||||||||
| 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 900 | |
| 200 | 40.9 | 43.9 | 45.2 | 47.7 | 51.2 | 54.2 | 55.0 | 57.9 | 60.2 | 66.4 | 70.4 | 74.8 |
| 250 | 44.0 | 47.3 | 48.8 | 51.3 | 55.0 | 58.1 | 58.9 | 61.9 | 65.0 | 71.0 | 75.2 | 79.8 |
| 300 | 47.3 | 50.6 | 52.1 | 54.9 | 58.8 | 62.0 | 62.9 | 66.0 | 69.3 | 75.6 | 79.9 | 84.7 |
| 350 | 50.8 | 54.4 | 55.9 | 58.8 | 62.9 | 66.3 | 67.1 | 70.5 | 73.9 | 80.6 | 85.3 | 90.2 |
| 400 | 53.6 | 57.4 | 58.9 | 62.0 | 66.2 | 69.9 | 70.8 | 74.3 | 77.8 | 84.8 | 89.5 | 94.8 |
| 450 | 56.8 | 60.8 | 62.4 | 65.5 | 69.9 | 73.8 | 74.6 | 78.3 | 82.0 | 89.4 | 94.3 | 99.8 |
| 500 | 60.1 | 64.1 | 65.8 | 69.1 | 73.7 | 77.7 | 78.6 | 82.4 | 86.3 | 93.9 | 99.2 | 104.9 |
| 550 | 63.2 | 67.5 | 69.2 | 72.6 | 77.5 | 81.6 | 82.5 | 86.5 | 90.5 | 98.5 | 103.9 | 109.9 |
| 600 | 66.4 | 70.9 | 72.5 | 76.2 | 81.3 | 85.5 | 94.4 | 90.6 | 94.8 | 103.1 | 108.7 | 115.0 |
| 700 | – | – | – | – | – | – | – | – | 103.3 | 112.3 | 118.3 | 126.2 |
| 800 | – | – | – | – | – | – | – | – | 111.8 | 122.8 | 129.2 | 136.3 |
| 900 | – | – | – | – | – | – | – | – | 121.6 | 131.9 | 138.7 | 146.3 |
| 1000 | – | – | – | – | – | – | – | – | 130.1 | 141.0 | 148.4 | 156.4 |
| H [mm] | W [mm] | ||||||
| 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | |
| 200 | 80.2 | – | – | – | – | – | – |
| 250 | 85.6 | – | – | – | – | – | – |
| 300 | 90.8 | – | – | – | – | – | – |
| 350 | 96.7 | – | – | – | – | – | – |
| 400 | 101.5 | – | – | – | – | – | – |
| 450 | 106.9 | – | – | – | – | – | – |
| 500 | 112.2 | – | – | – | – | – | – |
| 550 | 117.6 | – | – | – | – | – | – |
| 600 | 122.9 | – | – | – | – | – | – |
| 700 | 134.8 | 143.4 | 156.4 | 159.3 | 162.2 | 170.4 | 178.7 |
| 800 | 145.4 | 154.7 | 168.6 | 171.7 | 174.8 | 183.7 | 192.5 |
| 900 | 156.1 | 166.1 | 180.8 | 187,2 | 195.3 | 204.7 | 214.1 |
| 1000 | 166.8 | 177.4 | 192.9 | 200,4 | 207.9 | 217.9 | 228.0 |
– = Size not available as standard. Please contact Halton sales.
Structure and materials
| Number | Part | Material | Note |
| 1 | Casing | Asbestos free boards made of mineral fibre |
– |
| 2 | Blade | Asbestos free boards made of mineral fibre |
– |
| 3 | Inspection hatch covering |
Asbestos free boards made of mineral fibre |
– |
| 4 | Operating model (actuator) |
– | Actuator cover, asbestos free boards (mineral fibre) |
Operating model
Electric actuator
The Halton Sec SMR smoke control damper is equipped with an electric actuator, 24 V or 230 V (no spring return or fuse aloud). The actuator is equipped with built-in limit switches for indicating both open and closed positions.
The smoke control damper must be connected to a common fire alarm or building automation system. It can be used in fully automatic (AA) or manual activation (MA) systems.
In case of manually activated system (MA), the non-flammable cables in must be connect to electrical actuator inside the heat insulated cover box.
| Order code | Operating model | Damper sizes (WxH, mm) |
Operating voltage | Limit switch |
| R1 | BEN 24 15 Nm |
200×200 – 1000×400 |
AC/DC 24 V | ✔ |
| R2 | BEN 230 15 Nm |
200×200 – 1000×400 |
AC 230 V | ✔ |
| R3 | BE 24 40 Nm |
600×800 – 1600×800 |
AC/DC 24 V | ✔ |
| R4 | BE 230 40 Nm |
600×800 – 1600×800 |
AC 230 V | ✔ |
| I1 | Schischek InMax 50.75-s 72 Nm |
1300×1000 – 1600×1000 |
24 V / 230 V | ✔ |
Function
The Halton Sec SMR multi compartment smoke control damper is CE certified for vertical (ve) and horizontal (ho) installation in concrete, masonry or lightweight structures and also vertical (ve) and horizontal (ho) smoke extract duct orientations. It fulfils all fire resistance classes up to EI 120 S requirements.
Smoke control dampers allow smoke to be extracted from the multi compartment smoke zone by dedicated smoke extraction systems. In case of fire sequence of operation is important, smoke extract fans should not be started before the smoke control dampers are opened.
The blade of the smoke control damper can be opened during and after fire.
The smoke control damper must be connected to a common fire alarm or building automation system. It can be used in manually (MA) or automatically (AA) activated systems.
In case of manually activated system (MA), the non-flammable cables in must be connect to electrical actuator inside the heat insulated cover box.
The smoke control damper is equipped with an electric actuator 24 V or 230 V (no spring return or fuse aloud). The actuator is equipped with built-in limit switches for both open and closed position.
Installation
Please see/download Installation Guide for this smoke control damper from section Downloads.
Servicing
No regular maintenance is required for the product.
In any case to ensure proper operation of smoke control dampers, an inspection must be carried out regularly according to local building codes. The minimum recommended inspection period is every 6 months. Documentation of testing must be saved for future needs.
The smoke control damper must be connected to a common fire alarm or building automation system.
The smoke control damper is equipped with two inspection hatches, enabling the possibility to check the position of the damper blade.
Upon failure during testing of the fire damper, maintenance service shall be ordered from an authorised Halton representative to ensure appropriate operation of the product.
Specification
The multi compartment smoke control damper is CE certified and marked according to the standard EN 12101-8 and fire tested according to the EN 1366-10 standard.
Smoke control damper of maximum fire resistance class requirements:
- Horizontal duct
- EI 120 (ved– i↔o) S 1000C10000 AAmulti
- EI 120 (ved– i↔o) S 1000C10000 MAmulti
- Vertical duct
- EI 120 (hod– i↔o) S 1000C10000 AAmulti
- EI 120 (hod– i↔o) S 1000C10000 MAmulti
- Walls
- EI 120 (vew– i↔o) S 1000C10000 AAmulti
- EI 90 (vew– i↔o) S 1500C10000 AAmulti
- Floor/ceiling
- EI 120 (how– i↔o) S 1000C10000 AAmulti
- EI 90 (how– i↔o) S 1500C10000 AAmulti
The smoke control damper casing complies with the tightness requirements for EN 1751 class C. Leakage through closed damper blade fulfils class 2 according to EN 1751.
The casing and blade of the smoke control damper is made of fire resistant asbestos free boards (mineral fibre).
The smoke control damper can be installed in either horizontal or vertical position to smoke extract duct, wall or floor/ceiling.
The actuator is equipped with built-in limit switches for both open and closed position.
The smoke control damper is equipped with two inspection hatches, enabling the possibility to check the position of the damper blade.
Order code
SMR/W-H; MA-OP-FL-ZT
W = Width of duct connection [mm]
200, 250, 300, 350, 400, 450, 500, 550, 600, +100, …, 1600
H = Height of duct connection [mm]
200, 250, 300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000
Other options and accessories
MA = Material
MF Asbestos free boards, mineral fibre
OP = Operating models
R1 BEN24, 24 V, 15 Nm
R2 BEN230, 230 V, 15 Nm
R3 BE24, 24 V, 40 Nm
R4 BE230, 230 V, 40 Nm
I1 Inmax 50.75-S, 75 Nm
FL = Flanges
Y Yes
N No
ZT = Tailored product
N No
Y Yes (ETO)
Order code example
SMR-300-300, MA=MF, OP=R2, FL=Y, ZT=N
Downloads
-
Halton Sec SMR – Smoke control damper (MAmulti, AAmulti)
Data
en
-
Halton Sec SMR – Savunhallintapelti (MAmulti, AAmulti)
Data
fi
-
Installation guide – Halton Sec SMR
Data
English (en) -
Declaration of Performance (DoP) – Halton Sec Mighty Rectangular (SMR)
Data
English (en) -
Construction Product Regulation (CPR) – SMR
Data
English (en)
