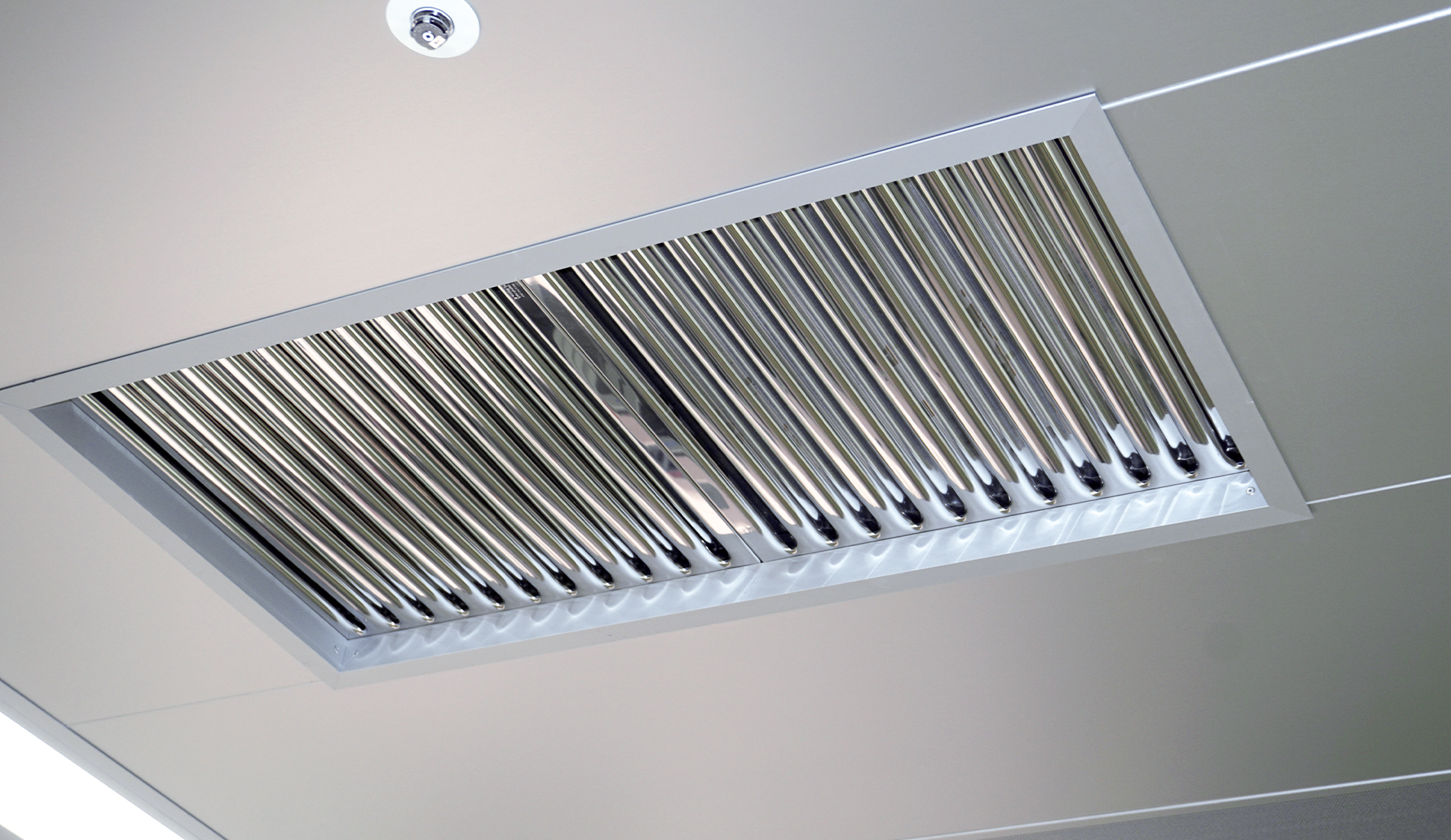

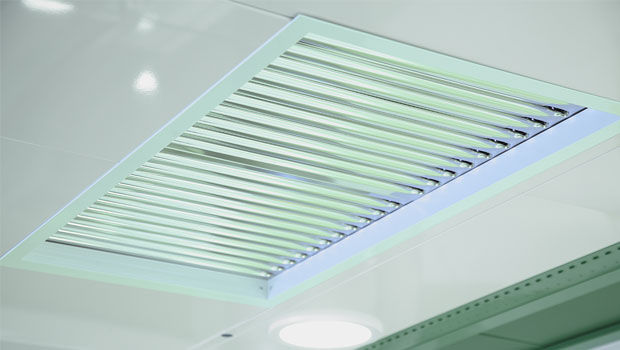

KBO – Extraction box for low emission appliances (CE)

With high efficient FC filters

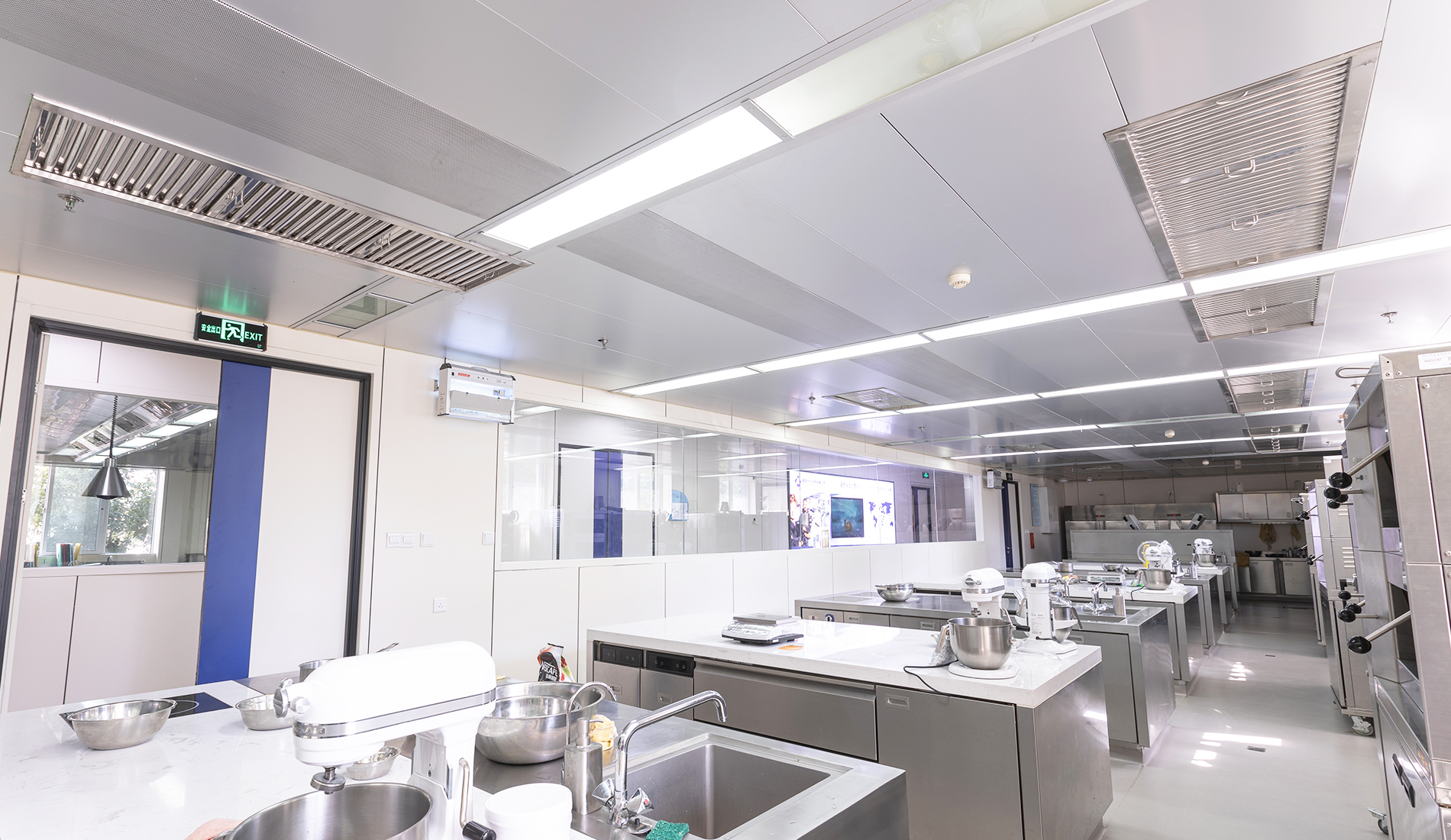

CE Marked (UKCA pending) – Extraction boxes plenums are designed to deal with low emission cooking appliances located outside the cooking area covered by ventilated ceilings (for instance small broilers, small steam ovens, induction hotplates, salamanders etc). They can also be used in the same manner in a kitchen equipped with hood ventilation.

Overview

Extraction boxes are designed to deal with low emission, steam or heat based, appliances located outside the cooking areas (for example coffee machines, glass washers, temperature holding equipment etc). They complement the Capture Jet™ hoods and ventilated ceilings.

  • Plenum in galvanised steel. Peripheral profiles in anodised aluminium.
  • High efficiency FC filters constructed from AISI 304 stainless steel, mirror polished, 1 mm thickness. Constant pressure loss.
  • Three filter sizes available :
    FC 500 x 500 mm, 600 m³/h max per filter @ 55 Pa
    FC 500 x 350 mm, 450 m³/h max per filter @ 55 Pa
    FC 500 x 250 mm, 300 m³/h max per filter @ 55 Pa
  • Up to 7 filters per extraction box.
  • Filter washable in dishwasher.
  • Compatible with a kitchen equipped with M.A.R.V.E.L.

Options:
– Integration on false ceilings 600 x 600 mm.
– Other diameter connections;
– Special finishings.
