Halton Capture Jet KCH Continuous Mist Kitchen Exhaust Hood
Halton Capture Jet KCH Continuous Mist Kitchen Exhaust Hood

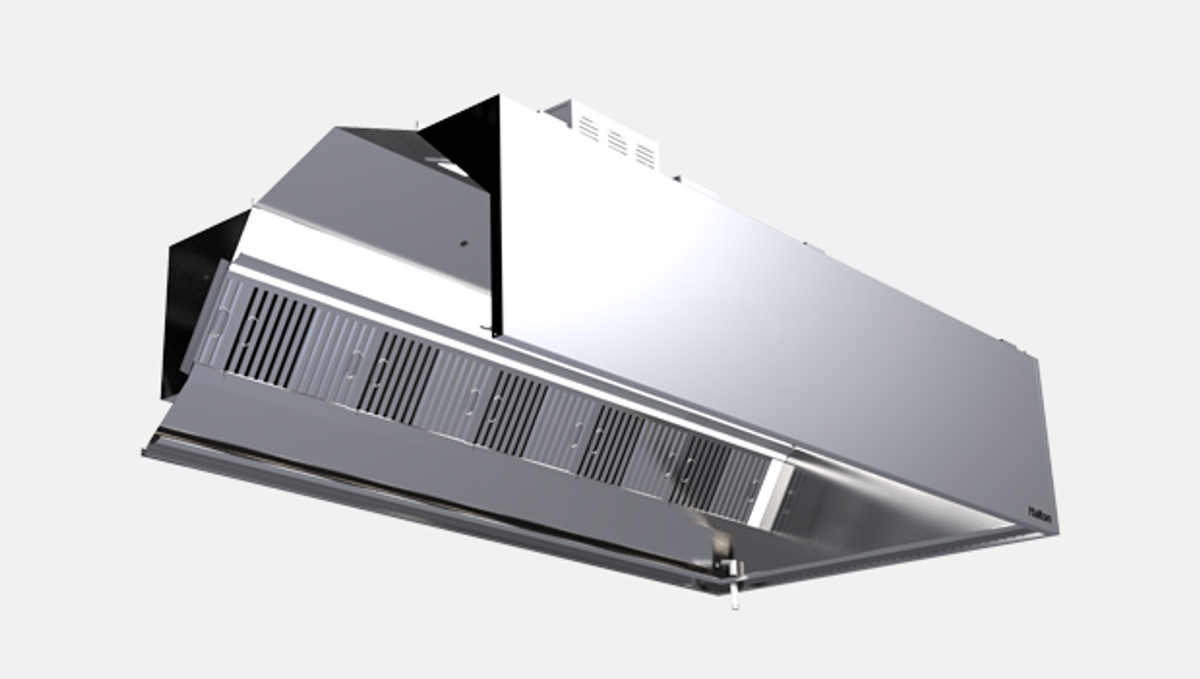

Halton Capture Jet KCH Continuous Mist Kitchen Exhaust Hood-Cutaway

KCH – Capture Jet™ condensate hood (ETL)

ETL Listed to UL Standard UL 710 – The KCH Capture Jet Type I Condensate hood is a highly efficient kitchen ventilation hood that removes contaminated air and excess heat emitted by cooking equipment and channels excess condensation from the interior of the hood to a perimeter gutter system, helping to provide a comfortable and clean environment.

Overview

  •  Improved indoor air quality with reduced energy use. Halton Capture JetTM with Side Jet technology reduces the exhaust airflow rates required and improves the capture and containment efficiency of the hood.
  • High efficiency grease filtration using UL classified Halton KSA multi-cyclone filters for removal of up to 95% of particles with a size of 8 microns per ASTM F2519.
  • T.A.B.TM (testing and balancing) ports, which allow accurate and effective commissioning.
  • Halton HCL Culinary Lights provide the best visual comfort while contributing to improved safety and energy savings.
  • Optional LED lights and LED dimming is available for Capture Jet hoods. Dimming is control by a knob on the switch panel or through Halton HMI Touch Screen.
  • Designed to help eliminate water dripping from the edges and ceiling with standard canopy hoods when used with heavy steam producing equipment.

RECOMMENDED COMBINATIONS
The technologies and features integrated into the KCH hood can be combined with the following technologies or products to further improve the Energy Efficiency, Safety, Indoor Environment Quality (IEQ), or Emission Control levels.

Further, increase the energy savings and improve the working conditions of the staff
Go for M.A.R.V.E.L. energy-saving technology for kitchens ventilation

Establish your kitchen wherever you chose and increase once more the energy savings
Go for PolluStop pollution control unit.

Get peace of mind by making no compromise on fire safety
Go for the factory pre-installed FSS Fire Suppression System

Optimize the ductwork cleaning costs and further improve your safety
Go for KGS grease deposition level monitoring system for ductwork

Specification

The KCH Capture JetTM Type I Condensate hood is a highly efficient kitchen ventilation hood that removes contaminated air and excess heat emitted by cooking equipment and channels excess condensation from the interior of the hood to a perimeter gutter system, helping to provide a comfortable and clean environment.

The KCH hood uses the advanced Halton Capture JetTM to improve the capture and containment of the airflows generated by the cooking equipment. Overall exhaust airflow rates can be reduced up to 30% from those of traditional kitchen hoods.
The Capture JetTM hood is based on the high entrainment efficiency of a compact, high-velocity capture air jet. The capture air jets efficiently induce ambient air at the critical front face area of the hood, minimizing the spillage of the contaminated air and maintaining good air quality in the chef’s work area.

Downloads

Halton_CaptureJet_KCH_SS117.pdf
Datasheet
en_US
724.98 KB
