Halton Safe HSD – Smoke sensor, duct

This is an optical sensor and detects smoke in ventilation ducts. It is used to provide alarm indication to Halton Safe HSL link units.

▪ Controlling fire dampers and smoke detectors in buildings

Overview

Halton Safe HSD is part of the Halton fire and smoke safety offering.

This is an optical sensor and detects smoke in ventilation ducts. It is used to provide alarm indication to Halton Safe HSL link units. The sensor type is Calectro UG-3-O. The sensor consists of a smoke detector, mounted in an adapter system where both the tube and housing are designed for optimum airflow through the smoke detector. The sensor fulfils the requirements for fire detection with air velocities from 0.2 to 20 m/s.

Note: An optical sensor reacts to the consistency of particles in the air, for example, smoke. It can react also to dense water vapour.

Applications

▪ Controlling fire dampers and smoke detectors in buildings

Key features

▪ Optical smoke sensor
▪ Easy to install

Features and options

Feature Description
Power supply 24 V DC
Detector type Optical
Communication mA current
IP class IP54

Dimensions and weight

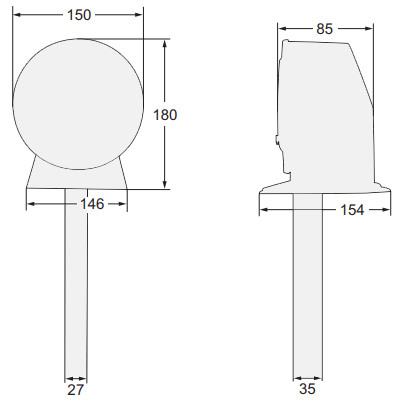

HSD_dimensions

Fig.1. Dimensions of Halton Safe HSD

Weight:

0.66 kg

Specification

Optical smoke detector in duct for Halton Safe Management 2.0 system.

Installation information

For detailed information as well as installation and maintenance instructions, see the Calectro website.

Connection diagram

HSD_connection_diagram

Fig.2. Connection diagram of Halton Safe HSD

Key Description
Rb Terminating resistor 2.2 kΩ



Order code

HSD/M; ZT

M = Model
DI   Calectro UG-3-0

Other options and accessories

ZT = Tailored product
N       No

Code example

HSD/DI, ZT=N

Downloads

Halton Safe HSD – Smoke sensor, duct
