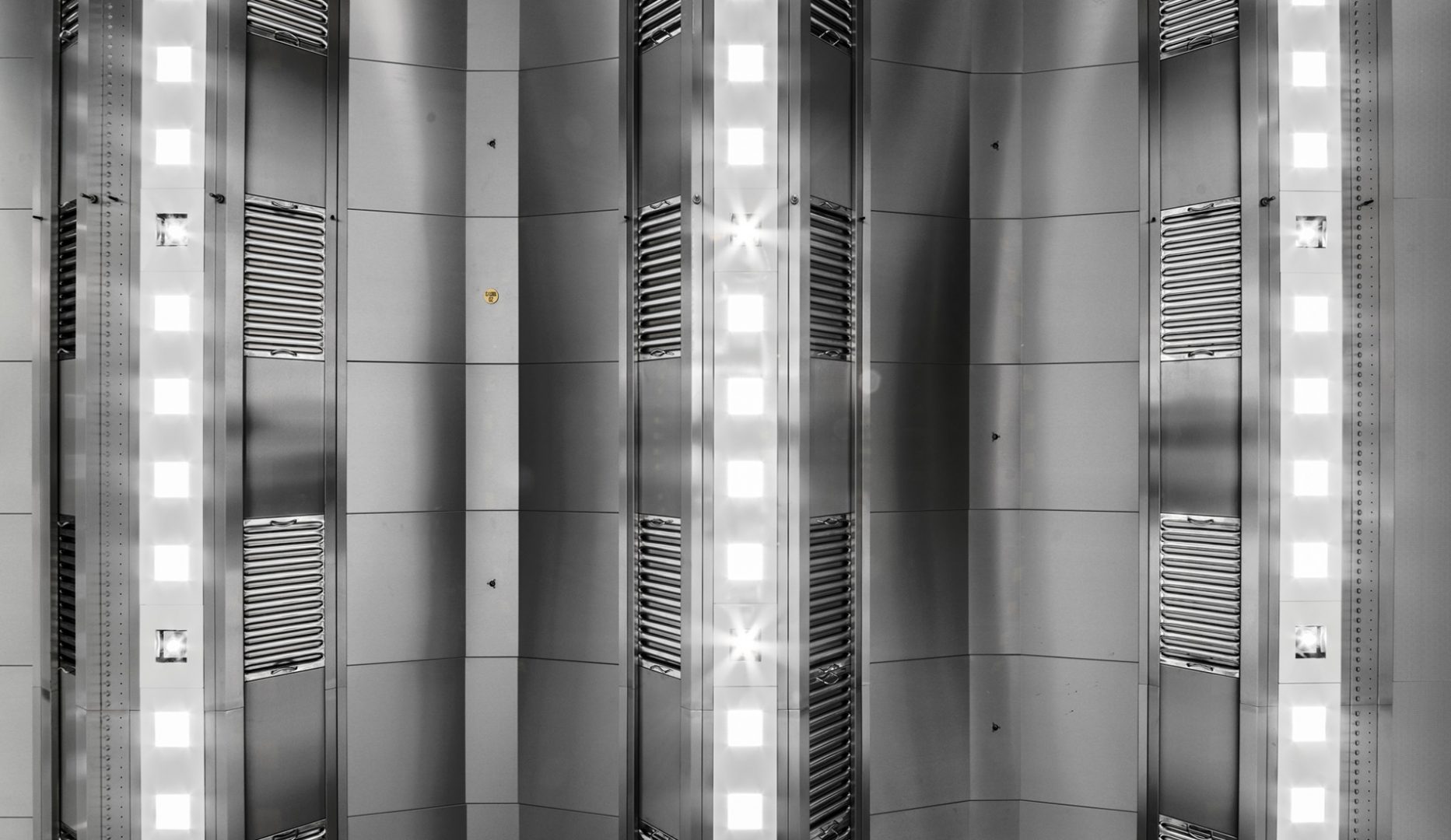

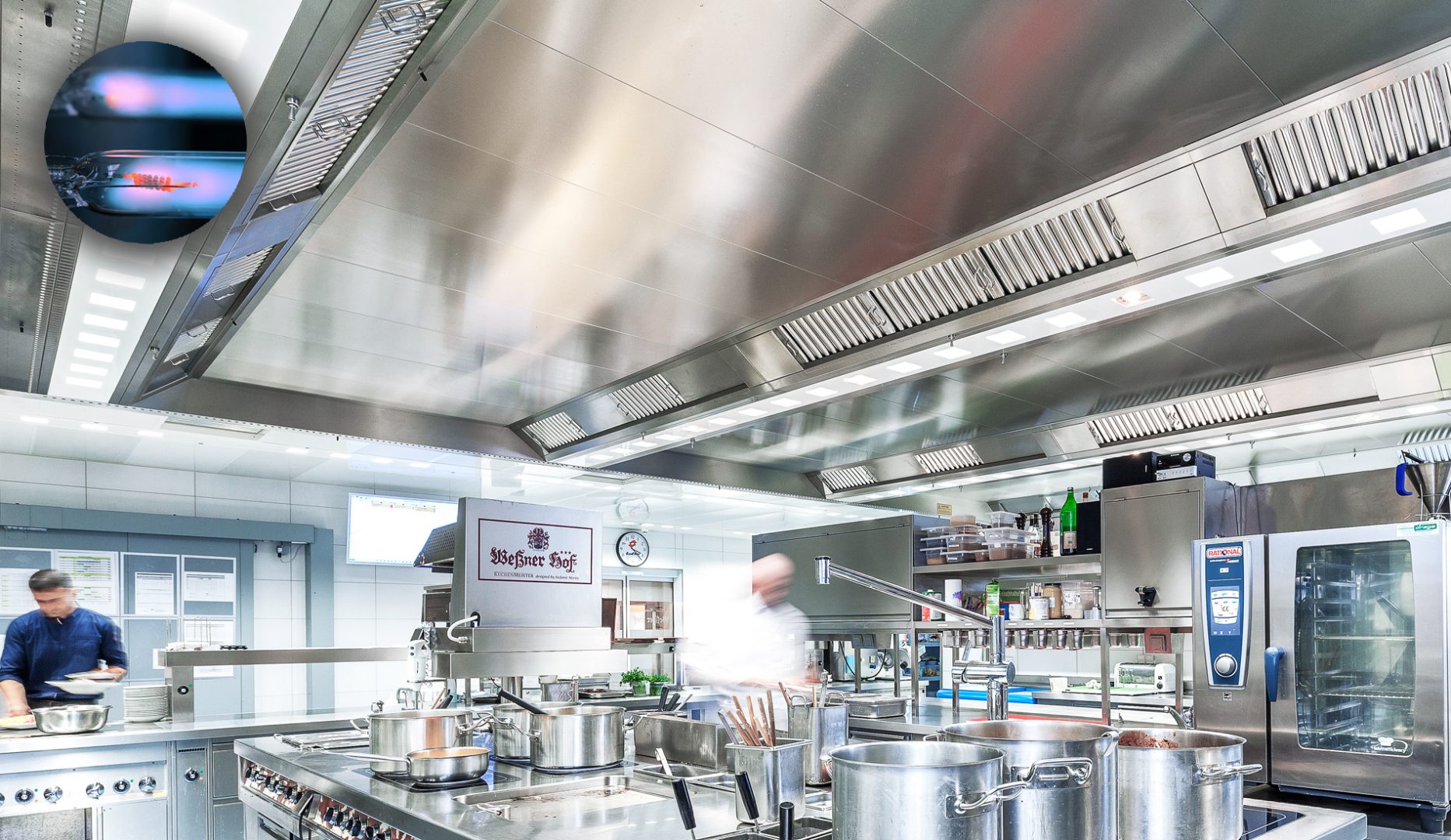

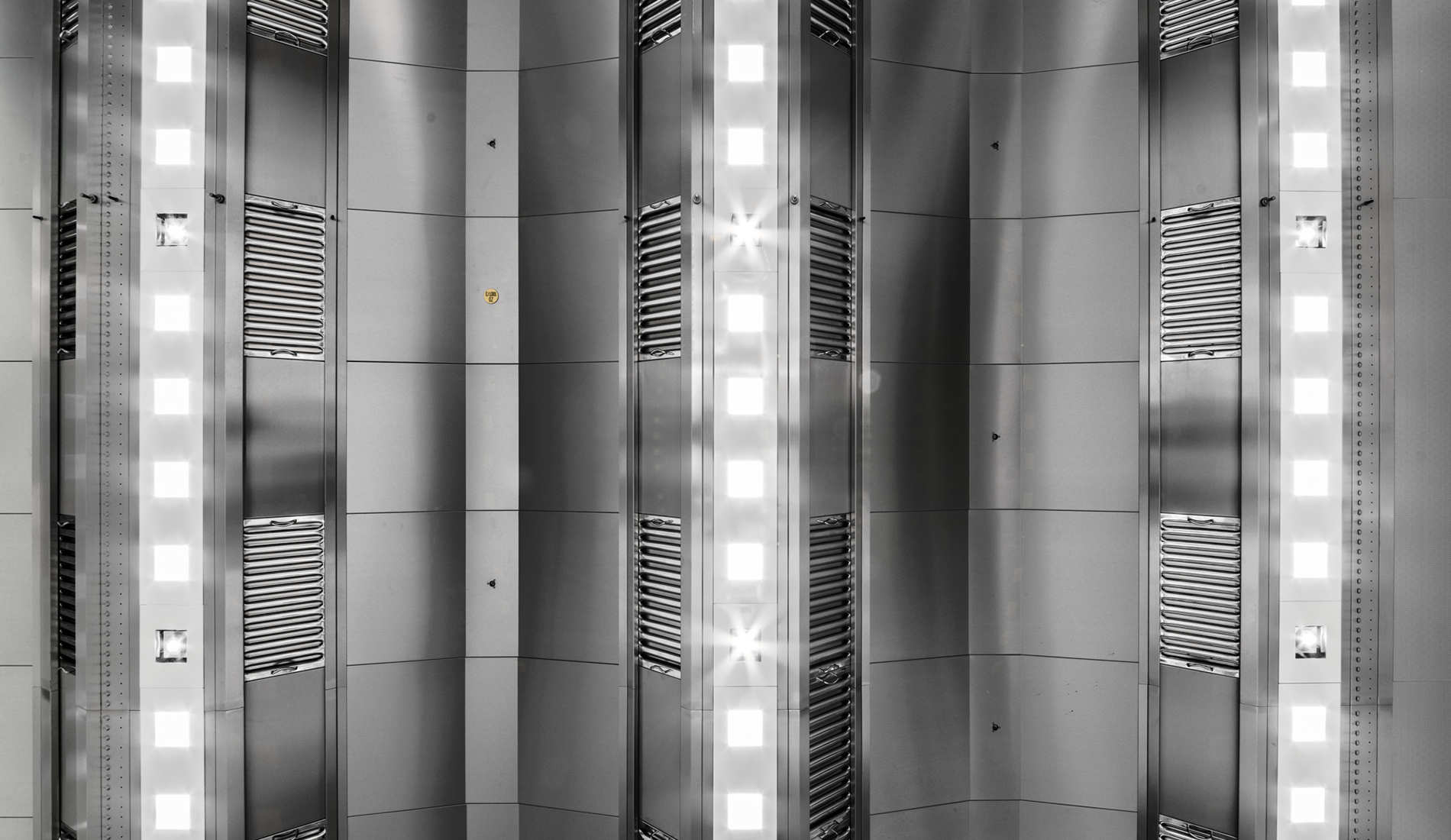

KCJ-UV – Capture Ray™ ventilated ceiling (CE)

With Capture Jet™ technology and low velocity makeup air

CE Marked (UKCA pending) – The KCJ-UV ventilated ceiling is a highly efficient kitchen ventilation solution. It combines extraction, makeup air, uniform lighting and rigid suspended ceilings above neutral areas. Equipped with the Capture Ray™ technology, it keeps the plenum and ductwork virtually grease-free and reduces cooking odour emissions.

The KCJ-UV ceiling is also equipped with the new generation of Capture Jet™ technology. It requires up to 15% less exhaust air volume than traditional ceilings.

Overview

KCJ-UV is based on the same design as KCJ Capture Jet™ ventilated Ceiling with the added benefit of being equipped with the UV Capture Ray™ technology.

It neutralises the grease carried by the exhaust air. By carefully selecting the number of UV lamps, airborne cooking odours will be so minimal that it can negate the need to discharge the vitiated air at high level from the building. Eliminate neighbourhood and safety concerns, establish your restaurant wherever you choose, and save a great deal on your energy bill and cleaning costs.

Considerable energy savings

  • Up to 15% reduction in exhaust airflow rates due to Capture Jet™ technology.
  • Possibility to extend the airflows reduction to up to 53% with M.A.R.V.E.L. energy savings technology.

Improved safety, maintenance savings and respect for the neighborhood

  • KSA cyclonic aerosol separators complying with EN 16282-6, 95% efficient on 10 microns particles or larger (also UL, NSF and LPS certified).
  • Alternatively and depending on the requirements, exhaust plenums are equipped with highly-efficient twin FC aerosol separators complying with DIN 18869-5 (ability to prevent flames passing through the filters).
  • Neutralisation of remaining grease particles and vapors after mechanical filtration thanks to the Capture Ray™ technology.
  • The drastic reduction in grease deposits greatly lowers the cleaning costs for the ductwork and the exhaust plenums. Hygiene and fire safety are at an optimum level.
  • The Capture Ray™ technology also reduces drastically the odors emissions and enables establishing restaurants in dense urban sites.
  • Total access security to UV-C lamps.
  • The UV On Demand option activates the lamps only when cooking appliances are actually used and saves up to one lamps set where other UV systems require two.

Other features and benefits

  • HACCP certified (Hazard Analysis Critical Control Point).
  • Turnkey projects: Dimensioning and design of each project «made in Germany», including installation by Halton specialists.
  • Equipped with Halton Connect IoT (Internet of Things) platform with advanced 24/7 distant monitoring capabilities.
  • Highest value of ownership thanks to Halton Connect & Care smart services available as an option from kitchens commissioning.
  • Halton Skyline LED culinary light provides the best visual comfort while contributing to further improve the safety and the energy savings.
  • The Human Centric version of Halton Skyline directly contributes to chefs’ and their teams Wellbeing, especially when extended to all kitchen areas.
  • Unrivalled working conditions due to optimal air quality and thermal comfort, combined with excellent visual and acoustic comfort.
  • Exhaust airflow rates determined with a EN 16282-1 based calculation method taking into account the loads of the cooking appliances, the configuration of the extract system and its capture and containment efficiency.
  • The entire system is fully comprehensive and includes extraction, low velocity make up air, lighting, integration of the additional services and the fully consistent suspended KCP ceiling for the neutral areas.
  • Adaptable for later modifications to the layout of cooking appliances.
  • Many possibilities of customization.

More about the main embedded technologies


Halton Connect

Halton Skyline

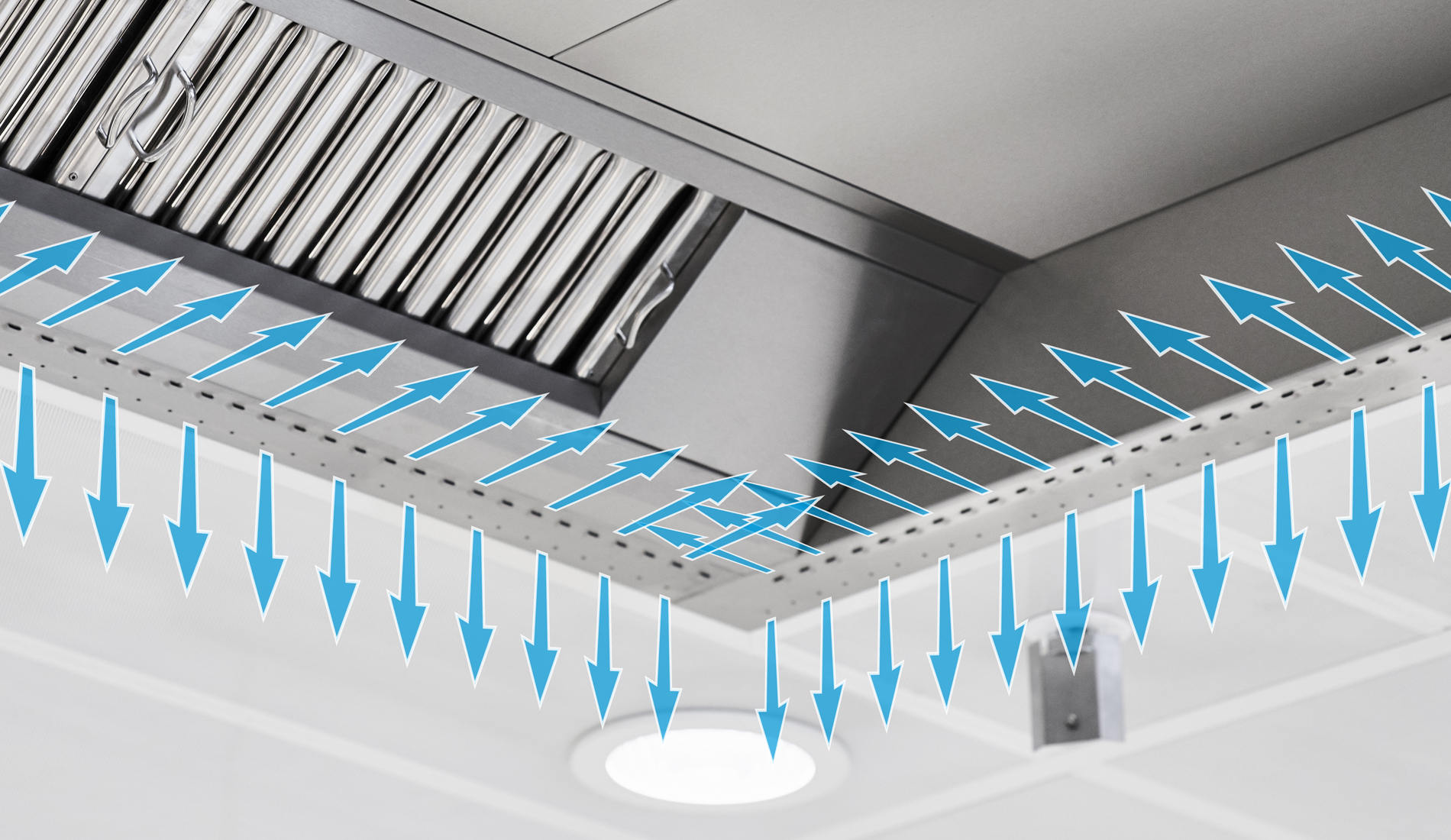

Capture Jet™

KSA Filters

Capture Ray™
On Demand

Recommended combinations with other products or technologies

To further enhance the performance of your kitchen, whether talking about the energy savings, safety, Indoor Environment Quality (IEQ) or the kitchen’s impact on the environment, here are couple of combinations with other Halton products or technologies we recommend you.

Further increase the energy savings and improve the working conditions of the staff
Go for M.A.R.V.E.L. energy saving technology for kitchens ventilation

Establish your kitchen wherever you chose and increase once more the energy savings
Go for PolluStop and Aerolys exhaust and supply Air Handling Units

Get peace of mind by making no compromise on fire safety
Go for the factory pre-installed FSS Fire Suppression System

Optimize the ductwork cleaning costs and further improve your safety
Go for KGS grease deposition level monitoring system for ductwork



About Halton Connect & Care

Halton Connect is a state-of-the-art IoT (Internet of Things) platform whose core is an advanced cloud-based portal. It enables 24/7 remote monitoring of the solutions designed by Halton. It allows access to important and useful information along with powerful data analytics to the end users. It also provides crucial information to our engineers. In return, they can remotely and safely control all systems and their settings when required.

This digital “two directions” technology opens the way to Premium Services that are vital to keep the performance of the systems and technologies at the initial design level and during the entire lifecycle. Even better! They enable continuous optimisation of your systems, resulting in even lower operating costs.

Halton Connect for commercial kitchen ventilation

About Halton Skyline

Halton Skyline is the first LED based lighting technology specifically developed for commercial kitchens. Everyone agrees the light it provides is simply the closest possible to natural light. Halton Skyline is embedded in Halton’s hoods, ventilated ceilings and hard false ceilings. Also available as standalone light fittings, its use can be extended to all areas of kitchens.

Halton Skyline represents a unique set of real benefits for the chefs, their staff and even their guests when it comes to display kitchens.

  • A Culinary Light that remarkably respects the food colour and plasticity from raw ingredients to plated presentation
  • A Culinary Light that also improves the working conditions while playing an active role in the kitchen safety
  • A Human Centric light that follows your biorhythm to further improve the working conditions and staff Wellbeing
  • A state-of-the-art lighting technology that, at its core, saves significantly on energy and maintenance

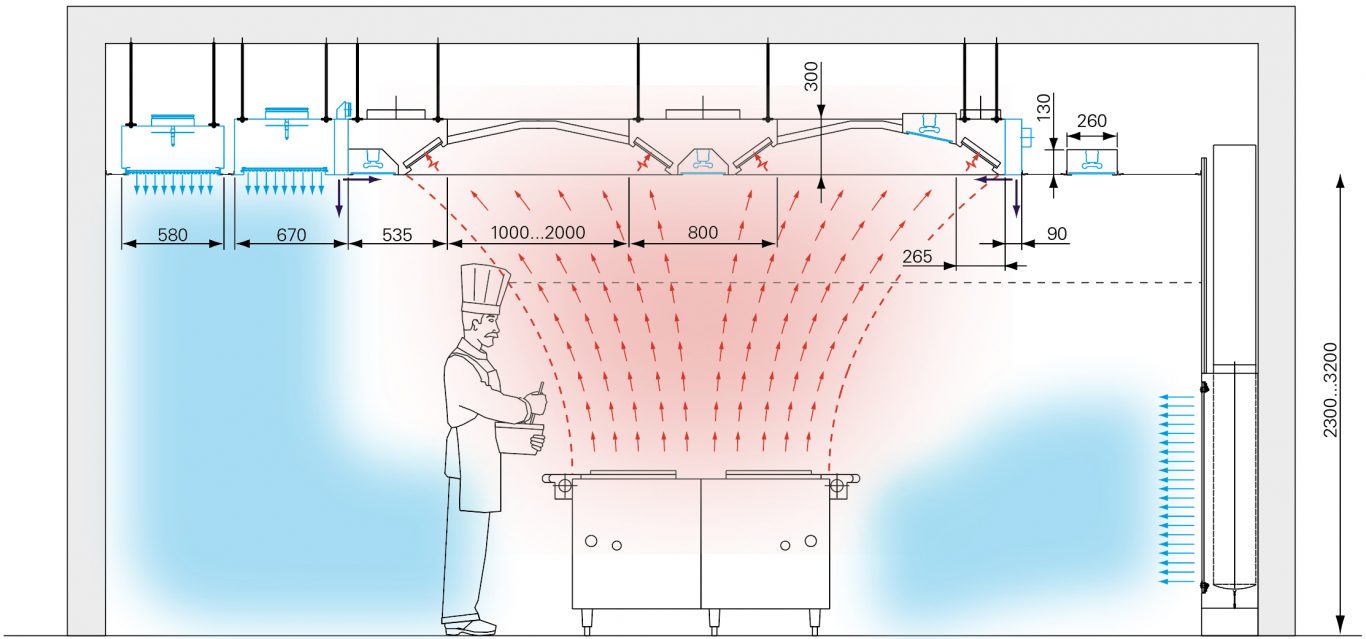

Dimensions
