KVF – Capture Jet™ hood with supply air (CE)

Main features

◦ Capture Jet™ technology

◦ KSA aerosol separators

◦ Halton Skyline culinary & Human Centric Lighting

◦ Integrated low velocity makeup air

◦ CE marked

◦ UKCA marked

Main benefits

  • Drastic energy savings thanks to reduced airflows
  • Savings on exhaust plenum and ductwork cleaning thanks to lower formation of grease deposits
  • Better thermal comfort thanks to draft risk’s reduction
  • Improved visual comfort and color render for the food
Request a Quote

Overview

Applications

Halton Capture Jet™ hoods and ventilated ceilings are suitable for all types of kitchens – closed, open, or show kitchens – and, in general, for all food-production environments.

Fully compatible with M.A.R.V.E.L. airflow and energy optimization technology, they are especially suitable for projects aiming for environmental or energy efficiency programs and certifications (such as LEED (1), BREEAM (2), DGNB (3), RE2020 (4), or similar) .

Description

The Capture Jet™ technology enables significant reductions in airflow rates leading to savings on construction costs, mainly due to the reduced size of ducts and HVAC equipment.

The reduction in HVAC equipment sizing and ongoing energy savings can significantly improve the project’s return on investment. The energy savings it generates then directly contribute to an increase in profitability, while the staff benefits from improved working conditions.

KVF hoods are also equipped with a low-velocity makeup air built into the front face.

Considerable Energy Savings

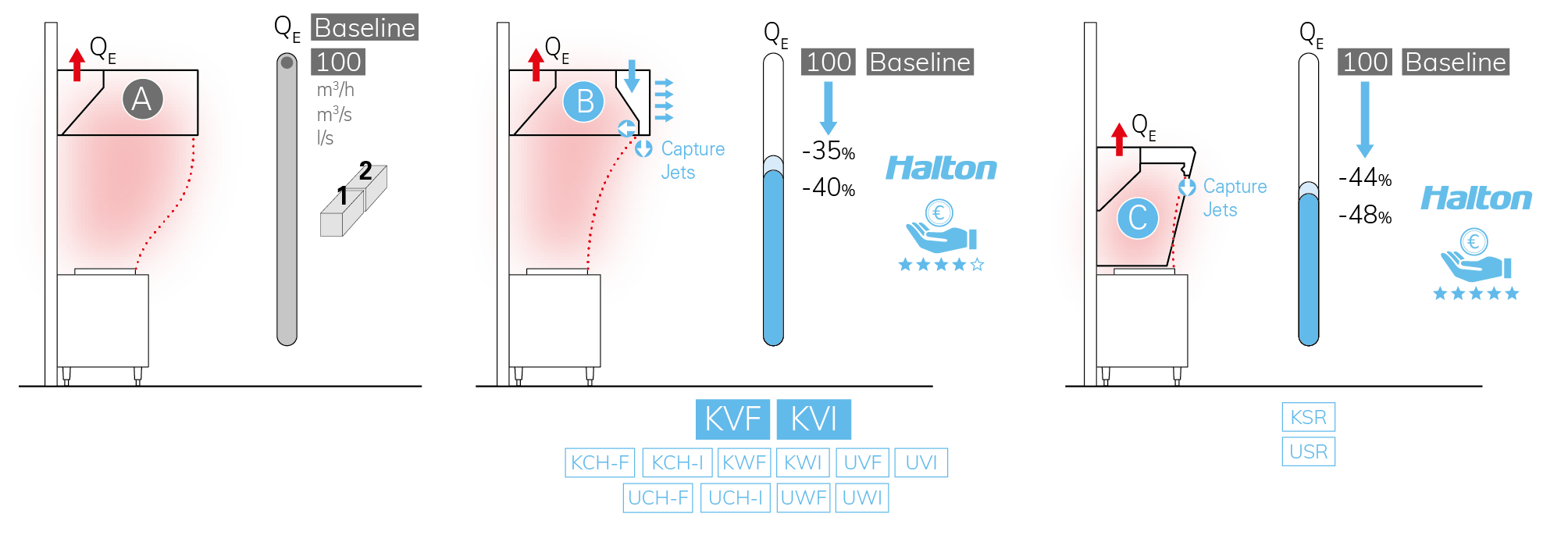

  • The Capture Jet™ technology allows for up to a 40% reduction in exhaust airflow rates.
  • The combination with M.A.R.V.E.L. airflow and energy optimization technology allows drastic reduction in exhaust airflows on top of that achieved by the Capture Jets. This results in up to a 64%+ total reduction.
  • The energy savings on heating/cooling the makeup air then become massive (less air out, less air in!).
  • The reduced risk of drafts and lower noise levels improve staff working conditions.

Improved Safety and Maintenance Savings

  • KSA cyclonic aerosol separators are constructed from stainless steel in compliance with EN 16282-6 (7). They achieve up to 95% efficiency at capturing particles of 10 μm or larger.
  • KSA aerosol separators combine excellent separation efficiency with lower pressure loss. They are certified to UL 1046, NSF, and LPS 1263.
  • The high level of filtration efficiently slows the build-up of grease deposits in exhaust plenums and ductwork, which could otherwise constitute a serious hygiene and fire safety hazard.
  • The cleaning frequency of the ducts is reduced, resulting in lower cleaning costs.

Other Benefits and Features

  • Manufactured from stainless steel and compliant with the requirements of EN 16282-2 (5).
  • Designed in accordance with HACCP principles to support hygienic operation and certified by HACCP International (8).
  • Integrated fan to supply air to the Capture Jets. No connection to the supply ductwork is required.
  • The Capture Jets are automatically switched off when the ventilation system is turned off or operates at minimum airflow.
  • Halton Skyline (HCL) LED culinary lighting provides outstanding visual comfort while contributing to enhanced safety and reduced energy consumption.
  • When extended to the whole kitchen and surrounding areas, the Human Centric version of Halton Skyline (HCL) directly contributes to the wellbeing of chefs and their teams.
  • Better capture efficiency and comfort for the staff thanks to a low-velocity diffuser built into the front.
  • Exhaust airflow rates are determined using an EN 16282-1 based calculation method, which takes into account the loads of the cooking or dishwashing equipment, the makeup air strategy, the configuration of the hoods or ventilated ceilings, and their capture and containment efficiency.
  • Capture and containment efficiency tested in accordance with the ASTM 1704 standard.
  • Quick and easy commissioning. Hoods delivered “ready to install”, with all accessories included, such as light fitting, T.A.B.™ airflow measurement taps, and dampers for quick balancing on-site.
  • Sturdier and easier to clean (less parts and fewer joints). Stainless steel construction.

(1) LEED – Leadership in Energy and Environmental Design

(2) BREEAM – Building Research Establishment Environmental Assessment Method

(3) DGNB – German Sustainable Building Council

(4) RE2020 – French Environmental Regulation 2020

(5) EN 16282-2 – Equipment for commercial kitchens – Components for ventilation in commercial kitchens – Part 2 : kitchen ventilation hoods – Design and safety requirements

(6) EN 16282-3 – Equipment for commercial kitchens – Components for ventilation in commercial kitchens – Part 3: Kitchen ventilation ceilings – Design and safety requirements

(7) EN 16282-6 – Equipment for commercial kitchens – Components for ventilation in commercial kitchens – Part 6: Aerosol separators – Design and safety requirements.

(8) HACCP – Hazard Analysis Critical Control Point

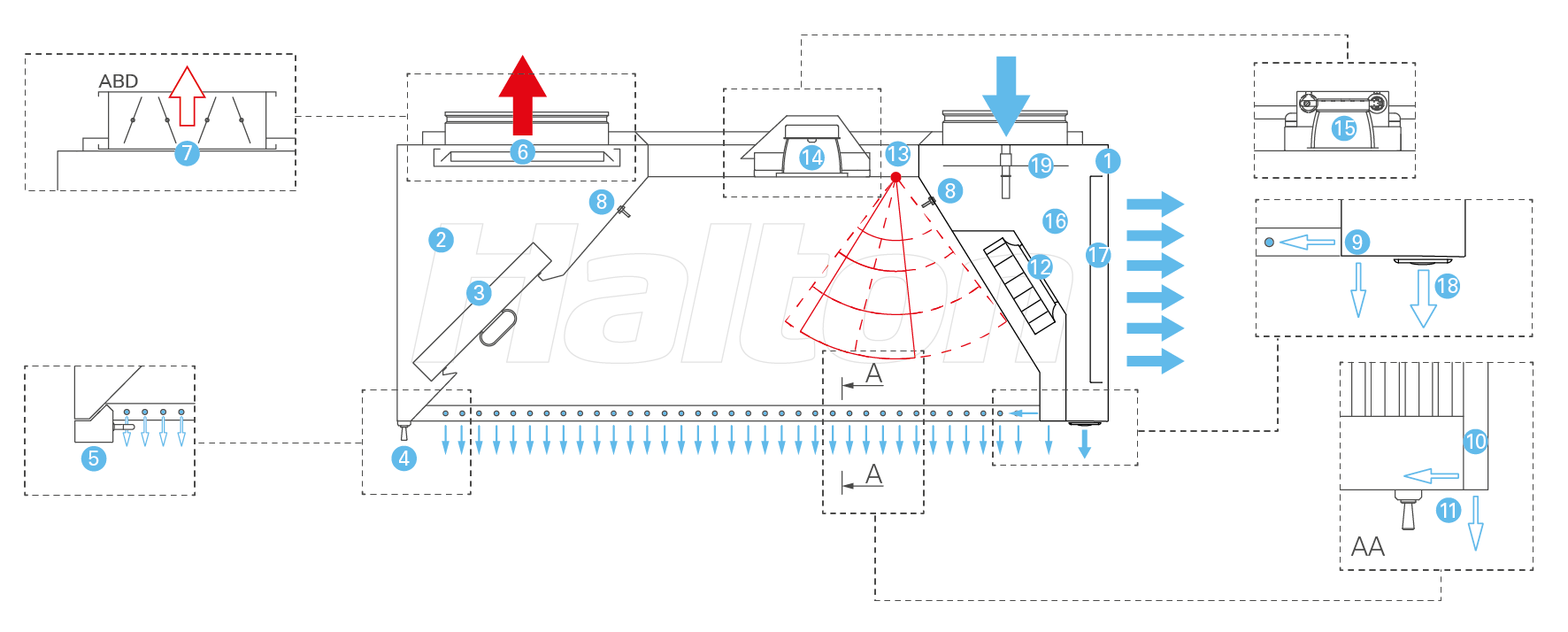

Construction

  1. Visible outer envelope in stainless steel AISI 304 (1,0 mm).
  2. Exhaust plenum construted from stainless steel AISI 304 (1 mm thick) and galvanized steel (plenum’s top).
  3. KSA aerosol separator.
  4. Condensate drain.
  5. Collection tray as an option.
  6. Exhaust connection(s) and sliding damper(s).
  7. When the kitchen is equipped with M.A.R.V.E.L. energy optimization technology (MRV), the sliding dampers are replaced by ABD automated balancing dampers.
  8. T.A.B.™ (Testing And Balancing) pressure ports for quick airflow calculation during ductwork balancing.
  9. Front Capture Jet™ nozzles.
  10. Double skin sides.
  11. Side Capture Jet™ nozzles.
  12. Integrated Capture Jet™ fan.
  13. Halton Thermal Imaging sensor (used for the optional M.A.R.V.E.L. or FireWatch technologies).
  14. Halton Skyline LED culinary LED light fitting.
  15. [Option] Halton Skyline LED spotlights integrated into a full-length, flush-mounted light fitting.
  16. Makeup air plenum.
  17. Perforated front face with honeycomb structure for a low velocity makeup air.
  18. Personal supply air nozzles.
  19. Supply air connection and adjustment damper (type MSM).

M.A.R.V.E.L. ready option: To allow for later installation of M.A.R.V.E.L. airflow and energy optimization, each hood can be equipped only with its ABD slim automated balancing damper, which is typically very difficult to install afterward.

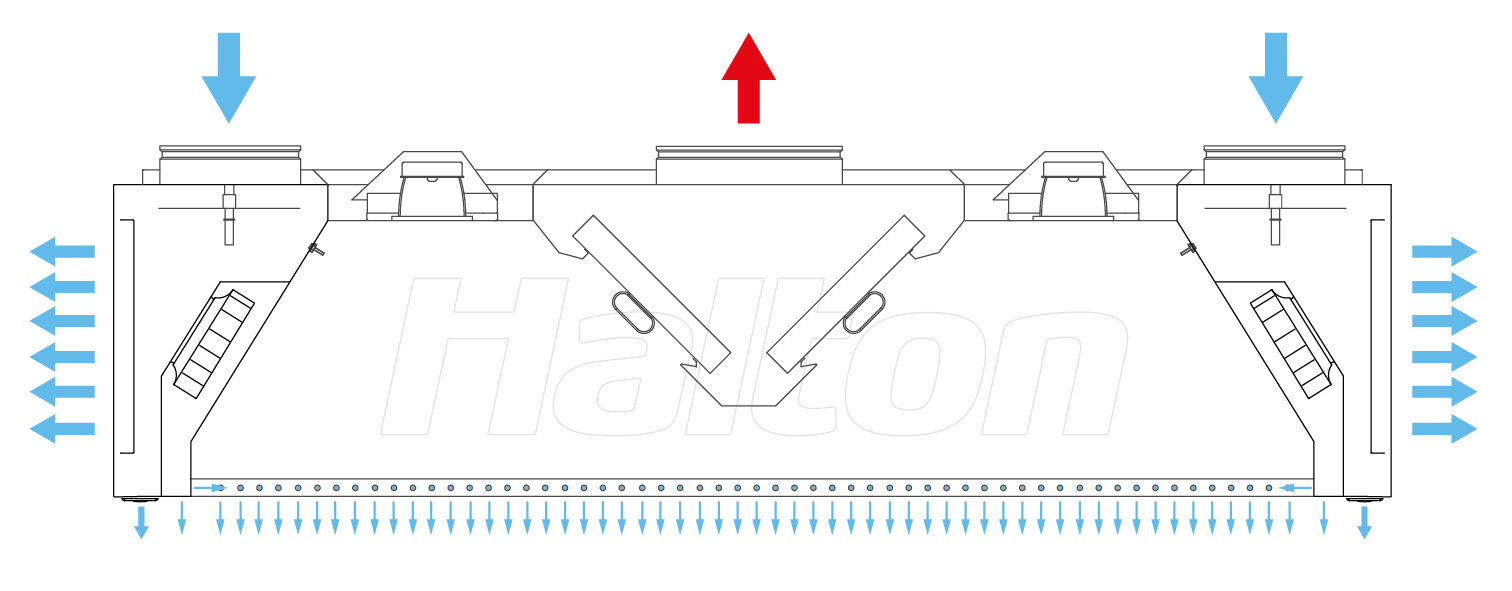

[KVF-M]

For island hood applications, the KVF hood can be supplied as a monobloc double-plenum unit. This configuration replaces two back-to-back hoods, simplifying installation and reducing the number of sections required.

However, given the overall dimensions of the monobloc hood, access routes to the installation area should be checked to ensure they are wide enough for delivery and installation.

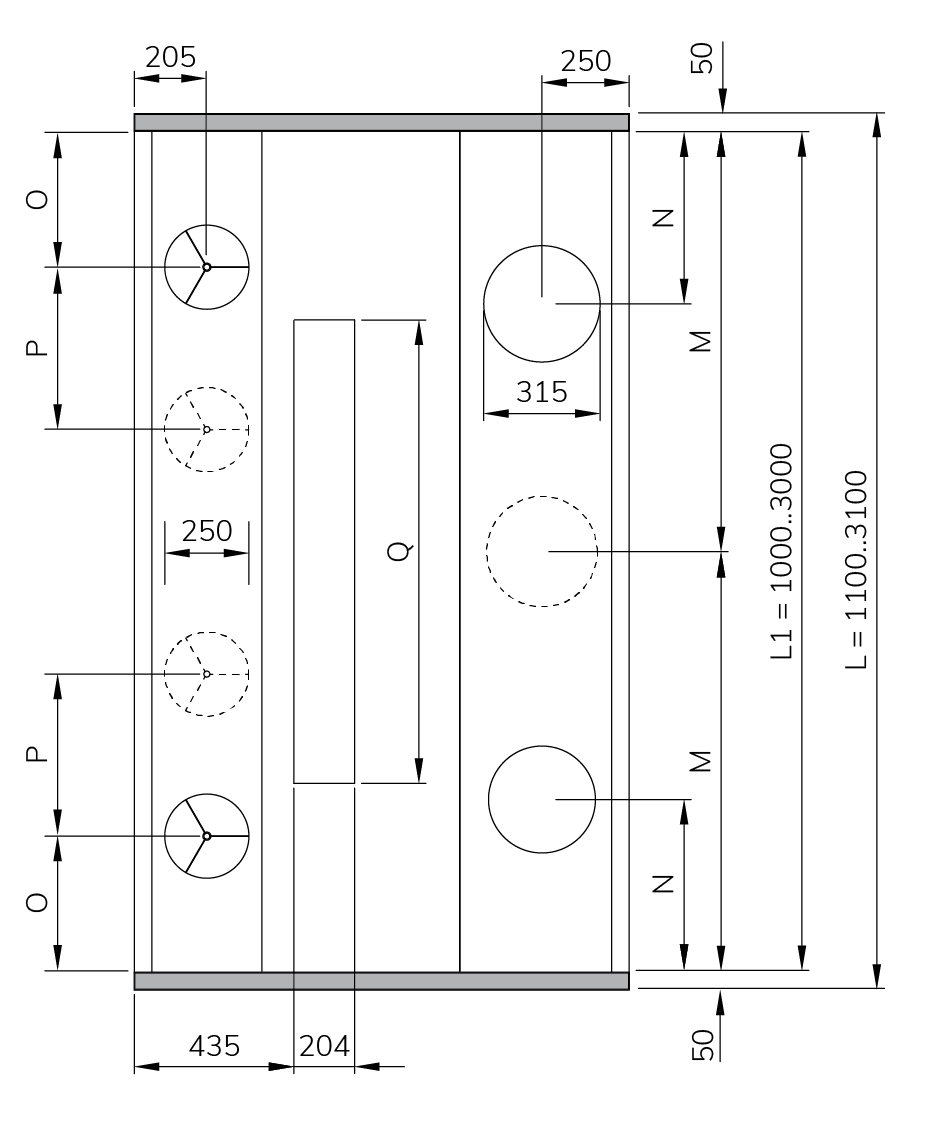

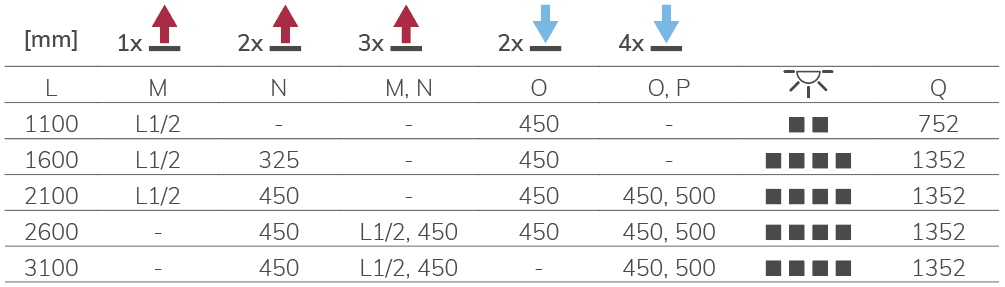

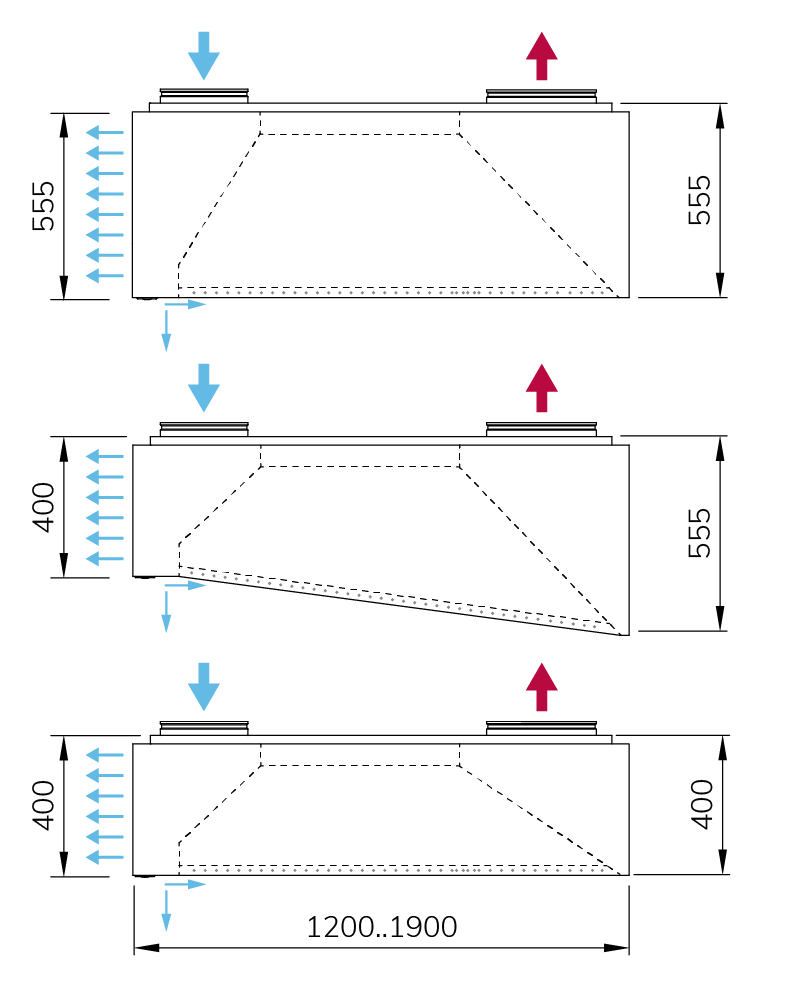

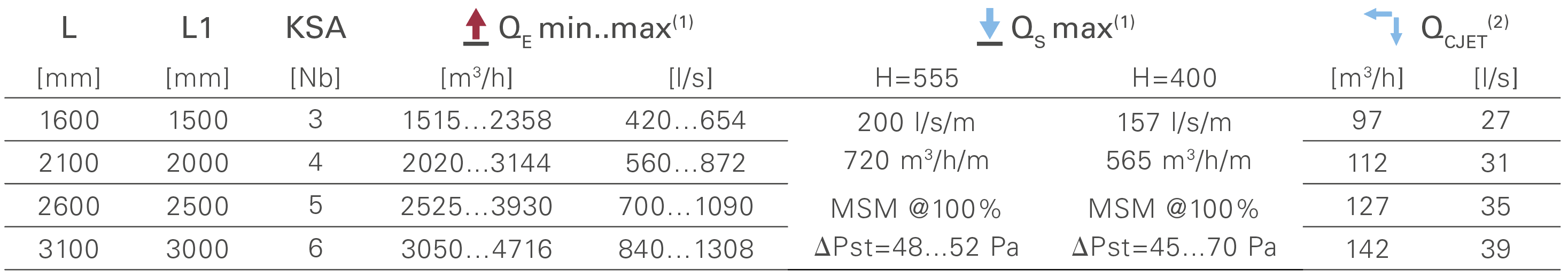

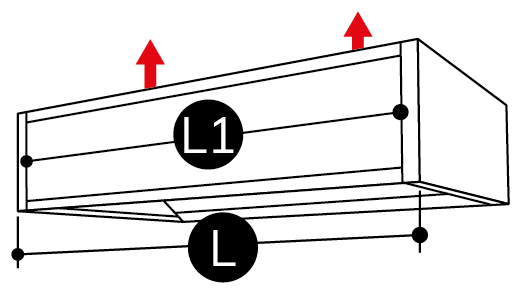

Dimensions

Notes:

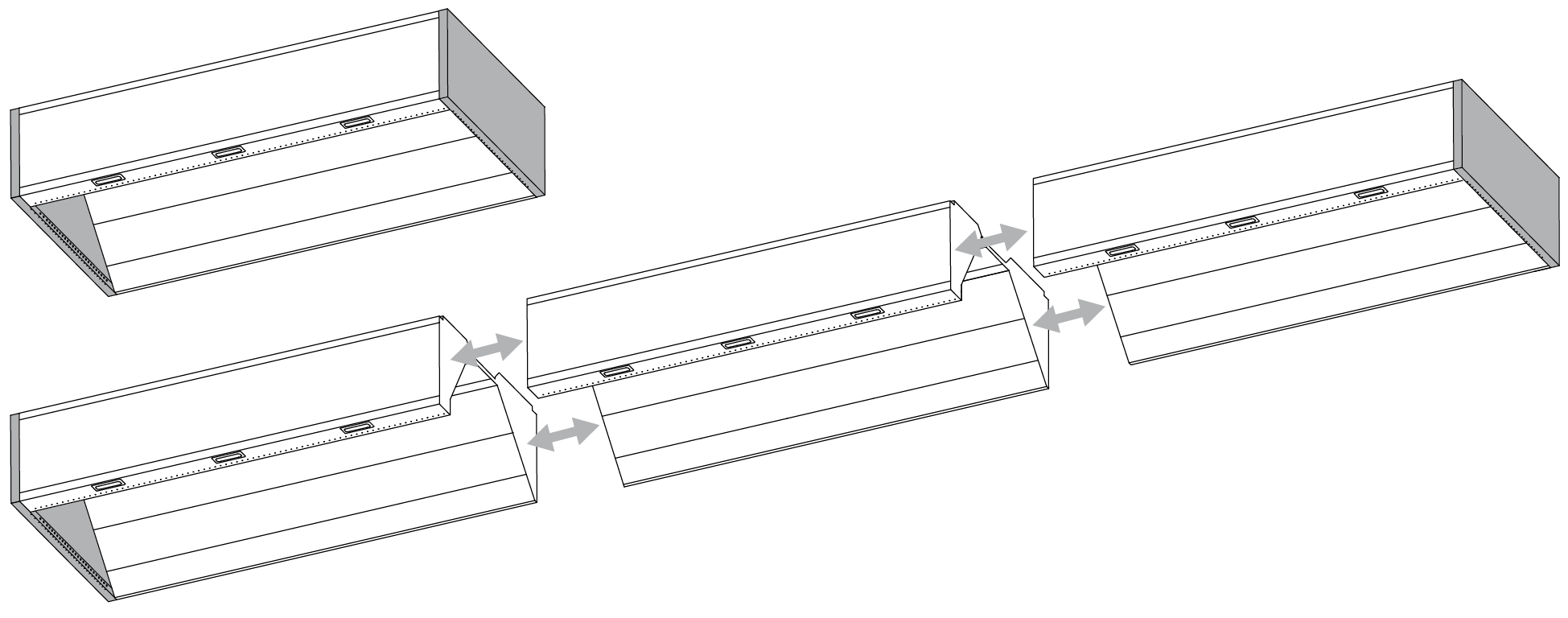

– Above 3100 mm, hoods are an assembly of separate sections to make transportation and site handling easier.

– Number of connections to be determined based on the sections length and on the calculation of the airflow rates.

– Rectangular connections on request.

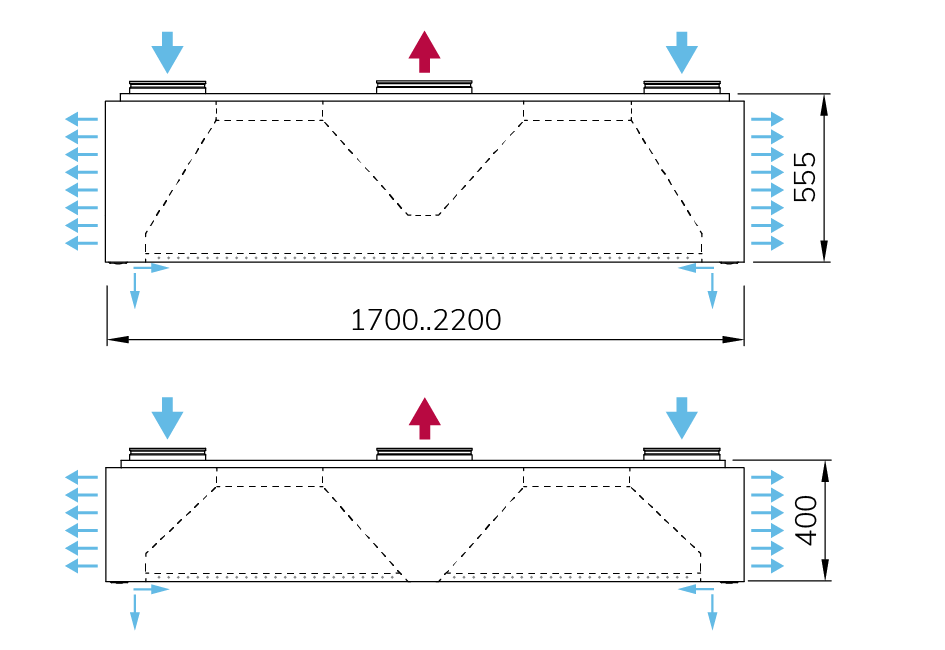

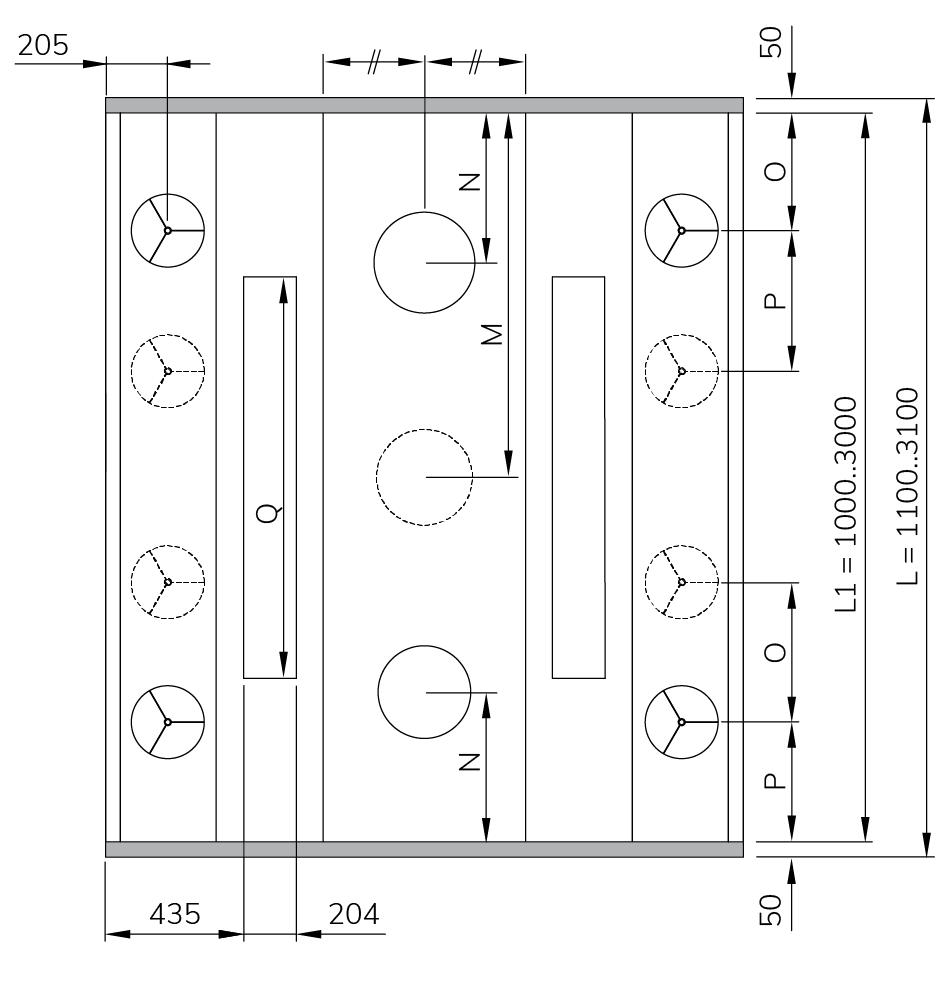

Monobloc island configuration

Notes:

– Above 3100 mm, hoods are an assembly of separate sections to make transportation and site handling easier.

– Number of connections to be determined based on the sections length and on the calculation of the airflow rates.

– Rectangular connections on request.
