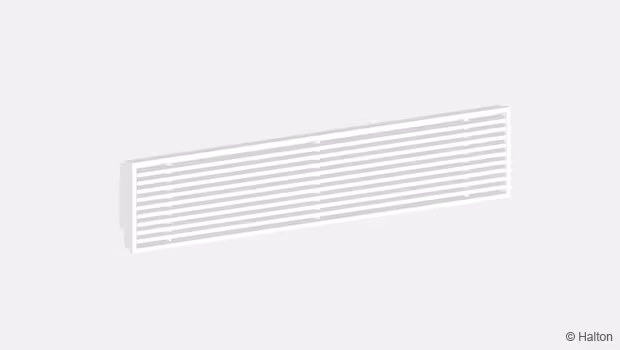

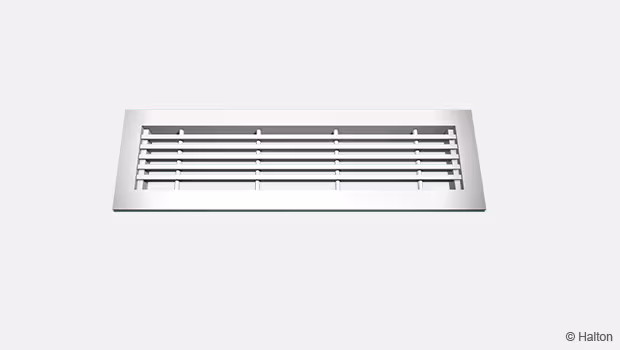

Halton GSP – Floor grille

Walkable grille. Ideal for wet spaces.

  • Vertical supply from the floor, suitable also for exhaust
  • Fixed front vanes; stable throw pattern with 15° deflection angle

Overview

  • Vertical supply from the floor, suitable also for exhaust
  • Fixed front vanes; stable throw pattern with 15° deflection angle
  • Anodisation 10 µm for non-corrosive application and 20 µm for swimming pool applications
  • Aluminium construction, class K3 according the standard NF-EN 1253-2
  • Removable core vanes
  • Detachable grille, allowing cleaning of the grille and ductwork

Dimensions

LxH L1 L2 H1 H2
1000×75 1037 995 112 70
1000×100 1037 995 137 95
1000×150 1037 995 187 145
1000×200 1037 995 237 195
1500×200 1537 1495 237 195
2000×200 2037 1995 237 195

The free area of the Halton GSP grille is about 50%.

The grille is also available angle shaped with dimensions 500 mm x 500 mm.

Special dimensions

It is possible to have a continuous grille of modular design when the installation length is greater than 2000 mm. The maximum total length is 20 m.

Material

 Part  Material  Finishing Note
 Frame  Aluminium  Anodised, 20 µm  Swimming pool
 Vanes  Aluminium  Anodised, 20 µm  Swimming pool
 Frame  Aluminium  Anodised, 10 µm  Non-corrosive
 Vanes  Aluminium  Anodised, 10 µm  Non-corrosive

The bevel angles of the outer frame have been welded so that the joints are almost invisible.

Product Models

 Product model  Description
 Corner GSP grille  GSP with an angle shape (dimensions 500×500)

Function

Supply air is supplied with a 15° deflection angle through the horizontal vanes into the space, and it mixes with room air in front of the grille.

The grille can also be used as an exhaust unit.

The Halton GSP grille has a high load resistance, with a class K3 according the standard NF-EN 1253-2, (test report CSTB n°CAPE AT 15-244).
The class K3 is defined in the standard as: “Area without at the vehicle traffic, like common place, shopping centers, and some public buildings

Installation

The grille is installed directly in the floor.

Servicing

The grille can be removed for cleaning.

Remove from the floor by gently pulling the grille from the outer frame. Use a screwdriver, if needed.

Clean the components with a damp cloth, instead of immersing in water.

Push the grille back into place.

Specification

The floor grille has horisontal fixed vanes with a 15° deflection angle and a flat frame (7 mm wide and 70 mm high).

For swimming-pool applications, the grille has a durable anodization (20 µm) that gives a very good resistance to corrosion. For non-corrosive applications, the grille can be provided with a standard 10 µm anodization.

The floor grille can be used for either supply or exhaust air.

The bevel angles of the outer frame are welded so that the joints are almost invisible.

The floor grill is detachable in order to provide access to the duct.

The grille is made of aluminium

Order code

GSP/L-H; TA-ZT

L = Length (mm)
   200, 210, 220, 230…50000

H = Height (mm)
75, 100, 150, 200

Other options and accessories

TA = Thickness of anodization
D       Double anodization (20µm)
S        Simple anodization (10µm)

ZT = Tailored product
N         No
Y         Yes (ETO)

Code example

GSP-1000-75, TA=D, ZT=N
