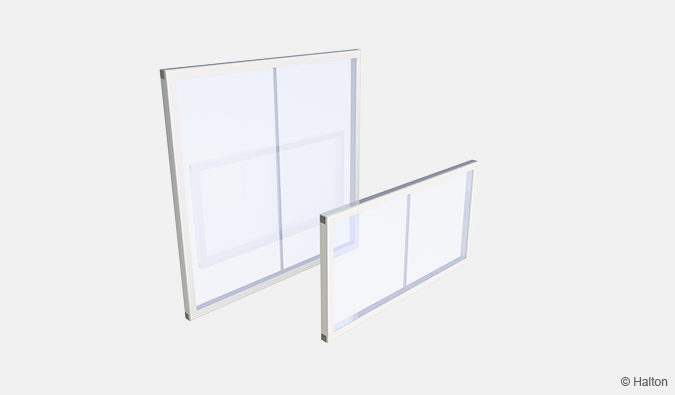

Halton Vita VSG – Exhaust grille

This is an exhaust grille for all Halton Vita OR Space and Halton Vita OR Zone solutions.
  • Stainless steel exhaust air grilles equipped with a metal mesh fluff separator
  • The stainless steel front panel is easy to remove and clean; can be sterilised in an autoclave

Overview

Halton Vita VSG is an exhaust grille for all Halton Vita OR Space and Halton Vita OR Zone solutions. It is an alternative to the Halton Vita VSC exhaust unit in designs where more flexibility in the placement of the exhaust is needed.

Application areas

  • Operating rooms in hospitals
    – Halton Vita OR Space 5 solution
    – Halton Vita OR Space 7 solution

Key features

  • Stainless steel exhaust air grilles equipped with a metal mesh fluff separator
  • The stainless steel front panel is easy to remove and clean; can be sterilised in an autoclave

Dimensions and weight

The dimensions for the six exhaust grille sizes are detailed in the table.

NS L1 L2 L3 H1 H2 H3 Weight (kg)
400×200 487 456  395 287 256 195 6.5
400×400 487 456   395 487 456 395 9.0
500×250 587 556   495 337 306 245 8.0
500×500 587 556  495 587 556 495 11.0
600×250 687 656  595 337 306 245 9.0
600×600 687 656  595 687 656 595 13.5

Halton Vita VSG frame dimensions

NS L4 L5 H4 H5
400×200 447 399 247 201
400×400 447 399   447 401
500×250 547 499   297 251
500×500 547 499  547 501
600×250 647 599  297 251
600×600 647 599  647 601

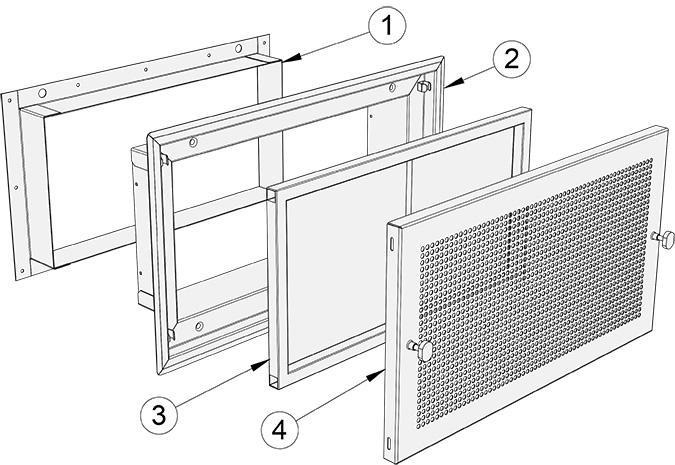

Material

VSG_Structure

No. Part Material
1 Fixing frame Galvanised steel
2 Exhaust grille frame Stainless steel (AISI 316L)
3 Metal mesh fluff separator Stainless steel (AISI 316L)
4 Front panel Stainless steel (AISI 316L)
5 Fixing knob Stainless steel (AISI 316L)

Function

Air is exhausted from the space through the grille and the metal mesh fluff separator.

The purpose of the separator is to prevent fibre particles originating from the clothing of the personel and other operational textiles from entering the ventilation system.

Filters

In the standard model, the exhaust grilles are equipped with stainless steel metal mesh fluff separators. The standard mesh size is 0.2 mm.

There are several exhaust grille options:

  • Grilles with or without metal mesh filter
  • Two grilles (bottom and top), or one grille (bottom)
  • Painted or not painted duct

Note
Although the duct is painted it has to be covered with a wall construction.


Fig.1. Metal mesh fluff separtor

Installation

The exhaust grille is connected to the exhaust air ductwork. Wall or ceiling installations are possible.

The installation is typically performed by the ventilation contractor.

Key:
1.   Wall construction
2.   Exhaust grille
3.   Fixing knob
4.   Air duct
5.   L-shape fixing bracket

Note: See the sizes for the required installation holes from the Dimensions section.

Servicing

Detach the perforated grille (2)  by opening the screws (1).  Wipe the grille with a damp cloth. Do not immerse in water.

The grille can also be sterilised in an autoclave (t < 130°).

It is recomended to vacuum the metal mesh fluff separator (3) behind the grille regulary. It does not need to be removed for vacuuming.

Reassemble the grille and the srews.

Key:
1.    Screw (2 pcs)
2.    Exhaust grille
3.    Metal mesh fluff separator
4.    Frame for grille
5.    L-shape fixing bracket

Order Code

VSG-W-H, AF-ZT

W = Width (mm)
400, 500,600

H = Height (mm)
200, 250, 400, 500, 600

Other options and accessories

AF =  Air filter
A      Metal mesh fluff separator (stainless steel, AISI 316)
N      No filter

ZT = Tailored product
N      No
Y      Yes (ETO)

Code example

VSG-400-200,AF=A, ZT=N
