Product / KVE-WW-UV

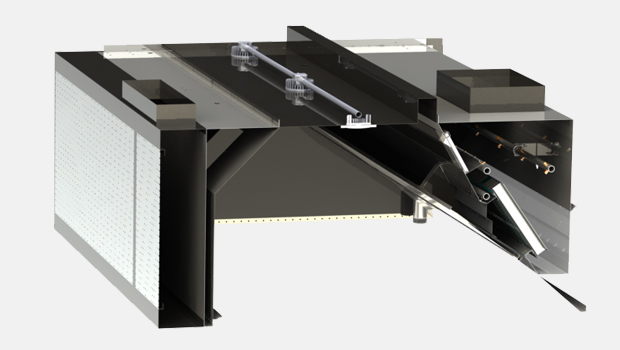

KVE-WW-UV – Capture Ray™ UV water wash exhaust hood (UL)

With Capture Jet™ Technology

UL Listed – Halton’s KVE-WW-UV Capture RayTM  exhaust hoods are based on Halton’s patented Capture JetTM solution, advanced mechanical KSA filter technology, a UV-C system for the mitigation of grease generated in the cooking process and water wash technology that washes down the grease filters automatically – all of which mean clean ducts and improved fire safety.

Request a Quote

Overview

  • Integrated Capture Ray™ Ultraviolet cassette(s) with complete controls and safety features.
  • Automatic Water Wash features allow for continuous operation without extended shut down for cleaning.
  • Highly efficient Capture JetTM technology reduces the  exhaust airflow volume required.
  • Heat load design method.
  • ASTM 1704 validated performance.
  • Easy access to UV cassettes for maintenance.
  • Stainless steel Model KSA ‘Multi cyclone’ high efficiency grease filters – UL and NSF classified.
  • T.A.B.™ (testing and balancing) ports, which allow accurate and effective commissioning.
  • UL listed Control Panel for UV operation.
  • Stainless steel welded construction.
  • Standard LED light fixtures.
  • Optional LED dimming is available for Capture Jet hoods. Dimming is control by a knob on the switch panel or through Halton HMI Touch Screen.
  • Stainless steel, welded design.

RECOMMENDED COMBINATIONS
The technologies and features integrated in the KVE-WW-UV hood can be combined with the following technologies or products to further improve the Energy Efficiency, Safety, Indoor Environment Quality (IEQ) or Emission Control levels.

Further increase the energy savings and improve the working conditions of the staff
Go for M.A.R.V.E.L. energy saving technology for kitchens ventilation

Establish your kitchen wherever you chose and increase once more the energy savings
Go for PolluStop pollution control unit.

Get peace of mind by making no compromise on fire safety
Go for the factory pre-installed FSS Fire Suppression System

Optimize the ductwork cleaning costs and further improve your safety
Go for KGS grease deposition level monitoring system for ductwork

Specificaiton

Water Wash

The hood shall include three full length wash manifolds equipped with brass spray nozzles. When the wash cycle is initiated, the exhaust fan shall shut off. The wash sprays shall come on for the length of time programmed in the control panel. The two forward manifolds shall wash the interior and exterior of the grease extractor. All controls and components for operation of the water wash system shall be housed in the Ventilator Control Cabinet.

Capture RayTM (UV Technology)

The KVE-WW-UV hood is a highly efficient kitchen ventilation solution. Equipped with Capture Ray™ technology this hood provides solutions for a variety of commercial food service ventilation applications over virtually any cooking process.  Based on Halton’s patented highly efficiency Capture JetTM solution and advanced mechanical KSA filter technology, the Capture Ray™ feature with scheduled maintenance keeps the plenum and duct virtually grease-free and mitigates the cooking odor and emissions

Options

  • Closure Panels – for canopies below ceiling level
  • Backsplash
  • Side Skirts
  • KFR – Filter Removal Tool
  • LED Dimmable Lighting
  • Recessed Fluorescent or Incandescent Lighting
  • Incandescent Globe Type Lights
  • MEP – Master Electrical PanelsFace or Remote Mounted Switch Panels
  • Factory Prepiped Fire Protection
  • Powder Coating in a Variety of Colors
  • Custom/Design Stainless Steel Exterior Textures and Finishes
  • Listed Exhaust Duct Balancing Damper
  • Hood Mounted Fire Cabinet
  • M.A.R.V.E.L. Demand Control w/VFD by Halton
